Industrial PC integrated Core i7 / i3 / Celeron CPU into a compact and rugged enclosure with an -20°C ~ 70°C extended working temperature. has two DisplayPort video output, 8 isolated COM ports and 10 to 35V DC wide range power input.
Loading...
17 inch monitor keyboard drawer - front view

KD9150H

PC8157

PC8157

FES8730

  • Aluminum alloy rugged micro box
  • Fan less embedded system
  • Core i7 / i3 / Celeron processor
  • Extended working temperature range from -20°C to 70°C
  • Dual DisplayPort video out port, dual LAN and 8 isolated COM ports
  • 2 internal PCI Express Mini Card slots
  • Wdie Range 10V to 35V DC power input
$1,375.00
Availability: In stock
SKU
FES8730
Email
Fan less embedded computer with Core i7 / i3 / Celeron processor, dual DisplayPort video out put and 2 internal PCI express mini card slots, has 6 USB and 8 isolated COM ports and rugged aluminum chassis with extended -20 to 70 degree C working temperature.
Construction
Aluminum extrusion and heavy-duty steel, IP40
Embedded board
CPU Type: Core i7-2610UE / i3-2340UE / Celeron-B810 processor
Chipset: QM67 chipset
Memory: DDR3 1066/1333 SODIMM x 2, Max. 16 GB
Watchdog time: programmable WDT from 1 to 255 seconds
Video input
DVI-I video input
Expansion slot
2 x PCIe Mini Card expansion slots
2 x SIM slots
Drive bay
1 x 2.5 inch SATA hard drive or SSD
1 x CFast
I/O Port (standard)
8 x COM ports, 8 for RS-232/422/485
6 x USB ports, 4 for USB 2.0, 2 for USB 3.0
2 x Ethernet ports, 10/100/1000Base-TX
1 x DVI-I
2 x DisplayPort
1 x Audio (Mic-in/Line-out)
8 x isolated DI/DO
1 x SMA type connector and opening for antenna
1 x VDC power input connector
1 x ATX power switch
Front panel control
LED indicator for power and hard drive
Power supply
10 ~ 35 VDC
Option for AC power kit
System Support
Windows XP / 7 Embedded, WES, WES 8, Linux

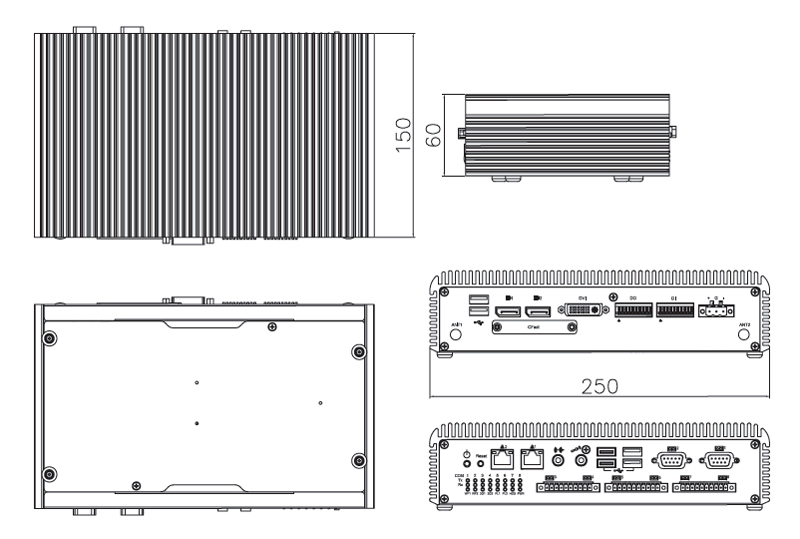

Dimension
9.84"(W) x 2.36"(H) x 5.9"(D)
Weight
8.37lbs
Color
Silver-Black
Environmental
Operating Temperature: -20°C ~ 70°C (-4°C ~ 158°C)
Storage Temperature: -20°C to 80°C (-4°C ~ 176°C)
Humidity: 10~90%, non-condensing
Vibration: 3G, 5~500Hz, X,Y,Z directions
Certification
CE

FES8730
Fanless embedded system, Core i7 / i3 / Celeron CPU, 2 x up to 16GB DDR3-1066/1333 DIMM memory, 8 COM, 6 USB, 1 x 2.5 inch SATA HDD, 2 x internal PCIe Mini Card slots, DVI-I display, silver-black color.
Price strat from: $1,375.00

Document
Description
Download Link
file iconFES8730-DATA.pdf
Data Sheet
file iconFES8730-DIM.pdf
Dimension
file iconFES8730-UM.pdf
User Manual
  • FES8730
    Fan less embedded computer
    Celeron 1.6GHz CPU
    Option for Core i3-2340UE 1.3GHz and Core i7-2610UE 2.4GHz CPU
    2GB SODIM memory up to 16GB
    250GB hard drive
    DVI + Dual displayPort video out ports
    8 isolated COM ports
    2 Mini PCI express slots
    Option for mounting bracket
    Steel case with aluminum heat sink
    10 to 35VDC power input option for external AC adapter
    -20 to 70 degree C working Temperature
    Starting at:
    $1,375.00
FES8730
$1,375.00

Construction

On board system
  The embedded system is powered by Core i7 / i3 / Celeron processor with an extended operating temperature range of -20°C to 70°C (with SSD storage device). It supports dual DisplayPort plus DVI video output ports, dual Gb Ethernet LAN, eight isolated COM RS-232/422/485 ports, four USB 2.0 ports and two USB 3.0 ports. Wireless module connectivity is supported via the PCIe Mini Card slot.
Storage device
The industrail PC comes with 1 x 2.5 inch SATA HD and 1 x front access CF slot.

Expansion slots
 Embedded computer provide 2 x internal PCI Express Mini Card slot and 2 x SIM slots for expansion.
Power supply
The fan less industrial PC supports a wide range 10 to 35V DC power input with ATX power function. Option for external AC power adapter.

Mounting
Optional wall mount bracket for different auto control applications

References
What is an embedded computer?
An embedded system is a computer system that includes a specific function within a larger computerized system.
