Fan less embedded system comes with Core 2 Duo processor, 2.5" HD, Dual LAN, Audio, 2 PCI-E expansion slots and 4 COM/USB ports. The rugged aluminum alloy chassis designed for wide range operation temperature (under freezing point), anti-vibration and 50G shock working environment.
Loading...

FES6940

  • Aluminum alloy rugged micro box
  • Fanless embedded system
  • Intel Core 2 Duo Processor
  • Built-in 2.5" SATA HD
  • 1 x PCI-E(x1) & 1 x PCI-E (X16) expansion slot
  • Wide range working temperature (14°F ~ 122°F)
  • External 110/220VAC power adapter
$1,625.00
Availability: In stock
SKU
FES6940
Email
Fan less embedded box, Core 2 Duo 2.26GHz system, 120GB HD, 2GB DDR-III memory & 2 x PCI-E (x1+x16) slots. Aluminum alloy chassis (9.9" x 4.1" x 9.4”). -10 to 50 degree C working temperature.
Construction
Rugged aluminum alloy chassis
Embedded System
CPU Type: Intel Core 2 Duo 2.26/2.53GHz processor
Memory: DDRIII SODIMM x 2, Max. 4 GB
Expansion slot:
2 x PCI-Express [x16 + x1), standard
1 x PCE-Express[x1] / 1 x PCI, optional
1 x Mini card,
1 x Express card
Driver Bays: 1 x 2.5" SATA HD Drive bay
I/O Port
Serial port: 4 x COM
Com1/3/4:RS-232, Com2:RS-232/422/485
USB: 4 x USB2.0
LAN: 2 x RJ-45, 10/100/1000Base-TX
Audio: Line-in, Line-out, Mic-in by an extension cable
VGA/Keyboard/Mouse:
1 x VGA, 1 x PS/2 for Keyboard/Mouse
I/O Layouts
4 x COM
2 x RJ-45 for 10/100/1000 Ethernet
4 x USB 2.0 connector
1 x Line-in/Line-out/Mic-in port
1 x VGA port
1 x PS/2 for Keyboard & Mouse
1 x Power On/Off Switch
1 x Power input
1 x Reset button
Expansion Slot
2 x PCI-E/PCI Slots
1 x PCMCIA Slot
1 x CompactFlash Slot
System LED Indicator
1 x Power LED
1 x HDD LED
Power Supply
1. DC input:
Internal DC-DC converter
Input voltage: DC 9-30V
2. AC input:
External power adapter (Optional)
Input voltage: AC 100~240V@50~60Hz
System Support
Windows XP pro for Embedded, Windows XPE, Linux, Vista, Windows 7
Color
Mustard
Mounting Wallmount

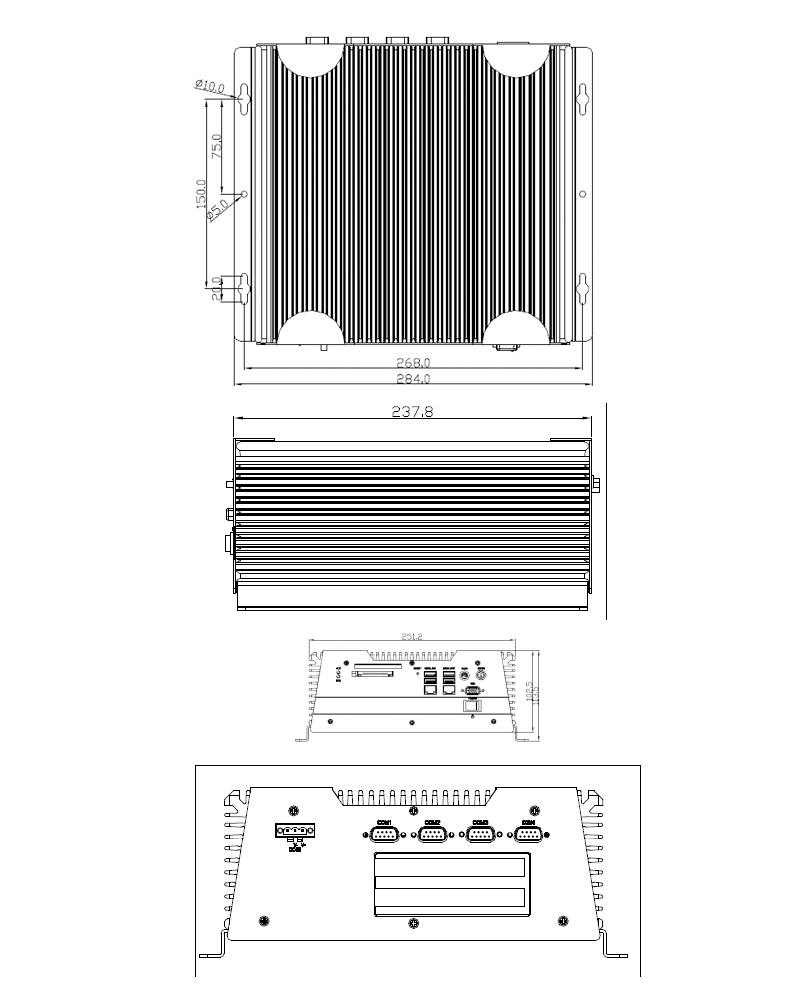

Dimension
9.9"(W) x 4.1"(H) x 9.4"(D)
Weight
22lb
Environmental
Operating Temperature:
-15 °C ~ 55°C (CompactFlash w/ RAM x 1)
-10°C ~ 50°C (HDD w/ RAM x 1)
Storage Temperature: -20°C to 70 °C
Humidity: 5~95% @ 40 °C, non-condensing
Vibration:
5g rms/5 ~ 500Hz/operation (CFD)
1g rms/5 ~ 500Hz/operation (HDD)
Shock: 50G peak acceleration (11ms duration)
EMC: CE/FCC

FES 6940:
Fan less embedded system, Core 2 Duo 2.26GHz CPU, 2GB DDR-III memory, 120GB HD & 2 x PCI-E expansion slots. Wall mount ready.
Price:$ 1625.00


Document
Description
Download Link
file iconFES_6940-data.pdf
Data Sheet
  • FES6940
    Fan less embedded box
    Core 2 Duo 2.26GHz system
    120GB HD, 2GB DDR-III memory
    2 x PCI-E (x1+x16) slots
    Aluminum alloy chassis (9.9" x 4.1" x 9.4")
    -10 to 50 degree C working Temp.
    Starting at:
    $1,625.00
FES6940
$1,625.00

Construction :
  Compacted rugged fanless micro box has an aluminum die-casting heatsink and a heavy-duty alloy construction. The small form factor embedded box is designed for industrial applications like POS, transportation, control, surveillance and more. It provides high reliability and noiseless performance in harsh environments.

On Board System :
  The embedded system is powered by a Core 2 Duo (2.26GHz, up to 2.53 GHz) processor. It comes with the features of the standard motherboard with a fanless design function. It comes with a 2.5" slim-type SATA hard drive, 2 x DDRIII SODIMM memory (Max. 4 GB), watchdog timer, 4 x RS-232 ports, 4 x USB ports, Daul Gigabit LAN, Audio and VGA. The all-in-one fan less system provides wide working temperature range from 14oF to 122oF (-10oC ~ 50oC) and operation vibration at 1G rms 5 to 500Hz.

Storage Device :
The system comes with a standard 2.5" SATA HDD and aCompact Flash slot.

Expansion Slots :
We provide 1 x PCI-E(x1) slot, 1 x PCI-E(x16) slot, 1 x Mini card, 1 x express card and 1 x PCMCIA for the expansion. Optional for 1 x PCI and 1 x PCI-E expansion slots

Power Supply :
  The fanless industrial PC uses the industry-grade Phoenix type or DC-jack power connector plug, and supports a 9VDC to 30VDC power supply with ATX power function. Optional: 100/220VAC 50/60z external AC power adapter.

Mounting :
Fanless embeddd system can be wall mount.
