Fanless embedded PC powered by the Intel Celeron G3900TE 2.3GHz Dual-Core CPU supporting DDR4 memory up to 32GB, 128GB SSD. The embedded computer features two removable 2.5 SATA drive bays, dual LAN, 2 x COM ports, 6 x USB 3.0 ports, 2 x USB 2.0 ports, and a 9 to 48VDC wide range power input.
31.5

PMW6315

2U 17.3

RPM-4K17-2

FES6000

  • Fanless embedded computer
  • Intel Celeron G3900TE 2.3GHz dual-core CPU
  • Option for 7th Gen. Intel Core i7-7700T / i5-7500T / i3-7101TE CPU
  • Triple independent display supported by 1 x DVI-I & 2 x DP
  • 2 x 2.5" removable & 2 x 2.5" internal SATA HDD bay
  • 2 x COM, 6 x USB 3.0, 2 x USB 2.0, 2 x RJ45 LAN
  • 8 x isolated DI + 8 x isolated DO
  • -25°C to 70°C wide range working temperature
  • Wide range 9~48V DC power input supporting AT/ATX mode
Availability: In stock
SKU
FES6000

Fanless embedded PC with Intel Celeron G3900TE Dual-Core CPU, 8GB memory, dual removable 2.5" HDD drive bay, and a wide range 9~48V DC power input.

Construction
Aluminum with heavy-duty metal
System
CPU: Intel Celeron G3900TE 2.3GHz, Dual Core
Option for 7th Gen. Intel Core i7-7700T / i5-7500T / i3-7101TE CPU
Chipset: Intel Q170 Express Chipset
Memory: 2 x 260-Pin DDR4 SODIMM, Max. 32GB
LAN: Intel I210-AT (GbE1),
Intel I219LM (GbE2)
BIOS: AMI 128Mbit SPI BIOS
Watchdog: Software Programmable Supports 1~255 sec. System Reset
Storage
2 x internal 2.5" SATA HDD Bay
2 x removable 2.5" SATA HDD Bay
Support RAID 0, 1, 5, 10
Video Port
1 x DVI-I + 2 x Display Port
Triple independent display support
Expansion Slot
4 x full-size mini PCIe expansion slots
I/O Ports
2 x RS-232/422/485
2 x RS-232/422/485 (internal)
6 x USB 3.0, 2 x USB 2.0
2 x RJ45 LAN
1 x Mic-in, 1 x Speaker-out
8 x DI / 8 x DO (Isolated)
6 x WiFi antenna holes
1 x Power switch, 1 x AT/ATX switch
1 x Remote power on/off
Mounting
Wall mounting
Power Supply
9~48VDC wide range power input supporting AT/ATX mode
3-pin terminal block power connector
Option for external AC power adapter
Weight
9.63 ~ 11.49 lb / 4.37 ~ 5.21 kg

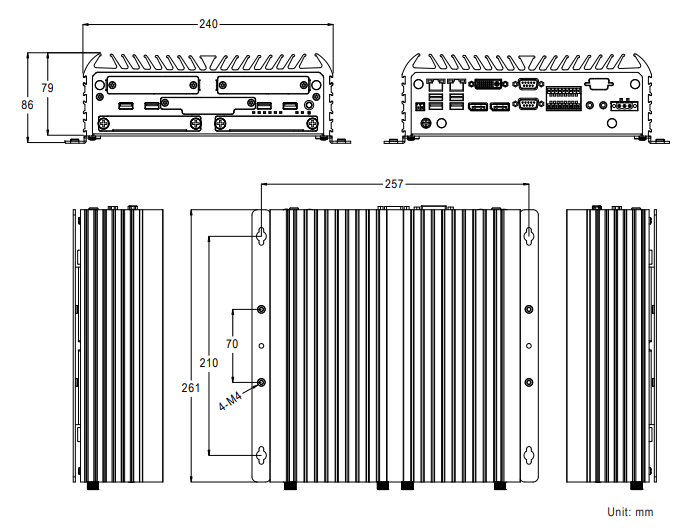

Dimension
9.45"(W) x 10.28"(D) x 3.11"(H)
Environmental
Operating Temperature: -25°C to 70°C
Storage Temperature: -30°C to 85°C
Relative Humidity: 10~95%, non-condensing
Vibration: With SSD: 5Grms, 5~500Hz, 0.5 hr/axis
Shock: With SSD: 50G, half sine, 11ms
Operating System
Windows 10 QNX 6.6 / 7.X compatible
Safety
CE, FCC

FES6000:
Fanless embedded system with LGA 1151, Intel Celeron G3900TE 2.3GHz CPU, 4GB memory, 128GB SSD, 2 x COM, 6 x USB 3.0, 2 x USB 2.0, 2 x RJ45 LAN, 16-bit DIO, wide range 9 to 48V DC power input.
