Embedded PC integrated Atom Z510 1.1GHz low power consumption CPU into a compact and rugged enclosure with fan less cooling system. has one VGA video output, 1 x COM port and 100-240V AC wide range power adapter..
Loading...
FES5530

FES5530

42

PMH9420

FES5510

  • Aluminum alloy rugged micro box
  • Fan less embedded system
  • Ultra slim and power-efficient design
  • Atom Z510 1.1GHz processor
  • Extended working temperature range from 0°C to 50°C
  • VGA video out port, 4 USB and 1 COM port
  • Wdie Range 100~240V AC power input
$560.00
Availability: In stock
SKU
FES5510
Email
Embedded computer powered by Atom Z510 1.1GHz CPU and fan less PC cooling system, has 4 x USB, 1 x COM port, VGA and ultra slim enclosure with external power adapter. Option for Din rail and VESA mounting kit.
Construction
Aluminum extrusion and heavy-duty steel, IP40
Embedded board
CPU Type: Atom Z510 1.1GHz processor
Chipset: US15W core logic chipset
Memory: 200-pin DDR2 SODIMM x 1, Max. 2 GB
Watchdog time: programmable WDT from 1 to 255 seconds
Video input
VGA video input
Drive bay
1 x CompactFlash
I/O Port (standard)
1 x COM ports, 1 for RS-232
4 x USB ports, 4 for USB 2.0
1 x Ethernet ports, 10/100/1000Base-TX
1 x VGA
1 x PS/2 keyboard/mouse
1 x Audio (Mic-in/Line-out)
1 x VDC 5V power input connector
Front panel control
LED indicator for power and hard drive
Power supply
input: AC 100-240V, AC 25W adapter with lock
output: DC 5V@5A
System Support
Windows XP Embedded, WinCE, Linux

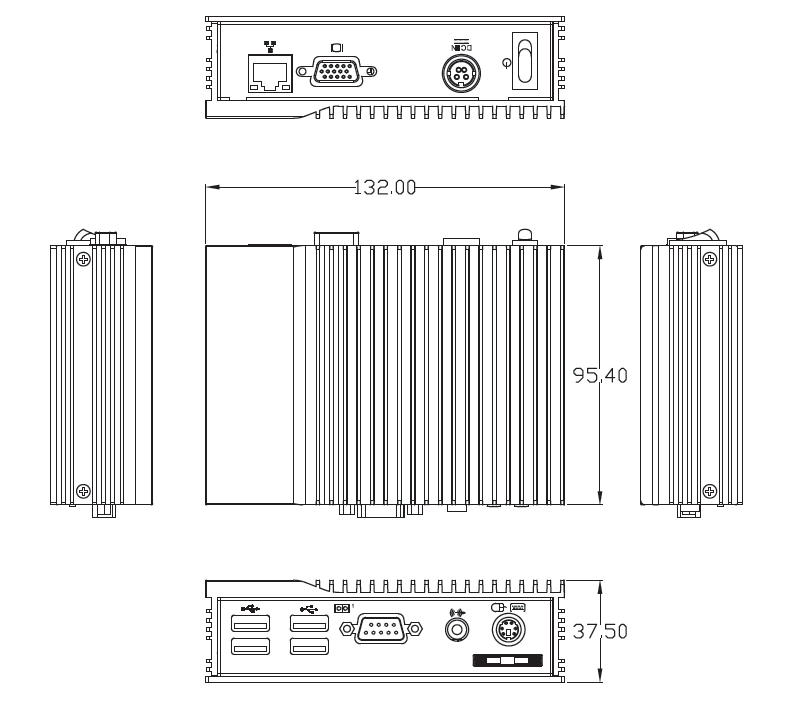

Dimension
5.19"(W) x 1.47"(H) x 3.75"(D)
Weight
1.06lbs
Color
Silver-Black
Environmental
Temperature
Operation: 0°C ~ 50°C (32°C ~ 122°C)
Storage: -20°C to 80°C (-4°C ~ 176°C)
Humidity: 10~90%, non-condensing
Certification
CE

FES5510
Fanless embedded system, Atom Z510 1.1GHz CPU, up to 2GB DDR2 SODIMM memory, 1 COM, 4 USB, 1 x CompactFlash, VGA display, silver-black color.
Price strat from: $560.00

Document
Description
Download Link
file iconFES5510-DATA.pdf
Data Sheet
file iconFES5510-DIM.pdf
Dimension
file iconFES5510-UM.pdf
User Manual
  • FES5510
    Fan less embedded computer
    Atom Z510 1.1GHz fan less CPU
    2GB SODIM memory
    250GB hard drive
    VGA video out ports
    1 COM and 4 USB ports
    Option for Din rail or VESA mount
    Ultra slim enclosure with aluminum heat sink
    External 110/220V AC power adapter
    0 to 50 degree C working Temperature
    Starting at:
    $560.00
FES5510
$560.00

Construction

On board system
  The embedded system is powered by Atom Z510 1.1GHz processor with an extended operating temperature range of 0°C to 50°C (with SSD storage device). It supports VGA video output ports, Gb Ethernet LAN, one COM ports (1 for RS-232) and four USB 2.0 ports.
Storage device
The industrail PC comes with 1 x CompactFlash.

Power supply
The fan less industrial PC supports a wide range 100-240V AC power input with 25W AC power adapter.

Mounting
Optional din rail kit and VESA mount kit for different auto control applications

References
What is an embedded computer?
An embedded system is a computer system that includes a specific function within a larger computerized system.
