Industrial computer integrated Atom D525 1.8GHz CPU into a compact and rugged enclosure with an -20°C ~ 60°C extended working temperature. has VGA input and 12V or 24V DC power input with RTC alarm power on function. It mounted securely with integrated mounting bracket for automation control applications.
Loading...
FES2215 Front View

FES2215

FES2230

FES2230

FES2217

  • Aluminum alloy rugged micro box
  • Fan less embedded system
  • Atom D525 Dual-Core 1.8GHz Processor
  • Extended working temperature range from -20°C to 60°
  • VGA display port
  • Dual LAN and 3 COM port
  • 12 or 24 VDC power input with AT or ATX power type
$650.00
Availability: In stock
SKU
FES2217
Email
Fan less embedded computer with Atom D525 Dual-Core 1.8GHz CPU, VGA port, 3 COM port, 1 Mini PCI Express expansion slot, has rugged aluminum chassis and extended -20 to 60 degree C working temperature.
Construction
Rugged aluminum enclosure
Embedded board
CPU Type: Atom D525 1.8GHz Dual Core fan less processor
Chip set: ICH 8-M south bridge chipset
Memory: 2 x DDR-III SODIMM socket, Max. 4 GB
Watchdog time: programmable WDT from 1 to 255 seconds
Graphic
Graphic Media Accelerator 3150
Support Pixel Shader 2.0 and DirectX 9
Video input
Video input: VGA for independent video outputs
support 1920x 1200 and 1080P display resolution
Drive bay
1 x 2.5 inch drive bay for SATA hard drive or SSD
Front panel control
LED indicator for power and hard drive
Power on/off and system reset buttons
I/O Port (standard)
3 x COM port, 3 for RS-232/422/485
4 x USB2.0
2 x RJ-45 Ethernet ports, 100/1000Base-TX
2 x Audio port: Line-out, Mic-in
2 x PS/2 port for Keyboard and mouse
I/O ports (option)
3 RS 232 COM port or 2 x RS 232 COM port with 1 x digital I/O
1 x DB-25 for LPT port
Power supply
DC 12V or 24V input with RTC alarm power on function
12 VDC/2.5A, 24VDC/1.25A, AT / ATX power type
Power adapter: AC to DC, DC 12V or 24V 60W (Option)
Power consumption (with HD): typical 23W, Max 28W
System Support
Windows XP, Linux, Windows 7
Mounting
Integrated mounting bracket for Desk or Wall mount

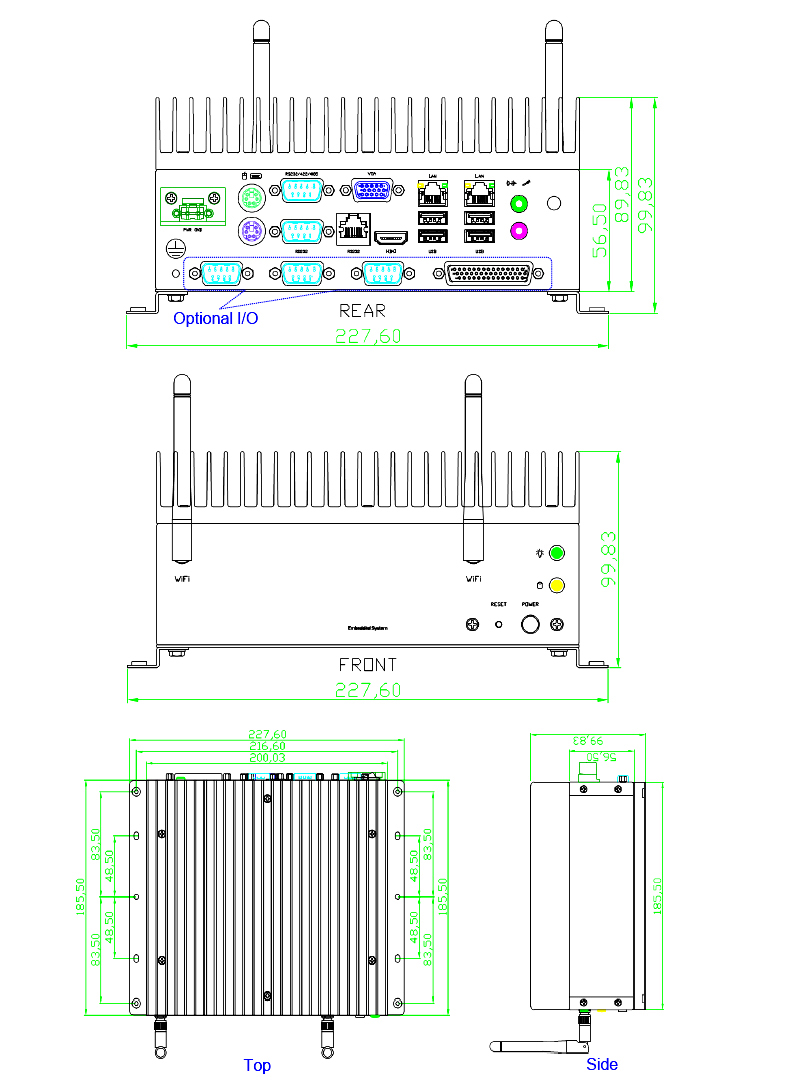

Dimension
7.87"(W) x 5.34"(H) x 7.30"(D)
Weight
9.68lb
Environmental
Operating Temperature: -20 °C ~ 60°C (SSD)/-20°C ~ 60°C (HDD)
Storage Temperature: -40°C to 85 °C
Humidity: 10~90%, non-condensing
Certification
CE / FCC Class A

FES 2217:
Fan less embedded system, Atom D525 Dual Core 1.86GHz CPU, up to 4GB DDR-III memory, 2.5 inch Hard drive bay and VGA display.
Desk top or Wall mount ready.

Price:$650.00

Document
Description
Download Link
file iconFES2217-DATA.pdf
Data Sheet
file iconFES2217-DIM.pdf
Dimension
file iconFES2217-UM.pdf
User Manual
  • FES2217
    Fan less embedded computer
    Atom D525 1.8GHz CPU
    2GB SODIM memory
    250GB hard drive
    VGA video out port
    wall mount ready
    Steel case with aluminum heat sink
    12VDC power input with AC adapter
    -20 to 60 degree C working Temp
    Starting at:
    $650.00
FES2217
$650.00

Construction

On board system
  The embedded system is powered by Atom D525 Dual Core 1.8GHz processor. It comes with the features of the standard motherboard with fan less design function. It comes with a 2.5 inch slim-type SATA hard drive, 2 x DDRIII SODIMM memory (Max. 4 GB), watchdog timer, 3 x RS-232 ports, 4 x USB ports, dual Gigabit LAN, Audio and VGA. The all-in-one fan less system provides wide working temperature range from -4oF to 140oF (-20oC ~ 60oC).
Storage device
The system comes with a standard 2.5 inch SATA HD.Power supply
The fan less industrial PC uses the industry-grade Phoenix type or DC-jack power connector plug, and supports a 12VDC or 24VDC power supply with ATX power function.
Mounting
Fan less embedded system can be desk or wall mount.

References
What is an embedded computer?
An embedded system is a computer system that includes a specific function within a larger computerized system.
