Fanless Edge AI computer powered by the NVIDIA Dual Core CPU comes with LPDDR4 128-bit 8GB memory, 1 x RJ45 GigaLAN, 1 x HDMI, 2 x USB, and -20° to 70°C wide range working temperature. Option for Bluetooth and 9 to 36V DC power input.
Fanless Edge AI Computer with the Intel Apollo Lake CPU

FEC8016

Fanless Compact Embedded PC w/ NVIDIA RTX 3000 Graphic Card & Intel 9th Gen. Core i7-9700TE CPU - FES9281-CU02

FES9281-CU02

FEC8018

  • High performance fanless Edge AI computer
  • NVIDIA Dual Core Denver 2 CPU
  • LPDDR4 128-bit 8GB memory
  • AI Deep Learning Accelerators
  • Edge AI Solution
  • Linux Jetpack OS
  •  -20°C to 70°C extended working temperature
Availability: In stock
SKU
FEC8018
Edge AI computer with the NVIDIA Dual Core CPU, fanless cooling system, wide range working temperature of -20°C to 70°C, and DC power input.
Material
Heavy-duty steel
Embedded Board
CPU: Nvidia Dual Core Denver 2 64-bit quad-core ARM A57 complex
Chipset: Nvidia Pascal 256 CUDA cores
Memory: LPDDR4 128-bit 8GB
Storage: eMMC 5.1 64GB, option for 128GB
Ethernet: Gigabit LAN
Video: 1 x HDMI 2.0
WiFi
802.11 ac WLAN
Option for bluetooth 4.1
Front Panel Control
LED indicator for power and hard drive
I/O Interface
1 x RJ45 GigaLAN
1 x RS232
1 x RS422/485 (option)
1 x HDMI
2 x USB 2.0
1 x GPIO
1 x Power Button
1 x Phoenix Type Power Connector
OS
Linux Jetpack
Power Supply
12V ~ 19V DC power input
Consumption: 60W
Option for 9~36V DC input
Weight
4.41 lb / 2.0 kg

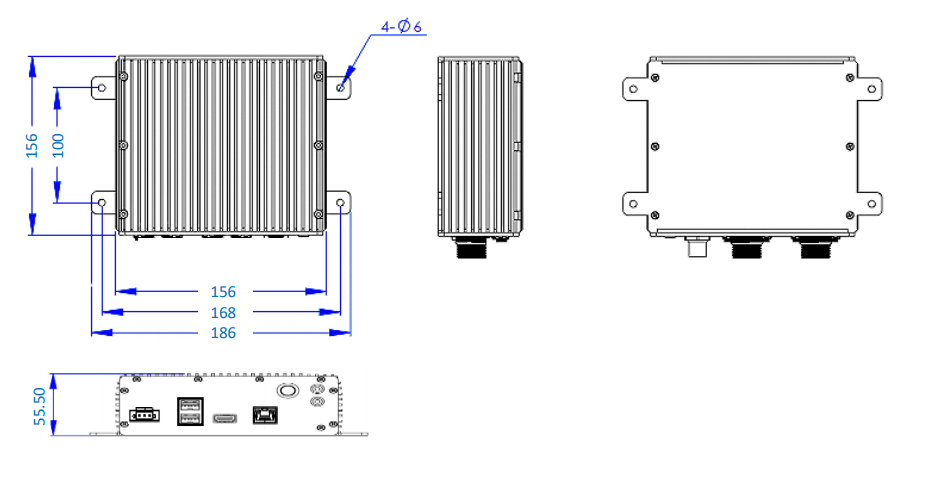

Dimension
8.89"(W) x 6.14"(D) x 2.16"(H)
Environmental
Operating Temperature: -20°C ~ 70°C
Storage Temperature: -40°C ~ 80°C
Operating Humidity: 5 ~ 95%, non-condensing


FEC8018:
Fanless edge AI computer, Nvidia Dual Core CPU, LPDDR4 128-bit 8GB memory, Linux Jetpack OS, -20°C to 70°C extended working temperature, DC power input.

Document
Description
Download Link
file iconFEC8018- SP.pdf
Spec Sheet
