Ultra-slim fanless embedded computer powered by Celeron N3350 1.1GHz CPU comes with 8GB DDR3L memory, 1 x 2.5" SATA SSD, 1 x full-size mSATA slot, dual LAN, 6 x USB, 4 x COM, 1 x VGA, 1 x DP, and 12V DC power input. Option for external AC power adapter.
Fanless Embedded PC with Intel Celeron J3455 1.5GHz CPU - FES8097

FES8097

Fanless Embedded PC with Intel Core i CPU - FES8099

FES8099

FES8098

  • Ultra-slim fanless embedded computer
  • Intel Celeron N3350 1.1GHz dual-core CPU
  • 4GBDDR3L SO-DIMM memory (Max. 8GB)
  • Dual LAN, 6 x USB, 4 x COM ports, 1 x VGA, 1 x DP
  • Supports 1 x 2.5" SSD & 1 x full-size mSATA slot
  • VESA (75 x 75mm) mounting holes
  • 12V DC power input, option for power adapter
  • Option for Windows 10 Pro OS
$695.00
Availability: In stock
SKU
FES8098

Fanless embedded PC with Celeron N3350 1.1GHz CPU, dual LAN, 6 x USB, 4 x COM ports, 1 x VGA, 1 x DP, and 12V DC power input in an ultra-slim rugged enclosure.

Construction
Ultra-slim fanless rugged enclosure
System
CPU: Celeron N3350 1.1GHz dual-core
Memory: 4GB DDR3L SO-DIMM, Max. 8GB
Storage: 1 x 2.5" SATA III SSD
Expansion Slot
1 x full-size mSATA slot (with SATA & USB signal)
1 x full-size mPCIe slot (with PCIe & USB signal)
Front I/O Port
2 x USB 2.0
2 x RS-232 (COM1 / COM3)
1 x RS-232/422/485 (COM2)
1 x Power LED, 1 x HDD LED
1 x Power Button
Rear I/O Port
4 x USB 3.0
1 x RS-232 (COM4)
1 x VGA, 1 x DP
2 x LAN by Intel I210
1 x line-out
1 x 3-pin DC terminal block (lockable)
Power Supply
12V DC power supply
Option for external power adapter
Weight
4.41 lb / 2 kg

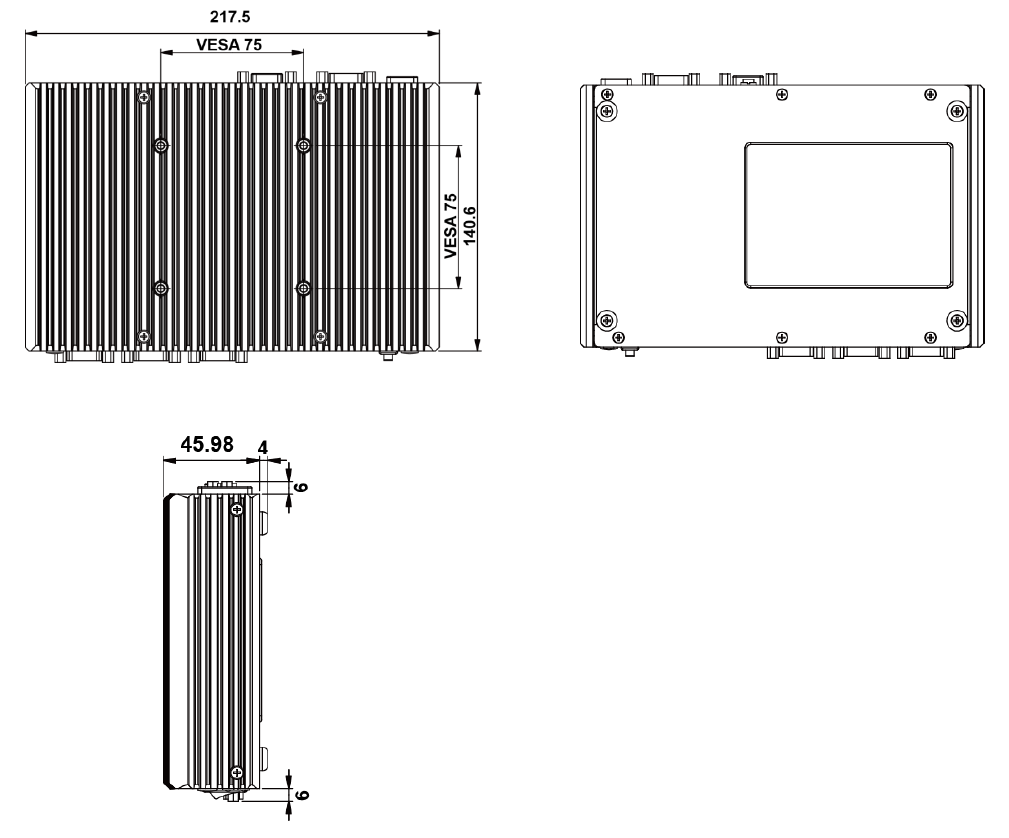

Dimension
8.56"(W) x 1.77"(H) x 5.83"(D)
Mounting
VESA (75mm) mounting holes on top
Environmental
Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to 85°C
Humidity: 20% ~ 90%
Compliance
CE, FCC

FES8098:
Fanless embedded PC, Intel Celeron N3350 CPU, 4GB memory, 120GB SSD, 2 x LAN + 6 x USB + 4 x COM ports + VGA + DP + line-out, and 12V DC power input.
Lead Time: 1 week

Document
Description
Download Link
file iconFES8098-SP.pdf
Spec Sheet
