Sunlight readable open frame panel mount monitor with a 19 inch 1440 x 900 widescreen 1000-nit high brightness LCD panel, VGA video input, and an open frame metal construction. Option for resistive or capacitive type touch screen and HDMI or DVI video input.
PMH8192
- Open frame metal construction
- 19 inch 1440 x 900 widescreen LCD monitor
- 1000-nit high brightness display
- VGA video port
- Option for DVI or HDMI video input
- Option for Resistive or Capacitive type touch screen
- Wall and VESA (100mm) mount ready
- Auto-sensing 90~260VAC power supply
- Option for 9 to 36V DC power input
Availability:
In stock
SKU
PMH8192
19" 1440 x 900 widescreen 1000-nit high brightness sunlight readable monitor with VGA video input and an open frame metal construction.
- Material
- Heavy duty steel
- LCD Panel
- Size: 19 inch
Max Resolution: 1440 x 900
Brightness (cd/m²): 1000
Contrast Ratio (typ.): 1000:1
Viewing Angle (H/V): 170° x 160°
Active Area (mm): 408.24 x 255.15
Pixel Pitch (mm): 0.284 x 0.284
Colors: 16.7M
Response Time: ≤5 ms
Backlight: LED
MTBF (hrs): 35,000
- Video input
- VGA video input
Option for DVI or HDMI
- Touch screen (option)
- Resistive or Capacitive type touch screen monitor
- OSD Menu Control
- Auto Calibration, Backlight Adjustment, Plug & Play
(VESA DDC/CI, DDC 2B), Multi-Languages
- Mounting
- Wall or VESA mount ready
- Connectors
- 1 x VGA ( 15 pin female D-sub)
1 x PC Audio (Stereo headphone jack)
1 x DC power plug
1 x DVI (option)
1 x HDMI (option)
- Power Supply
- Internal power supply with universal / auto-sensing AC 90 to 260V, 50/60Hz
Power Consumption: 24 watt (operation)
Option for 9 to 36V DC power input
- Weight
- 13.23 lb / 6.0 kg

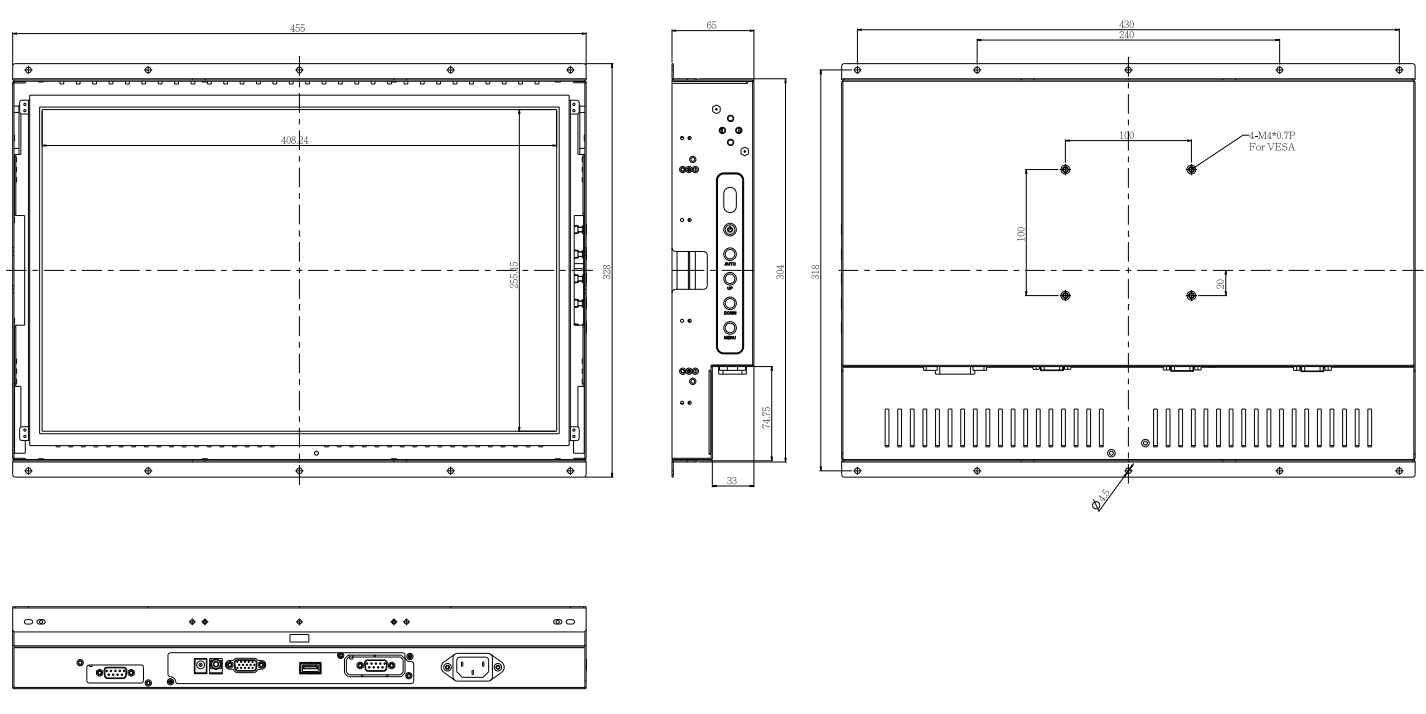

- Dimension
- 17.91"(W) x 2.56"(D) x 12.91"(H)
- Environmental
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Relative Humidity: 10~90%, non-condensing
- Certification
- FCC, CE
PMH8192:
19 inch 1440 x 900 1000-nit high brightness industrial widescreen LCD monitor, VGA video input, open fame metal enclosure, Black color. Option for resistive or capacitive type touch screen, DVI or HDMI input, and 9 to 36V DC power input.
Document
Description
Download Link
PMH8192-SP.pdfSpec Sheet
-
