The AP-S2012 is a 12.1-inch rugged military display supporting 1024 x 768 resolution, 1000-nits high brightness, and a front AR protective glass. Designed with a full IP66 rugged enclosure with MIL-STD-810G and 461F testing standards and a wide working temperature range of -30°C to 60°C, the monitor is ideal for harsh working environments. The AP-S2012 features VGA + DVI input, optical bonding, D38999 connectors, and a 9 to 36V DC power input. It has rear VESA (75 x 75mm) mounting holes that allow users to easily mount the display into an enclosure, cabinet, or other applications.
10.4

AP-S2014

7

PM9107-ML

AP-S2012

  • 12.1" 1024 x 768 rugged military display
  • Supports 1000-nits high brightness LCD panel
  • VGA + DVI video input (D38999 connector)
  • AR protective glass & optical bonding
  • Full IP66 water resistant and dustproof enclosure
  • MIL-STD-810G and MIL-STD-461F testing compliance
  • -30°C to 60°C wide working temperature range
  • VESA (75 x 75mm / 100 x 100mm) mounting holes
  • 9~36V DC power input (D38999 connector)
$2,930.00
Availability: In stock
SKU
AP-S2012
12.1" 1024 x 768 rugged military display with 1000-nits high brightness, VGA + DVI input, full IP66 rated enclosure, VESA mount, and MIL-STD-810G/461F testing standards.
Material
Full IP66 rated housing
LCD Panel
Size: 12.1 inch
Max. Resolution: 1024 x 768
Brightness (cd/m²): 1000
Contrast Ratio (typ.): 1000:1
Viewing Angle (H/V): 176° x  176°
Backlight: LED
Colors: 16.2M
LCD Protection
AR protective glass in front
Optical bonding
Video input
VGA + DVI input (D38999 connector)
Panel Control
Brightness Control: 0~100% dimming by OSD buttons
Thermal Control: Heater Board / Heater Film Integrated
Power Protection: Reversed Polarization Protection
OSD Buttons
8 buttons front OSD controller (Including Power On/Off, Menu, Up, Down, Reset)
Mounting Type
VESA (75mm / 100mm) mounting holes
Connectors
1 x VGA port (D38999 connector)
1 x DVI port (D38999 connector)
Weight
6 +/- 0.5 kg

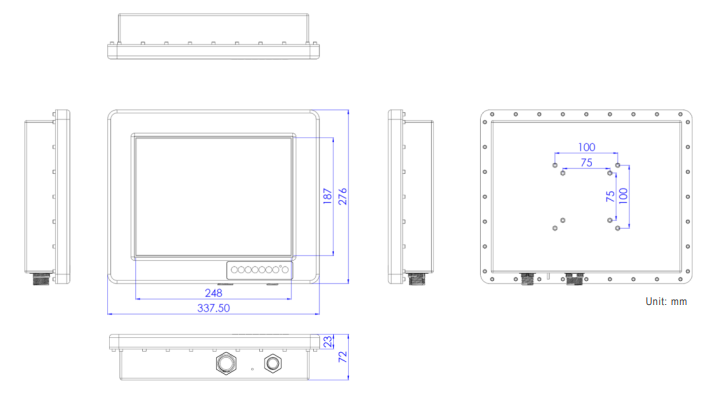

Dimension
13.3”(W) x 10.87”(H) x 2.83”(D)
Power Supply
Power Input: 9~36V (D38999 connector)
Power Consumption: 30 Watts (typical)
Environmental
Operating Temperature: -30°C to 60°C (-25.6°F to 140°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Relative Humidity: 10~95%, non-condensing
Vibration: MIL-STD-810G Method 514.6C-3
Shock: MIL-STD-810G Method 516.6
Humidity: MIL-STD-810G Method 507.5-7
High Temperature: MIL-STD-810G Method 501.5-11
Low Temperature: MIL-STD-810G Method 502.5
EMI Compliance: MIL-STD-461F, CE102, RE102

AP-S2012:
12.1" military-grade display, 1024 x 768 resolution 1000-nit high brightness, VGA + DVI (D38999 connector), AR glass, optical bonding, full IP66 rated enclosure, 9~36V DC power input (D38999 connector), MIL-STD-810G / 461F compliance.

Estimated Lead Time: 12~14 weeks

Document
Description
Download Link
file iconAP-S2012-SP.pdf
Spec Sheet
file iconAP-S2012-UM.pdf
User Manual
