The RP1170 is a 17" rackmount LCD monitor drawer supporting 1280 x 1024 native resolution, VGA + HDMI video input, and a 100/240VAC power input in a 1U high 19.7" (500mm) short-depth rack drawer. The monitor drawer features an LED touch on-screen display (OSD), providing users with a convenient way to the device settings.
RP1195 1U 19

RP1195

RP1170

  • 1U 17" rackmount LCD monitor drawer
  • Supports 1280 x 1024 native resolution
  • Front OSD (on-screen display) function
  • VGA + HDMI video input
  • Option for DVI-D, BNC, Audio, Speaker, or 3G-SDI input
  • Option for Resistive or Projected Capacitive touch screen
  • 19.7" (500mm) short-depth drawer design
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$866.00
Availability: In stock
SKU
RP1170

17" 1280 x 1024 industrial LCD monitor with VGA + HDMI video input, 100/240VAC power input, and a 1U high 19.7" short-depth rackmount monitor drawer.

Material
Heavy-duty steel
LCD Panel
Size: 17 inch
Resolution: 1280 x 1024
Brightness (cd/m²): 250
Contrast Ratio (typ): 1000:1
Colors: 16.7 M
Viewing Angle (H/V): 170° x 160°
Response Time (ms): 5
Dot Pitch: 0.264
Display Area (mm): 337.92H x 270.33V
Surface Treatment: Haze 25%, Hard-coating
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 30,000
Touch Screen (Option)
Resistive 1-point touch screen - USB
Projected Capacitive 10-pt touch screen - USB
Video Input
Standard: VGA + HDMI video input
Option: DVI-D, BNC, S-Video, Audio, Speaker, or 3G-SDI input
Front Panel Controls
Power on/off switch
OSD (On Screen Display) membrane
On Screen Control
Auto-Adjustment for contrast, balance, H-position, V-position, phase, brightness
Mounting Distance
Display Drawer: 20.1 ~ 29.1 inch (510 ~ 740 mm)
Color
Black (RAL 9005)
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption: Max. 22W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input
Weight
23.1 lb / 10.5 kg

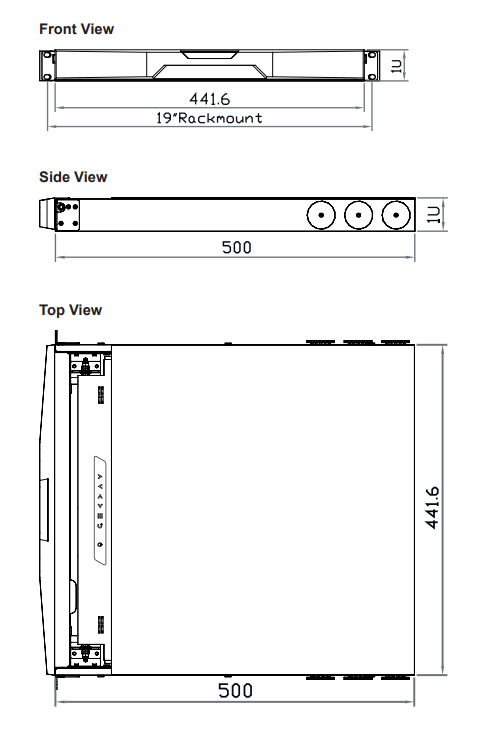

Dimension
Product: 17.4"(W) x 19.7"(D) x 1.73"(H)
Packing: 23.1"(W) x 29.3"(D) x 4.7"(H)
* All dimensions stated are subject to change if options are selected / integrated to base model part codes
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA

RP1170:
17 inch 1280 x 1024 industrial LCD monitor, VGA + HDMI video input, 100/240VAC power input, 1U high 19.7 inch depth rackmount drawer, Black color.

Document
Description
Download Link
file iconRP1170-SP(V1-2).pdf
Spec Sheet
file iconRP1170-UM(V1-2).pdf
User Manual
