2U Rack mount computer designs for GPU and DAQ workstation, The embedded raise card convert mother board's expansion slots horizontally to accept three PCI or PCIe add on card at maximum size of 4" (H) x 9" (D) in the 2U high rack mount enclosure. It use off the shelf standard parts for the best performance and price to meet the customer's requirement.
2U high rack mount computer
17" short depth chassis.
Dual-Core or Quad-Core CPU
ATX mother board
3 x PCI or PCIe full-size expansion slots
1 x 3.5" and 1 x 5.25" open drive bay
3 x 3.5" hidden drive bay
300W 2U ATX power supply
Rack mount computer powered by Core i CPU and ATX M/B with raiser card for 3 x PCI or PCIe full-size expansion slots, has 1 x DVD and 4 x HD bay, 2 x front USB ports, 2U P/S in a 2U high and 17 inch depth rack chassis.
Size: standard ATX or mirco-ATX mother board Dual-Core or Quad-Core processor Memory: 4 x DIMM memory socket, (up to 32GB memory) On-board 100/1000BT LAN, On-board video, Audio SATA connector, USB 2.0 ports, PS/2 ports
1 x 3.5" open drive bay 1 x 5.25" open optical drive bay 3 x 3.5" HD hidden bay
1 x PCI-32 / 1x PCIe x1 / 1xPCIe x16 (std) expansion slots 1 x PCI-32 / 2 x PCI-e x1 (opt) expansion slots 1 x PCI-ex16 / 2 x PCI-e x1 (opt) expansion slots
Front Panel Controls
Power on/off switch System reset button 2 x USB ports
Power, LAN and HDD LEDs
Built-in 0.4W PC speaker
Middle: 2 x 80cm ball-bearing fans Rear: 1 x 80mm fan

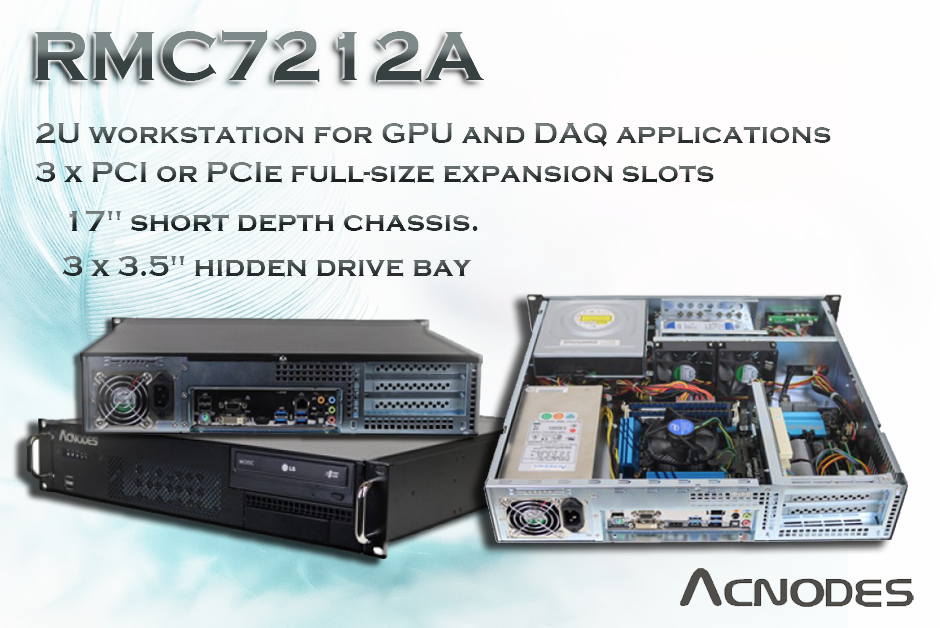

RMC 7212A Rack mount computer, Dual-Core / Quad-Core CPU, ATX or Micro ATX M/B, 1 x SATA HD, DVD, 300W 2U P/S, 2U high & 17" short depth chassis.
First of all, RMC7212A designed as 2U workstation for GPU and DAQ applications. RMC7212A;s expansion slots accommodated the full-size of GPU and DAQ cards into 2U rackmount enclosure. Moreover, the expansion slots can fit off-shelf component with the most current standard. Furthermore, RMC7212A provides the materials of heaty-duty steel cold-rolled steel with black color for the housing. This 2U rackmount computer with 17” short depth chassis offers the CPU from Core i5 through Core i7 to meet customers’ desired. Moreover, RMC7212A presents for selections in memory from 4GB up to 64GB RAM. Furthermore, RMC7212A also comes with on-board 100/1000BT LAN, on-board video, Audio, SATA connector, USB 2.0 ports and PS/2 ports. Additionally, the four hard drive bay includes 1 x 3.5" open drive bay, 1 x 5.25" open optical drive bay, and 3 x 3.5" HD hidden bay.
In additions, Acnodes’ RMC7212A offers 3 x PCI or PCIe full-size expansion slots with configurations. The expansion slot provides selections from 1 x PCI-32 / 1x PCIe x1 / 1xPCIe x16 (std) expansion slots, 1 x PCI-32 / 2 x PCI-e x1 (opt) expansion slots, or 1 x PCI-ex16 / 2 x PCI-e x1 (opt) expansion slots. With the full-size expansion slots 4” x 9”, supporting the majority of cards at full-performance. GPU (Graphics Processing Unit) or DAQ (Data Acquisition) can fit in perfectly, such as DAQ NI PCI-6220 from National Instruments.
Furthermore, DAQ also known as data acquisition. In other words, data acquisition processes as sampling signals that measure real world physical conditions. Next, data acquisi tion converts the the resulting samples into digital numeric values that can be changed by a computer. For examples, data acquisition is like the voltage, temperature, current, pressure or sound with a computer. Moreover, DAQ system measured hardware and a computers with programmable software. DAQ systems utilize the processing of power, display, connectivity, and productivity of industrial computers. With DAQ systems, industrial computers provide more powerful and cost-effective measurement solution.
On the other hand, GPU is known as Graphics Processing Unit. GPUs are located on plug-in cards, in a chipset on the motherboard or in the same chip as the CPU. To compare how CPU and GPU process tasks is a simple way to understand the differences between them. Furthermore, GPU includes both 2D and 3D calculations, GPU’s main goal is to render the graphics. Moreover, GPU performs parallel operations and GPU is essential for smooth decoding and rendering of 3D animations and video. As a result, the more stronger GPU, the higher the resolution and the faster response of the motion in games and movies. In other words, the GPU renders images, video, and animations for the computer's screen.
CPU is the abbreviation for central processing unit and also known as the central processor or the brains of computers. Furthermore, most of the calculations take place at the CPU. In terms of computing power, the CPU offers the most important element of a computer system. However, a CPU includes of a few cores optimized for serial processing while a GPU provides thousands of smaller, more efficient cores designed for handling multiple tasks at the same time.

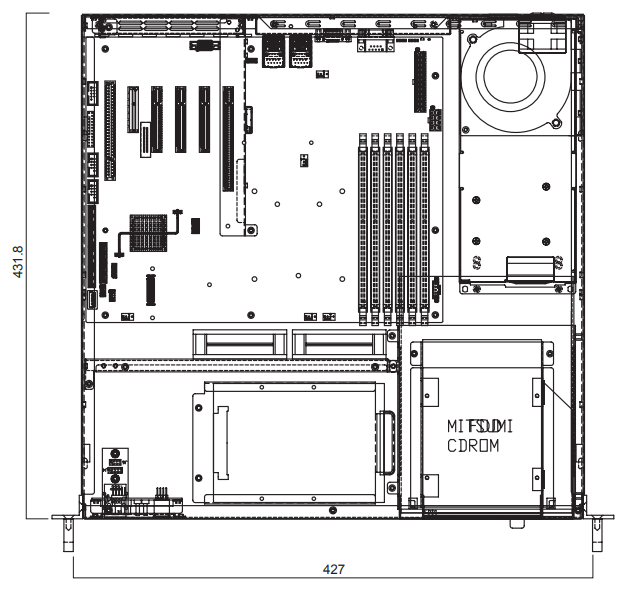

Additionally, RMC7212A offers 300W 110/220VAC 2U power supply and also an option for 400W if desired. In addition, RMC7212A is able to support a power range from 500W~1000W with PS2 power supply. Furthermore, RMC7212A gives a dimension of 19"(W) x 17"(H) x 3.5 "(D) and weight of 40 lbs. RMC7212A works under operating temperature from 0°~50°C (32°~ 122°F) and relative humidity from 5% ~ 95% at 40° C with non-condensing. This 2U rackmount supports with cooling fans to prevent from over heat. Moreover, cooling fans located in the middle (2 x 80cm ball-bearing fans) and rear (1 x 80mm fan) of the rackmount computer. Next, with the front panel controls RMC7212A supported, users can reset the computers more easily. RMC7212A supports power on, off switch, system reset button with 2 x USB ports at front panel controls. Additionally, there is also a built-in 0.4W PC speaker offered by RMC7212A.
