Smll form factor embedded PC with Atom N2600 1.6GHz CPU and a compact and rugged enclosure.
Aluminum alloy rugged micro box
Fan less embedded system
Atom N2600 dual core 1.6GHz processor
Extended working temperature range from -10°C to 50°C
VGA video out port, 4 USB and 2 COM ports
Wdie Range 100~240V AC power input
Embedded computer comes with Atom N2600 1.6GHz Dual-Core CPU and fan less cooling, has 4 x USB and 2 x isolated COM ports, VGA ports and ultra slim aluminum enclosure with extended -10 to 50 degree C working temperature. Option for Din rail, VESA and wall mounting kit.
CPU Type: Atom N2600 Dual Core 1.6GHz processor Chipset: NM10 chipset Memory: DDR3-800 SODIMM x 1, Max. 2 GB Watchdog time: programmable WDT from 1 to 255 seconds
VGA video input
1 x 2.5 inch SATA hard drive or SSD 1 x CFast
I/O Port (standard)
2 x COM ports, 1 for RS-232/422/485, 1 for RS-232 4 x USB ports, 4 for USB 2.0 1 x Ethernet ports, 10/100/1000Base-TX 1 x VGA or DisplayPort 1 x Audio (Mic-in/Line-out) 1 x VDC 5V power input connector
Front panel control
LED indicator for power and hard drive
input: AC 100-240V, AC 25W adapter with lock output: DC 5V@5A
FES5530 Fanless embedded system, Atom N2600 dual core 1.6GHz CPU, up to 2GB DDR3-800 DIMM memory, 2 COM, 4 USB, 1 x 2.5 inch SATA HDD, 1 x CFast, VGA display, silver-black color.
Price start from: $568.00
Small form factor Fan less Embedded PC Featuring Atom N2600 1.6GHz CPU with NM 10 Express Chip set

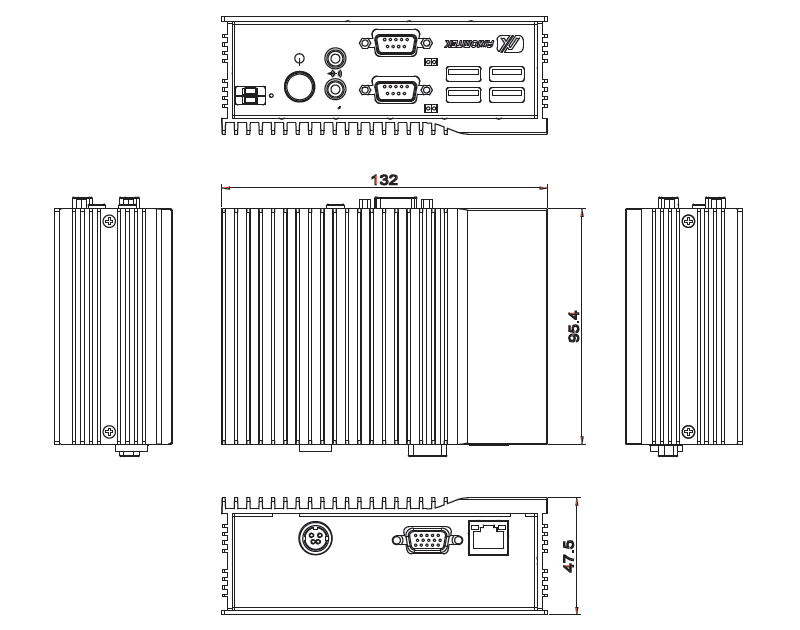

The small form factor fanless embedded system known as the FES5530. It features an Atom N2600 1.6GHz dual core processor and utilizes an NM10 Express chipset. The rugged enclosure has an IP40 rated, rugged aluminum, heavy-duty steel enclosure that’s been tested in operating temperatures of 14°F to 122°F (-10°C to +50°C) and can endure severe environments. With its fanless design, the FES5530 provides not only high performance and reliability but also noiseless and power saving benefits. In addition, the ionternal storage device has a built in CFast card slot that can endure vibrations of up to 3 Grms. It also features a lockable DC-in connector which also significantly reduces the impact of vibration and shock. Acnodes FES5530 is an application-ready platform that enables users to run demanding applications in the field, floor or office environments. This unit is ideal for in-vehicle PCs, in-flight infotainment systems, digital signage, entry-level gaming, medical healthcare, and other automation and embedded applications. Its compact size measuring only 6.31”(W) x 2.36”(H) x 5.33”(D) makes this system an ideal fit on to space limited environment, yet still capable of offering rich I/O connections. FES5530 has full feature I/Os including one RS-232/422/485 port, one RS-232 port, one 10/100/1000 LAN port, four USB ports, audio (Mic-in/Line-out) and an optional VGA or DisplayPort interface. For high-capacity data storage, one 2.5 inch SATA drive bay and one CFast card slot is supported, and is available with up to 2 GB 204-pin DDR3 SO-DIMM system memory. It supports various embedded operating systems including Windows 7 Embedded and Linux. FES5530 has a built-in Watchdog Timer to reset the system after a crash or system error, which reduces the need for maintenance. Moreover, It can be din-rail mounted, wall mounted, VESA mounted or stand-mounted, enables easy installation in various applications with confined spaces.
FES5530: Embedded Computer with Atom N2600 CPU, fanless industrial design, configurations with up to 2GB DDR3 memory, 1 x 2.5” SATA HDD, 1 x Ethernet, 2 x Serial, 4 x USB, VGA / DisplayPort video input, 100-240V AC power input.
References What is an embedded computer? An embedded system is a computer system that includes a specific function within a larger computerized system.
