Panel mount LCD monitor comes 7-inch display monitor designed for military display application, has aluminum enclosure with anti-corrosion chromate coating, D38999 connector and ANti-EMI AR glass to meet MIL-STD-810G and MIL-STD-461F standard.

PM9107-ML

  • 7" 16:9 800 x 4880 display resolution
  • 350 nit LCD panel
  • DVI-I video input - D38999 connector
  • Support portrait and horizontal display mode
  • 9 ~ 36V DC power input - D38999 connector
  • AR glass with EMI filter
  • Aluminum enclosure with Anti-corrosion chromate coating
  • Panel mount with EMI Gasket, VESA mount ready

Quick Overview

7-inch 800 x 640 rugged LCD monitor comes with Aluminum enclosure with Anti-corrosion chromate coating and AR glass with EMI filter, has DVI-I video input and 9 ~ 36V DC power input (D38999 connector)

Materia
Aluminum enclosure with anti-corrosion chromate coating
LCD panel
Size: 7 inch (16:9)
Max Resolution: 800 x 480
Brightness: 350 nits
Contrast Ratio (type) : 400:1
Viewing Angle (H/V): 140° x 110°
Active Area (mm): 153.6(V) x 90 (H)
Colors: 262K
Anti-EMI AR glass
Portrait Mode: Horizontal and Portrait
MTBF (hrs): 35,000
OSD Menu
5-key membrane OSD menu to adjust display brightness - rear side
Mounting Type
Panel Mount with EMI gasket and 75MM VESA mount holes
Connectors
1 x DVI-I port, (D38999 connector)<br/ > 1 x DC power port (D38999 connector)
Power Supply
9 ~ 36VDC power input,
15 Watts power consumption
Weight
5.67lbs

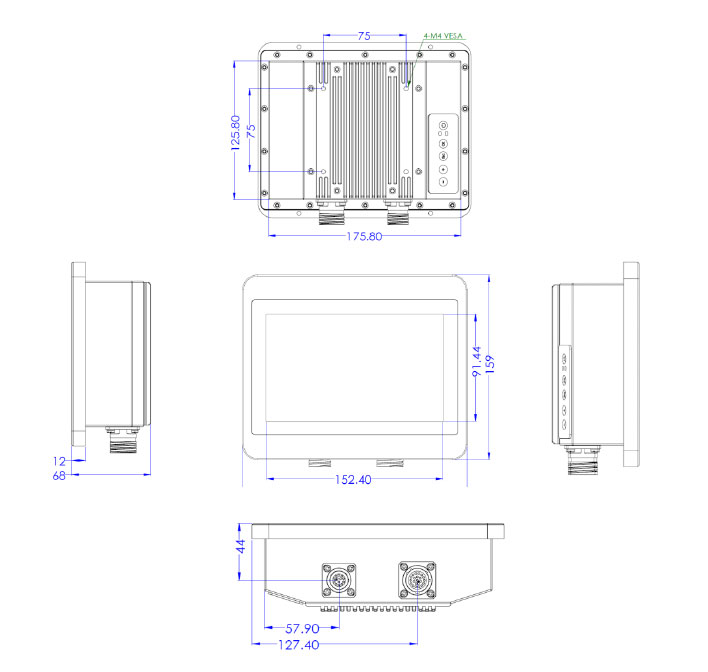

Dimension
7.67"(W) x 6.26"(H) x 2.68"(D
Environmental
Operating: 0°C to 55°C (32°F to 131°F)
Storage: -30°C to 70°C (-22°F to 158°F)
Relative humidity: 10~95 0%, non-condensing
Vibration: MIL-STD-810G Method 514.6C-3
Shock: MIL-STD-810G Method 516.6
EMI: MIL-STD-461F (RE101, RE102, CE101
CS102, CS114, CS116, RS101, RS103)

PM9107-ML:
7 inch 800 x 480 panel mount LCD monitor with DVI-I video input and 9 ~36 VDC power input, rugged aluminum enclosure with Anti-corrosion chromate coating, MIL-STD-810G and MIL-STD-461F certificated


Document Description Download Link
file icon PM9107-ML-SP.pdf Spec Sheet
file icon PM9107-ML-T190114D01-MIL-STD-461F(T181001D01)%20Draft%20.pdf MIL-STD-461F Test Report
