Military grade 15.6 inch Panel PC powered by 6th generation Core i7-6600U 2.6GHz CPU and a fully IP67 rated rugged enclosure, meet Mil-Std-810G & -20 to 60 degree C wide range working temperature.

PCM8015W

PCM8015W

  • Fully IP67 rated rugged enclosure
  • 15.6 inch 1920 x 1080 Full HD LED backlight monitor
  • 5-wire resistive type touch screen monitor
  • 1000-nits high brightness LCD panel
  • 6th generation Core i7-6600U 2.6GHz embedded system
  • MIL-STD-810G -20ºC to 60ºC wide range working temperature
  • 1 LAN, 5 COM & VGA video port
  • 9~36V isolated DC power input, option for AC power input

Quick Overview

Military grade Panel PC - 15.6 inch 1000-nits high brightness LCD touch screen, Core i7-6600U 2.6GHz CPU and fan less design , has a fully sealed IP67 rated rugged enclosure which meet MIL-STD-810G testing standard. and -20 to 60 degree C wide range working temperature.

Material
Fully IP67 rated rugged enclosure
LCD Panel
Size: 15.6”
Resolution: 1920 x 1080
Brightness: 1000 nits (optical bonding)
Contrast Ratio: 1000:1
Viewing Angle (H/V): 140'(H)/ 120'(V)
Backlight: LED
Colors: 262K Colors (6-bit)
Touch Screen
5-wire resistive type touch screen monitor
System
CPU: 6th generation Core i7-6600U 2.6GHz
Memory Slot: DDR4 SO-DIMM 8GB
Chipset: SoC Integrated
Ethernet
Intel i210 Ethernet Controller
Intel i219 Ethernet Connection
Drive Bay
1 x mSATA SSD 128GB for system boot
WLAN (Optional)
Full size miniPCIe for wireless card IEEE802.11 a/b/g/n 2x2 dual band
Watchdog
Programmable 1~255 sec.
Power Supply
Wide range 9~36V isolated DC input
Option for 90~264V AC power input
System Indicator
1 x Power LED, 1 x HDD LED
Connectors
4 x COM ports, 1 for RS-232, 3 for RS-422
2 x Front side IP67 Type A USB 2.0 (Optional)
1 x Ethernet port
1 x VGA video out port
1 x DC input
Weight
22.05lbs

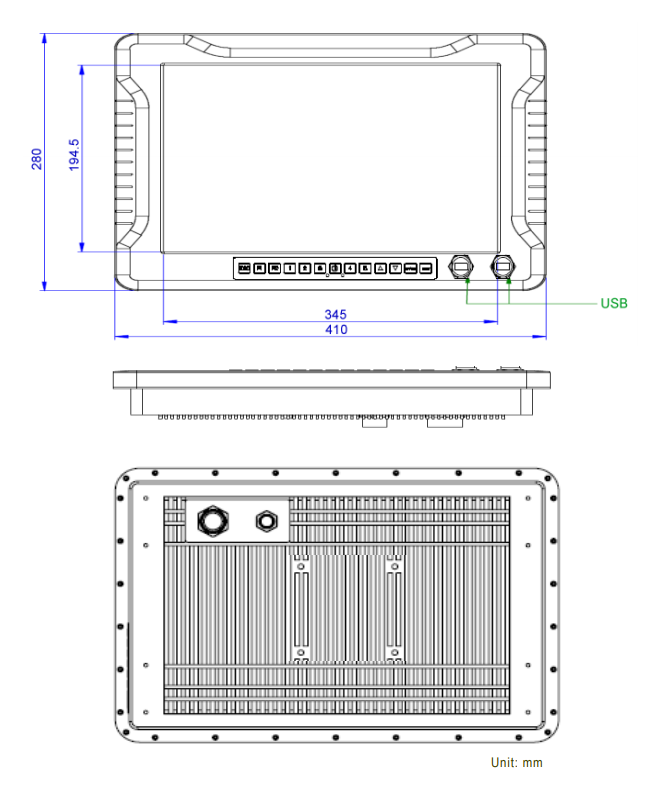

Dimension
16.14"(W) x 2.76"(D) x 11.02"(H)
Environmental
Operating Temperature: -20 to 60 degree C
Storage Temperature: -30 to 70 degree C
Relative Humidity: 10%-95%, non-condensing
Vibration: MIL-STD-810G Method 514.6C-3
Shock: MIL-STD-810G Method 516.6 Humidity: MIL-STD-810G Method 507.5-7
High Temperature: MIL-STD-810G Method 501.5-II
Low Temperature: MIL-STD-810G Method 502.5
EMC: MIL-STD-461F

PCM8015W:
15.6 inch 1920 x 1080 1000-nit high brightness industrial Panel PC, 6th generation Core i7-6600U 2.6GHz CPU, 8GB DDR4 memory, fully IP67 rated rugged enclosure, MIL-STD-810G Compliance, VGA video port, 5-wire resistive type touch screen.


Price: call for the price

Document Description Download Link
file icon PCM8015W-SP.pdf Spec Sheet
