Military-grade panel PC with a 15 inch 1024 x 768 1000-nit, high brightness 1,000 cd/m2 touchscreen monitor and a fully IP66 rated anti-corrosion aluminum housing with MIL-STD-810G compliance. The PC is powered by the 8th generation Intel Core i7-8665UE CPU and supports 6 x RJ45 GbE LAN,  and 2 x COM ports. Options are available for optical bonding, GPS module, front IP rated USB ports, speakers, and AC power adapter, RAM 8 GB DDR4,SSD: 128GB, Anti-EMI mesh-5wire resistive touch, Power Input: 9-36V DC with EMI filter(D38999 connector), Signal (D38999): 4xUSB 2.0, 1XRS232/422/485, 1xRS232



15.6

PCM8015W

10.4

PCM8011

PCM8415

Fully IP66 rated anti-corrosion aluminum housing

  • 15 inch 1024 x 768 LED backlight monitor
  • 5-wire resistive type touch screen monitor
  • 1000-nit high brightness LCD panel
  • 8th generation Core i7-8665UE 2.0GHz CPU
  • 6 x RJ45 GbE LAN, 2 x COM, 6 x USB
  • MIL-STD-810G vibration, shock, and temperature
  • 9~36V DC with EMI filter
$4,765.00
Availability: In stock
SKU
PCM8415

15" 1024 x 768, 1,000 nits military-grade panel PC with Intel Core i7-8665UE,  2.0GHz CPU, resistive type touchscreen, fully IP66 rated enclosure, and MIL-STD-810G testing standards.

Material
Anti-corrosion aluminum housing
Full IP66 rated rugged enclosure
LCD panel
Size: 15 inch
Resolution: 1024 x 768
Brightness (cd/m²): 1000
Contrast Ratio (typ.): 700:1
Viewing Angle (H/V): 160° x 140°Backlight: LED
Colors: 16.2M (8-bits/color)
Touch Screen
Anit-EMI 5-wire resistive type touch screen monitor
System
CPU: 8th gen. Core i7-8665UE 2.0GHz
Chipset: SoC Integrated
Memory: DDR4L 2133Mhz 8GB, Max. 16GB
Storage: 2.5" SSD
Ethernet Chipset: Intel Ethernet Connection
Watchdog: 65535 levels, 1~65535 sec
Video Port
N/A
Speaker (Option)
2 x 2W speakers
GPS Module (Option)
1 x GPS module
Optical Bonding (Option)
Optical Bonding
Connectors
6 x RJ45 GbE LAN
1 x HDMI
4 x USB 2.0, 2 x USB 3.0
1 x RS-232/422/485, 1xRS232,
1 x 9~36V DC with EMI filter
2 x 2W speakers (optional)
2 x front IP67 USB ports (optional)
OSD Buttons
On/Off, Reset buttons
System Indicator
1 x Power LED, 1 x HDD LED
EMI Proof
Anti-EMI filter
Power Supply
9 to 36V DC power input
Option for external AC power adapter
Mounting
VESA or flush mount
Weight
19.84 lb / 9 kg

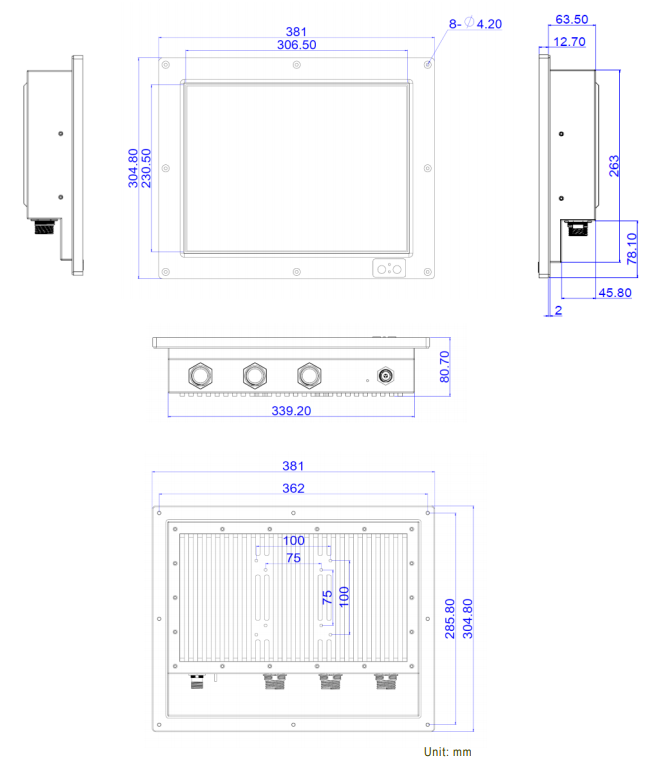

Dimension
15"(W) x 3.18"(D) x 11.97"(H)
Environmental
Operating Temperature: -20°C to 60°C
Storage Temperature: -30°C to 80°C
Relative Humidity: 5~95%, non-condensing
MIL-STD-810G vibration, shock, & temperature

PCM8415:
15 inch 1024 x 768 1000-nit high brightness military-grade panel PC, Resistive type touchscreen, 8th generation Intel Core i7-8665UE 2.0GHz CPU, 8GB memory, 128GB SSD, HDMI output, 9~36VDC power input, fully IP66 rated anticorrosion aluminum housing, MIL-STD-810G compliance.

Document
Description
Download Link
file iconPCM8415-SP.pdf
Spec Sheet
file iconPCM8415-PIN.pdf
Pin Assignment
