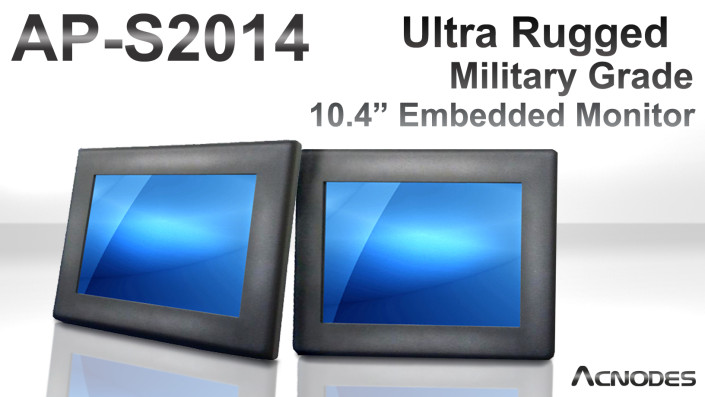

The AP-S2014 is a 10.4 inch rugged industrial LCD monitor supporting 1024 x 768 resolution, 1000-nit high brightness, 1000:1 contrast ratio, and 176-degree viewing angles. The monitor features a full IP66 rated waterproof housing with an anti-acid and anti-corrosion powder coating. Designed to comply with MIL-STD-810G / 461F military standards, this rugged display is ideal for a wide range of military applications and harsh environments. The AP-S2014 supports VGA + DVI inputs (D38999 connector), front panel controls, and rear VESA (75 x 75mm) mounting holes that allow you to easily integrate the monitor into an enclosure, cabinet, or other applications.
Loading...
12.1

AP-S2012

AP-S2014

  • 10.4" 1024 x 768 rugged military display
  • Supports 1000-nits high brightness LCD panel
  • VGA + DVI video input (D38999 connector)
  • AR protective glass (optical bonded)
  • Full IP66 water resistant and dustproof enclosure
  • MIL-STD-810G and MIL-STD-461F testing compliance
  • -32°C to 60°C wide range working temperature
  • VESA (75 x 75mm) mounting holes
  • 9~36V DC power input (D38999 connector)
$2,620.00
Availability: In stock
SKU
AP-S2014
Email

10.4" rugged military display with 1000-nits high brightness display, VGA + DVI input, full IP66 enclosure, 9~36V DC power input, and MIL-STD-810G/461F testing compliance.

Material
Full IP66 rated compact housing
LCD Panel
Size: 10.4 inch
Max. Resolution: 1024 x 768
Brightness (cd/m²): 1000-nits
Contrast Ratio (typ.): 1000:1
Viewing Angle (H/V): 176° x 176°
Backlight: LED
Colors: 16.2M
LCD Protection
AR glass (optical bonded)
Video Input
VGA + DVI input (D38999 connector)
Panel control
Brightness Control: 0~100% dimming by OSD buttons
Thermal Control: Heater Board / Heater Film Integrated
Power Protection: Reversed Polarization Protection
OSD Buttons
8 buttons front OSD controller (Including Power On/Off, Menu, Up, Down, Reset)
Mounting Type
VESA (75 x 75mm) mounting holes
Connectors
1 x VGA port (D38999 connector)
1 x DVI port (D38999 connector)
Weight
TBD

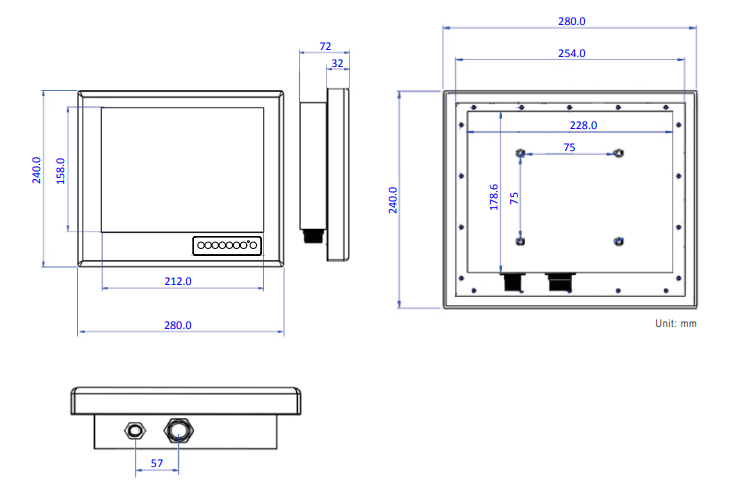

Dimension
11.02”(W) x 9.44”(H) x 2.83”(D)
Power Supply
Power Input: 9~36V (D38999 connector)
Power Consumption: 18 watts (typical)
Environmental
Operating Temperature: -32°C to 60°C (-25.6°F to 140°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Relative Humidity: 10~95%, non-condensing
Vibration: MIL-STD-810G Method 514.6C-3
Shock: MIL-STD-810G Method 516.6
Humidity: MIL-STD-810G Method 507.5-7
High Temperature: MIL-STD-810G Method 501.5-11
Low Temperature: MIL-STD-810G Method 502.5
EMI Compliance: MIL-STD-461F, CE102, RE102

AP-S2014:
10.4" military-grade display, 1024 x 768 resolution, 1000-nit high brightness, VGA + DVI (D38999 connector), AR glass (optical bonded), fully IP66 rated enclosure, 9~36V DC power input (D38999 connector), MIL-STD-810G / 461F compliance.

Estimated Lead Time: 12~14 weeks

Document
Description
Download Link
file iconAP-S2014-SP.pdf
Spec Sheet
file iconAP-S2014-UM.pdf
User Manual
file iconAP-S2014-MIL-STD-810G TEST REPORT.pdf
MIL-STD-810G Test Report
file iconAP-S2014-MIL-STD-461F TEST REPORT.pdf
MIL-STD-461F Test Report
  • AP-S2014
    10.4" 1024 x 768 rugged military display
    Supports 1000-nits high brightness LCD panel
    VGA + DVI video input (D38999 connector)
    AR protective glass (optical bonded)
    Full IP66 water resistant and dustproof enclosure
    MIL-STD-810G and MIL-STD-461F testing compliance
    -32°C to 60°C wide range working temperature
    VESA (75 x 75mm) mounting holes
    9~36V DC power input (D38999 connector)
    Starting at:
    $2,620.00
AP-S2014
$2,620.00



military garde 10.4" monitor

PRODUCT DESCRIPTION
A 10.4" ultra-rugged military-grade embedded monitor. This panel mount monitor is engineered and certified to withstand extremely harsh environments, which is ideal for military mission-critical applications. With its MIL-STD-810G rating, it can survive wild temperatures ranging from -25.6 ºF to 140 ºF. It also boasts anti-shock and vibration resistance, fully IP66-rated rugged housing, anti-acid and anti-corrosion panels, and a military-grade power connector that increases durability and provides longer life while reducing downtime. With a 10.4-inch high-image quality LED backlight LCD, the AP-S2014 has proven to provide critical information on and off the battlefield. This panel mount monitor supports up to 1024 x 768 pixels resolution, 1000:1 contrast ratio, and offers 16.2 million colors. The AP-S2014 is a high brightness, sunlight-readable display with an adjustable brightness level of 1000 nits and a viewing angle of 176 degrees. Moreover, it comes with a 5-wire resistive type touch screen for easy control. To meet the requirement of unstable electricity environments, the system supports wide voltage power inputs from 9~36V DC with reversed polarization protection. This unit is equipped with VESA mounting patterns that can be used on wall and panel mounting applications that facilitate fast and easy monitor installation and removal. It also comes with an optional vehicle/desktop bracket.
