Rack mount monitor comes with 17.1 inch 1920 x 1200 full HD industrial monitor, VGA / DVI / HDMI video input port, stereo speaker & 6U high rack mount monitor. Option for S-video / BNC / 3G / HD / SD-SDI video input port, DC power supply & rtouch screen monitor.

RMW7170

  • 6U high Rack mount monitor
  • 17.1 inch 1920 x 1200 industrial monitor
  • Support Full HD with 1080P resolution
  • Option for touch screen monitor & MCS control
  • VGA + DVI-D + HDMI + BNC + S-Video video input
  • 2 x 2W stereo speaker
  • 110/220VDC power input
  • Option for 12V, 24V or 48V DC power

RMW7170

Quick Overview

Rack mount monitor - 17.1 inch 1920 x 1200 full HD industrial monitor, VGA + DVI-D + HDMI + BNC + S-Video video input & external power adapter & 6U high rack mount monitor. Option for touch screen monitor, MCS & DC power input.

Construction
Heavy-duty steel

LCD panel
Size: 17.1 inch wide screen full HD
Max Resolution: 1920 x 1200
Brightness: 210
Contrast Ratio (typ) : 600:1
Viewing Angle (H/V): 130° x 110°
Active Area (mm): 367 x 230
Colors: 16.7M, 8-bit
Signal Input: HDMI / DVI-D / VGA
Backlight: LED
MTBF (hrs): 20,000

Video input
HDMI + DVI-D + VGA + BNC + S-Video video input (std)
Option for
HDMI + DVI-D + VGA + MCS Multi-display control solution

Touch screen monitor
17 inch touch screen monitor Resistive
USB port

Sound
2 x 2W Power

Connector
VGA + DVI-D + HDMI + BNC + S-Video
Optional MIL-type lockable male jack for DC / VGA connector
Optional lockable male jack for DC / USB (touch screen monitor only)
connector

Front panel control
power on/off switch
OSD membrance switch


Power adapter
External Auto-sensing 100 to 240VAC, 50/ 60Hz power adapter
Consumption: Max. 48 Watt, Standby 5 Watt
Option for 12V, 24V or 48VDC power input

Mounting
6U high rack mount monitor
for standard 19 inch wide rack mount cabinet


Environmental
Operating: 0 to 50°C Degree
Storage: -5 to 60°C Degree
Relative humidity: 5~90%, non-condensing
Shock: 10G acceleration (11 ms duration)
Vibration: 5~500Hz 1G RMS random vibration


Weight
15lbs

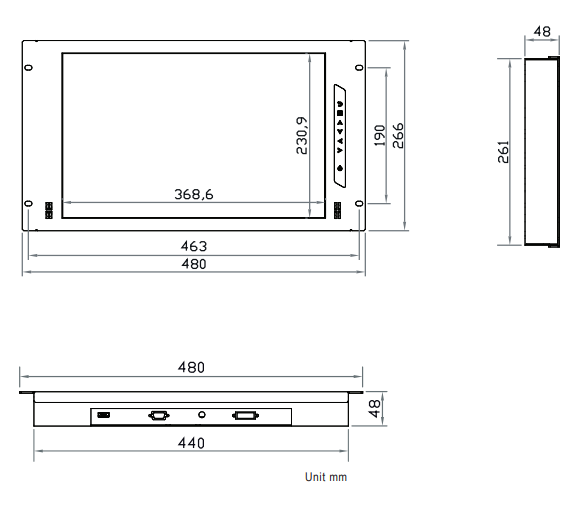

Dimension
18.9" (W) x 1.9" (D) x 10.5" (H)

Casing Color
Black front panel (RAL 9005)
Dark grey rear case (RAL 7037)


Regulatory
FCC, CE
