Open frame monitor has a 17.3 inch 1920 x 1080 industrial LED LCD panel with on board digital TV tuner (ATSC DTV) with remote control, The video inputs included VGA + HDMI + RCA + TV coaxial video input, It has a rugged metal open frame enclosure with VESA mounting hole and front mount bracket for Universal or VESA (100mm) mount.
PM6171
- Open frame metal construction
- 2" short depth casing
- 17.3 inch 1920 x 1080 LED back light industrial LCD panel
- ATSC DTV with remote control and stereo speaker
- VGA + HDMI + Composite (RCA)
- Universal VESA (100mm) mount ready
- Auto-sensing 100/240V AC power adapter
$680.00
Availability:
In stock
SKU
PM6171
17.3 inch 1920 x 1080 open frame LCD monitor with digital TV tuner with remote control and built-in stereo speaker, has VGA + HDMI + RCA video input and Universal or VESA (100mm) mount ready.
- Material
- Heavy duty steel
- LCD Panel
- Size: 17.3”
Max. Resolution: 1920 x 1080
Brightness: 300
Contrast Ratio: 600:1
Viewing Angle (H/V): 178'(H)/ 178'(V)
Active Area (mm): 382 x 215
MTBF: 20,000 hrs
Backlight: LED
Colors: 1.07 Billion, 10-bit
Signal Input: ATSC DTV + HDMI + VGA + Composite (RCA)
- Video input
- ATSC DTV + HDMI + VGA + Composite (RCA)
- OSD menu control
- OSD membrane switch control for
Brightness, Contrast, Phase & Clock, Color, H & V position, Auto-tune
- Digital TV tuner
- Aerial input: 75 ohm coaxial, IEC type
TV system: STAC/NTSC
- Sound
- 2 x 2W Power
- Rear panel control
- Power on/off switch
OSD membrane switch
- Mounting Type
- Universal mount or VESA (100mm) mount
- Connectors
- ATSC DTV + HDMI + VGA + Composite (RCA)
- Power supply
- External Auto-sensing 100 to 240VAC, 50/ 60Hz power adapter
Consumption: Max. 48 Watt, Standby 5 Watt
- Color
- Dark grey (RAL 7037)
- Weight
- 7.5lbs
- Dimension
- 18.3"(W) x 12.9"(H) x 2"(D)
- Environmental
- Operating: 0 to 50°C Degree
Storage: -5 to 60°C Degree
Relative humidity: 5~90%, non-condensing
Shock: 10G acceleration (11 ms duration)
Vibration: 5~500Hz 1G RMS random vibration
- Certification
- FCC, CE, RoHS
PM6171:
17.3 inch 1920 x 1080 300-nit high brightness industrial monitor & open frame monitor, black color.
ATSC DTV with TV remote + VGA + HDMI + Composite (RCA) video input and stereo speaker
Price: $680
Document
Description
Download Link
PM6171-DATA.pdfData Sheet

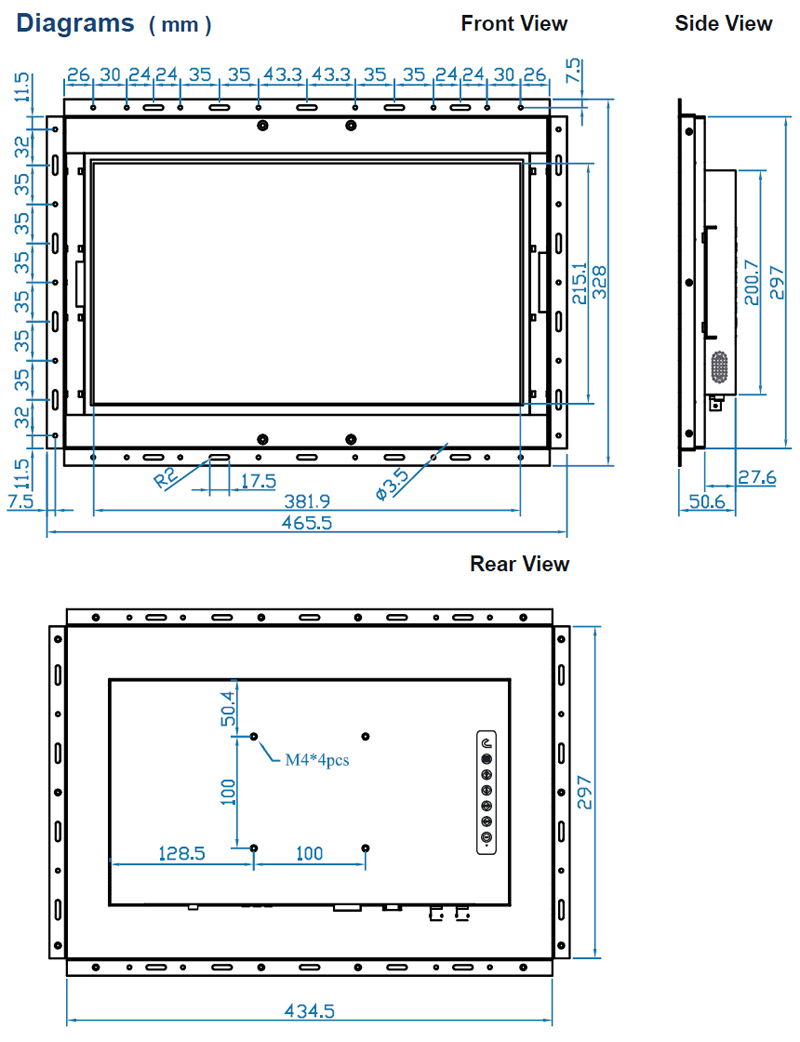

PM6171-DIM.pdfDimension
Touch Screen Calibration Guide.pdfTouch Screen Calibration Guide
