PM-S0150

PRODUCT DESCRIPTION
PM-S0150 is a 15 inch ruggedized open frame monitor designed for outdoor applications. PM-S0150 is able to operate efficiently in harsh environmental conditions such as heat, humidity, cold, and high brightness. With wide operating temperatures from -30°C to 80°C, the monitor can secure stability in extreme heat or cold environments or in environments with large temperature fluctuations. The LCD monitor supports a 1024 x 768 resolution, 350-nits brightness, 1500:1 contrast ratio, and 16.2 million colors. To deliver and present vivid picture quality in any outdoor location, PM-S1050 offers the option for a 700, 1000, or 1500-nit high brightness display for optimum viewability in direct sunlight. It also features an optional anti-reflective or anti-glare glass for increased protection against harsh impacts and scratches, while enhancing viewability in outdoor venues by reducing reflection. The PM-S0150 is perfect for integrating into kiosks or rear-mounting in walls or panels. The monitor provides easy mounting options and offers rugged metal housing. Furthermore, PM-S0150  also offers an unmatched array of monitor options, so monitors can easily be custom configured to meet individual customer requirements. For example, sunlight-readable, SV, AV, or HDMI inputs, DC powered, light or motion sensor, various touch screen types, and so on.

- Protective Features
•  Heavy-duty steel with an open frame monitor
• Wide range of operating temperature from 5°F to 149°F (-15°C to 65°C)
• Wide storage temperature from -22°F to 176°F (-30°C to 80°C)
• Relative humidity can withstand 10~90%, non-condensing

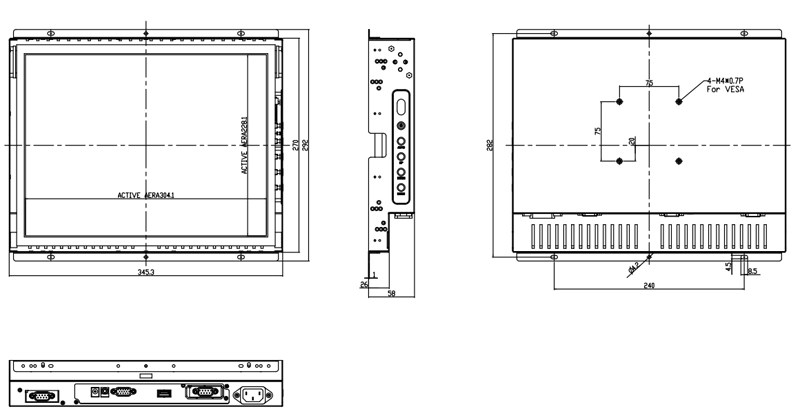

• Compact design of 13.59"(W) x 11.77"(H) x 2.28"(D) and 11.02 lbs
• Front mounting bracket and VESA mounting holes

- Clarifying Image Quality
• 15 inch LED TFT (thin-film-transistor) LCD display
• Maximum resolution of 1024 x 768, 350-nits brightness, 1500:1 contrast ratio
• 16.2 million colors, and MTBF (mean time between failure) at 35,000 hours
• Options for 700, 1,000, or 1,500-nits high brightness
• Option for digital signage (stand alone), MP 480P or 1080P
• Option for motion sensor or light sensor
• Option for resistive, capacitive, or SAW type touch screen with USB port
• Option for protected glass (AR/AR with anti-vandal/AG)

- Detailed Video Signal Specifications
• VGA video input
• Options for DVI or DVI and HDMI or SV and AV
• Audio system of 2W speaker x 2
• VGA port (15 pin female D-Sub), PC Audio (stereo headphone jack), and DC power plug
• External auto-sensing 90 to 240VAC, 50/60Hz power adapter
• Option for 24VDC power supply
