PRODUCT EOL NOTICE: THE PKD8170 HAS REACHED ITS END OF LIFE (EOL). PLEASE VISIT PORTABLE DUMB TERMINALS FOR RELATED PRODUCTS.

Portable monitor keyboard dumb terminal comes with 17 inch 1280 x 1024 LCD panel, keyboard & touchpad, and a ruggedized metal housing with rubber corner protector. Option for rubber keyboard and Hula-Point device.

Skip to the beginning of the images gallery

PCH6519

KDN9172

PKD8170

Ruggedized portable dumb terminal
17 inch 1280 x 1024 industrial LCD panel
OSD (on-screen display) control function
Tempered glass add for LCD monitor protection
101-key keyboard with touchpad
110/220VAC auto-switch power supply
Option for rubber keyboard and Hula-point device

Availability: In stock

SKU

PKD8170

Ruggedized portable dumb terminal with a 17 inch 1280 x 1024 LCD panel, 101-key keyboard with touchpad, portable metal suitcase, and 110/220VAC power supply.

Specification

Construction: Aluminum alloy portable suite case with rubber corner bumper

LCD panel: Size: 17-inch
Max. Resolution: 1280 x 1024
Brightness: 200
Contrast Ratio: 350:1
Response Time: 35mS (Rising), 35mS (Falling)
LCD MTBF: 50,000 hours
Colors: 16M colors

Tempered glass: 3mm impact-resistant LCD screen glass

Keyboard and touchpad: 101-key keyboard and touchpad
Option for water and dust proof rubber keyboard and Hula-Point device

Connectors: 1 x D-Sub 15 pin (female) for VGA
(option for DVI video input)
2 x USB for Keyboard and Mouse

Power supply: Industrial level Auto-switching power supply for 85V~264VAC input

Color: Black

Operation temperature: 0 to 55°C (32 to 131°F)

Weight: 20lb

Dimension: 17.25"(W) x 3.30"(D) x 13.38"(H)

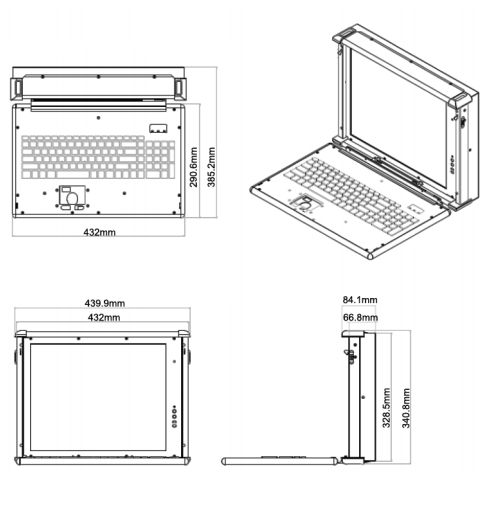

Dimensions

Order Info

PKD 8170:
1U 17-inch 1280 x 1024 portable monitor keyboard dumb terminal, Black color.

PKD 8170-R:
17-inch 1280 x 1024 portable monitor keyboard dumb terminal, rubber keyboard and Hula-Point device, Black color.

Downloads

Document

Description

Download Link

PKD8170-SP.pdf

Spec Sheet

Configure Now

PKD8170

Portable monitor keyboard suite case
17" 1280 x 1024 industrial LCD panel
3mm impact resistant LCD screen glass
101-key keyboard with touchpad
Option for rubber keyboard with Hula-Point device
110/220VAC auto-switch power supply

Starting at:

PKD8170

LCD Monitor

17" 1280 by 1024 LCD screen

Keyboard + Pointing Device

Standard keyboard with touchpad (USB)

Rubber keyboard with hula-point device (USB) + $265.00

PRODUCT DESCRIPTION
This portable keyboard terminal comes with a 17-inch LCD panel that is an active-type digital to digital which connects to the onboard conversion board and auto supports a 1280 x 1024 display resolution. The LCD monitor comes with a standard 15-pin VGA connector on the for your computer connection. There is a tempered glass added for the LCD monitor protection. OSD control functions allow for adjusting the screen for the best view. The 101-key keyboard and a 2-buttons Hula point device are mounted on the front of the monitor. Both of them are connected to a standard USB type connector for your computer connections. The industrial silicon rubber keyboard and Hula point device can be water splash and dustproof (optional). A 1 x 6-feet 15pins D-sub proprietary cable for the monitor and 1 x USB cable for the keyboard with Hula point device is provided. It also comes with an industrial level auto-switching power supply with an 85V~264V AC input.
