Panel PC comes with 17-inch 1280 x 1024 LCD panel and 5-wire resistive type touch screen, it powered by Core i high performance process and dual display (DVI and HDMI) for HMI computer application. the slim designed case with a IP65 rated aluminum front bezel and 3.15 inch depth enclosure for space limited industrial PC application.
Loading...
FES8912 industrial PC

FES8912

7

PC9070

PC8177

  • Aluminum front bezel with IP65 protection
  • Slim design with 3.15 inch depth enclosure
  • 17 inch 1280 x 1024 industrial LCD panel
  • Resistive type touch screen with 5 wire connection
  • Core i7 / i5 / i3 embedded computer
  • Dual display port (DVI-I and HDMI)
  • 4 COM ports and 6 USB ports
    •
  • 100 ~ 240VAC 270W power supply
$1,935.00
Availability: In stock
SKU
PC8177
Email
Slim designed industrial PC powered by high performance Core i CPU with 17 inch touch screen, has 4 x COM ports and HDMI + DVI video out port, IP65 rated aluminum front panel bezel and 3.15 inch depth ultra slim enclosure.
Material
Aluminum front bezel with IP65 and NEMA 4 protection
LCD panel
Size: 17 inch Display
Resolution: 1280 x 1024
Brightness: 380
Viewing Angle (H/V): 170'(H) / 160'(V)
Touch screen
17 inch 5-wire resistive type touch screen monitor
Light transmissin 79%
1 million activations (typical) at a single point
System
CPU: 3rd and 2nd generation core i7 / i5 / i3 celeron processor
Memory Slot: DDR-III SODIMM x 2, Max. 16GB
System Chipset: Q77
Watchdog timer: programmable WDT from 1 to 255 seconds
Video input
Dual video input: DVI + HDMI for independent video outputs
Drive Bay
1 x 3.5 inch or 2 x 2.5 inch drive bay for SATA hard drive or SSD
Mounting
Panel / Wall / VESA mount
Connectors
4 x COM ports, 1 for RS-232/422/485, 3 for RS-232
6 x USB ports, 2 for USB 2.0, 4 for USB 3.0
2 x Ethernet ports, 10/100/1000Mbps
1 x DVI-I port
1 x HDMI port
1 x Audio (Mic-in/Mic-out)
Power supply
100 ~ 240VAC, 270W power supply
Weight
15.43lbs
Dimension
16.14" x 3.15" x 13.3 (W) x (D) x (H)
Certification
CE
Environmental
Environment Temperature
Operating: 0 to 45 degree C
Storage: -20 to 60 degree C
Relative Humidity: 10%-95% @ 40 degree C, non-condensing
Operating vibration: 1.0G, 5-500Hz, random

PC 8177:
17 inch industrial Panel PC with Core i7 / i5 / i3 embedded computer, up to 16GB DDR3 memory, 4 COM ports and resistive type touch screen.
Price start from: $1,735.00

Document
Description
Download Link
file iconPC8177-DATA.pdf
Data Sheet

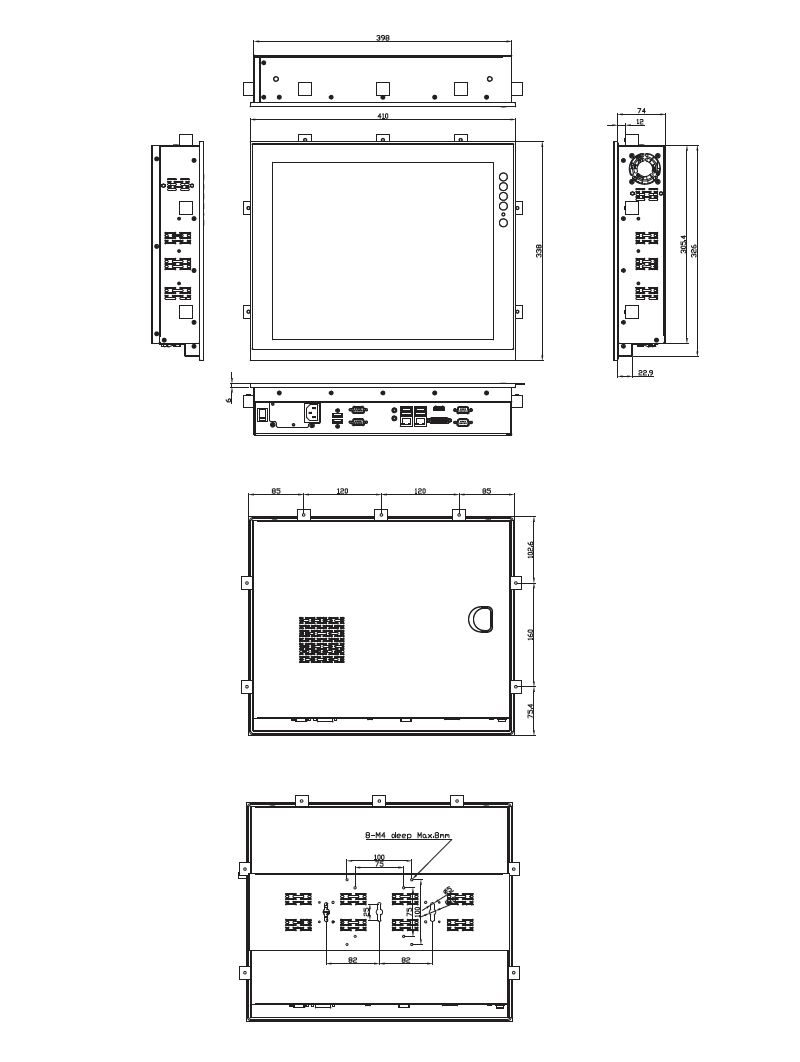

file iconPC8177-DIM.pdf
Dimension
file iconPC8177-UM.pdf
User Manual
  • PC8177
    Panel PC
    17 inch 1280 x 1024 touch screen monitor
    Dual Core G1610 2.6GHz Celeron processor
    2GB SODIM memory, up to 16GB
    250GB hard drivwe
    IP65 rated aluminum front bezel
    3.15 inch short depth casing
    VESA / panel / wall mount ready
    Starting at:
    $1,935.00
PC8177
$1,935.00

LCD panel and touch screen
  The 17 inch industrial monitor comes with 1024 x 768 display resolution and CCFL back light  LCD panel. The resistive-type touch screen is mounted on the front of the LCD panel with a 5-wire flat cable connect to RS-232 port. The industrial-grade aluminum front bezel provides high degree of hardness, better heat releasing, easy-to-shape and anti-corrison ability.

Onboard system board
  The embedded computer powered by multiple core Core i7 / i5 / i3 (LGA-1155) high performance processor and DVI plus HDMI video ports to meet the demand of multimedia application, has two Gigabit Ethernet and an option for WLAN for wireless network connection. It accepts a DDR3 memory (2 x SODIM socket, up to 16 GB) and 6 x USB ports and 4 COM prot (RS-232 and RS 422/ 485). The working temperature range is from 0° C - 45° C.

Storage device
The embedded computer comes two 2.5 inch SATA hard drive or one 3.5 inch hard drive which are mounted on the side of the internal embedded board.

Connectors
 The built in interface I/O ports included 2 x RS232 (COM 2/4), 1 x RS-232 / 422 / 485 (COM1), 1 x RS-232 with 5V and 12V (COM3), 2 x USB 2.0, 4 x USB 3.0, 2 x 10/100/1000 Mbps Ethernet LAN,  1 x DVI-I, 1 x HDMI and 1 x Audio (Mic-in/ Mic-out).

Power supply
The internal power supply is an open-frame 270W input auto scan power supply.

Mounting
Slim designed enclosure comes with 3.15 inch short depth case with aluminum front bezel for space limitted industrial computer applcations, has on board VESA mounting holes and panel mounting kits for different mounting requirement.

References
What is IP rating?
IP rating refers to the degree of protection against water and dust provided by a computer's enclosure.

What is mounting solution?
Mounting solution is a collection of different kinds of mounting methods that can help you to know how to mount your product correctly and rapidly.

New Industrial Panel PC Features Core i7/i5/i3 Processor with Q77 Express Chipset
Featuring 17 inch LCD panel that supports 380-nit brightness and up to 1,280 x 1,024 pixels resolution, PC8177 is powered by Q77 Express chipset and Core i7 / i5 / i3 processor with up to 16 GB of DDR3 system memory. High performance industrial PC adopts rugged IP65/NEMA 4 compliant front bezel, and supports 1 SATA interfaces, 4 COM ports, 6 USB ports, 2 Gigabit LAN, and dual display.
