NOTICE: PRODUCT EOL. REPLACEMENT PRODUCT IS PC9070 7" FANLESS INDUSTRIAL PANEL PC SUPPORTING 800 X 480 RESOLUTION, INTEL CELERON N2930 1.83GHZ CPU, RESISTIVE TOUCH SCREEN, AND WIDE RANGE 9 TO 36V DC POWER INPUT

Multi-touch panel PC with a 7 inch 1024 x 600 LCD monitor, projected capacitive multi-touch screen, low power Celeron N2807 Dual Core 1.58GHz processor, IP65 rated flat front bezel, and -20°C to 50°C wide range working temperature.
Loading...
10.1

PMW6101

PMW6242

PMW6242

PC5070

  • IP65 rated flat front bezel
  • 7 inch 1024 x 600 TFT LCD monitor
  • Projected capacitive multi-touch screen
  • Celeron N2807 Dual Core 1.58GHz embedded computer
  • 500-nits high brightness LCD panel
  • -20ºC to 50ºC wide range working temperature
  • 9 to 30V DC power input with external AC power adapter
Availability: In stock
SKU
PC5070
Email

7" 1024 x 600 multi-touch panel PC with Celeron N2807 Dual-Core processor, IP65 rated flat front bezel, Dual LAN, and -20°C to 50°C wide range working temperature.

Material
IP65 rated rugged enclosure
LCD panel
Size: 7”
Max. Resolution: 1024 x 600 (16:9)
Brightness (cd/m²): 500
Contrast Ratio (typ.): 700:1
Viewing Angel (H/V): 150° x 145°
MTBF (hrs): 50,000
Colors: 16.2M
Touch Screen
Projected capacitive type multi-touch screen monitor
Interface: USB
System
CPU: Celeron N2807 Dual Core 1.58GHz CPU
Memory: 2GB DDR3L onboard RAM
Storage: 30GB mSATA SSD
Connectors
2 x RS232, COM port (DB-9 connector)
2 x USB 3.2
2 x GbE LAN
1 x Power Switch
1 x Reset Button
1 x AT/ATX switch
1 x 9~30V lockable DC jack
Audio
1 x AMP 2W internal speaker
Wireless Communication
Built-in IEEE 802.11a/b/g/n/ac 1T1R module
Power supply
9~30V DC power input with external AC power adapter
Mounting
Wall, Panel, Stand, Rackmount, VESA (75*75mm)
Color
Black
Weight
3.99 lb / 1.81 kg

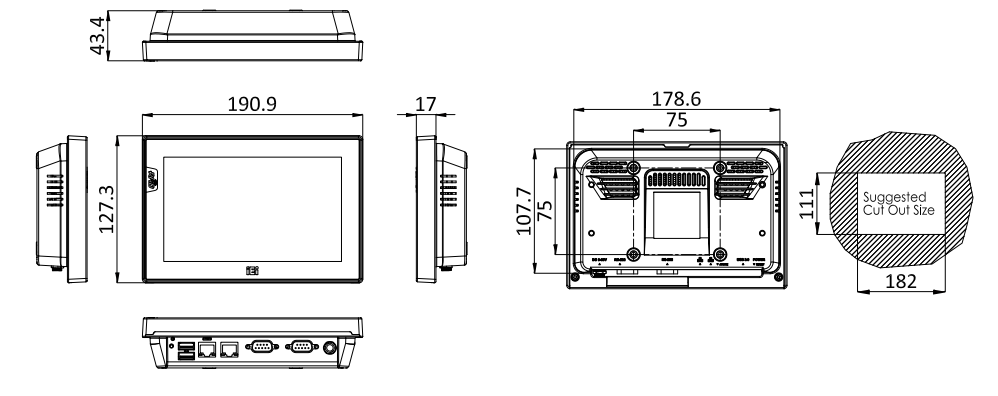

Dimension
7.52”(W) x 5.00”(H) x 1.69”(D)
Environmental
Operating Temperature: -20°C to 50°C (-4°F to 122°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Relative Humidity: 10% to 95%, non-condensing
Certification
CE, FCC

PC5070:
7" 1024 x 600 resolutions 500-nit high brightness industrial Panel PC with IP65 rated flat front bezel, Celeron N2807 Dual-Core 1.58GHz embedded computer, 2GB DDR3 memory, 30GB mSATA SDD, and projected capacitive multi-touch screen.

NOTICE: PRODUCT EOL. REPLACEMENT PRODUCT IS PC9070 7" FANLESS INDUSTRIAL PANEL PC SUPPORTING 800 X 480 RESOLUTION, INTEL CELERON N2930 1.83GHZ CPU, RESISTIVE TOUCH SCREEN, AND WIDE RANGE 9 TO 36V DC POWER INPUT.

Document
Description
Download Link
file iconPC5070-SP.pdf
Spec Sheet
  • PC5070
    Fanless Panel PC
    Intel Celeron N2807 1.58GHz Dual Core CPU
    7" 1024 x 800 500-nits LCD display
    IP65 rated flat front bezel
    Projected capacitive type multi-touch screen
    2GB DDR3L onboard RAM
    Built-in 802.11a/b/g/n/ac wireless LAN module
    9V to 30V DC power input with external AC adapter
    VESA mount (75mm) ready
    Starting at:
PC5070

PRODUCT DESCRIPTION
PC5070 is a compact, ultra-slim multi-touchpoint panel PC boasting a powerful 7-inch flat-panel LCD that supports 1024 x 600 resolution, 500-nit high brightness, and a projected capacitive type touch screen with multi-touch function. Powered by the Intel Celeron N2807 1.58GHz Dual-Core processor, PC5070 also comes with1 x 2GB DDR3 SO-DIMM socket, 1 x 30GB mSATA SSD, dual Ethernet, 2 x COM ports, 2 x USB ports, and an audio (Line-out) port to accommodate a wide range of connectivity requirements. To facilitate access to a wireless network, PC5070 has a built-in 802.11a/b/g/n/ac wireless LAN. The enclosure features a rugged IP65-rated front bezel and the touch screen comes with an anti-scratch design that can resist scratch hardness up to 6H to ensure operational stability. This rugged panel computer has an operating temperature range of 32°F to 122°F (0°C to +50°C) and a storage temperature of -20°C to 60°C (-4°F to 140°F). Furthermore, PC5070 supports a wide voltage power input of 9V to 30VDC and comes with an external AC power adapter for environments with unstable electricity. Moreover, PC5070 has flexible mounting options (wall, rack, stand, and V-stand mounting) that enable the PC to smoothly transfer into any working environment. PC5070  is ideal for small-size operating interface applications, such as factory HMI, home automation terminals, and digital signage.
