Industrial computer integrated Atom D2550 1.86GHz CPU into a compact and rugged enclosure with an -20°C ~ 60°C extended working temperature. has DVI-I + DVI-D dual input and DC power input with ATX function. It mounted securely with integrated mounting bracket for automation control applications.
Loading...
FES2236

FES2236

FES5312

FES5312

FES7035

  • Aluminum alloy rugged micro box
  • Fan less embedded system
  • Atom D2550 Dual-Core 1.86GHz Processor
  • Extended working temperature range from -20°C to 60°
  • Support GSM / GPRS / HSDPA / GPS & ignition power control
  • Dual display port (DVI-I + DVI-D)
  • 2 M12 LAN and 4 COM ports
  • 1 x PCI-104 slot & 2 x mini PCI-E expansion slots
  • 12 or 24 VDC power input with ATX function
$1,135.00
Availability: In stock
SKU
FES7035
Email
Fan less embedded PC with Atom D2550 Dual-Core 1.86GHz CPU, dual display (DVI-I + DVI-D), support GPS, 4 COM port, DC power input, 1 PCI-104 slot and 2 Mini PCI express expansion slots. has rugged aluminum chassis and extended -20 to 60 degree C working temperature.
Construction
Rugged aluminum enclosure
Embedded board
CPU Type: Atom D2550 1.86GHz Dual Core fan less processor
Chip set: NM10 south bridge chipset
Memory: 1 x DDR-III SODIMM socket, Max. 4 GB
Watchdog time: programmable WDT from 1 to 255 seconds
Graphic
Intel graphic Core 640Mhz
Support AVC/H.264, VC!/ WMV9, MPEG2 HW engine and blue-ray
Support HDCP 1.3 and PAVP 1.1C content protection
Support DXVA 2.0, Overlay DO, MS COPP and PVP-OPM
Support OpenGL 3.0 and DirectX 9
Enabling key ISVs-Core, Cyberlink and ArcSoft
Video input
Dual Video input: DVI-Iand DVI-D for independent video outputs
support 1920x 1200 and 1080P display resolution
3.5G mobile wireless support
Support GSM/ GPRS/EDGE/WCDMA/HSDPA
Flexible support tri-band or quad-band
GPS support
SiRF-3 high sensitivity GPS, 20 channel tracking
Expansion slot
1 x PCI-104 expansion module
2 x mini PCI-Express for wireless 802.11 b/g/n LAN card
Drive bay
1 x 2.5 inch drive bay for SATA hard drive or SSD
1 x mSATA
Front panel control
LED indicator for power and hard drive
Power on/off and system reset buttons / GPRS power button
I/O Port (standard)
4 x COM port, 2 for RS-232/422/485, 2 for RS-232
4 x USB2.0
4 x female M12, 2 for LAN, 2 for USB
2 x Audio port: Line-out, Mic-in
I/O ports (option)
1 x 8 bit GPIO with TTL level
Power supply
6V to 34VDC input with AT / ATX function
12 VDC / 1.7A, 24VDC / 0.85A
Power adapter: AC to DC, DC 12V 60W
Power consumption (with HD): typical 17W, Max 22W
System Support
Windows XP, Linux, Windows 7
Mounting
Integrated mounting bracket for Desk or Wall mount
Dimension
7.87"(W) x 5.34"(H) x 7.30"(D)
Weight
9.24lb
Environmental
Operating Temperature:-20 °C ~ 60°C (SSD) / -20°C ~ 60°C (HDD)
Storage Temperature: -40°C to 85 °C
Humidity: 10~90%, non-condensing
Vibration: 10~500Hz 2G RMS random vibration, 3 axes
Shock: 50G RMS, 11 ms duration
Certification
CE / FCC Class A

FES 7035
Fanless embedded system, Atom D2550 Dual Core 1.86GHz CPU, up to 4GB DDR-III memory, 2.5 inch hard drive drive bay, 2 M12 LAN, 4 COM ports, 1 x PCI-104 slot, 2 x mini PCI-E expansion slots, dual display (DVI-I + DVI-D). Desk or Wall mount ready.

Price:$1135 .00

Document
Description
Download Link
file iconFES7035-DATA.pdf
Data Sheet

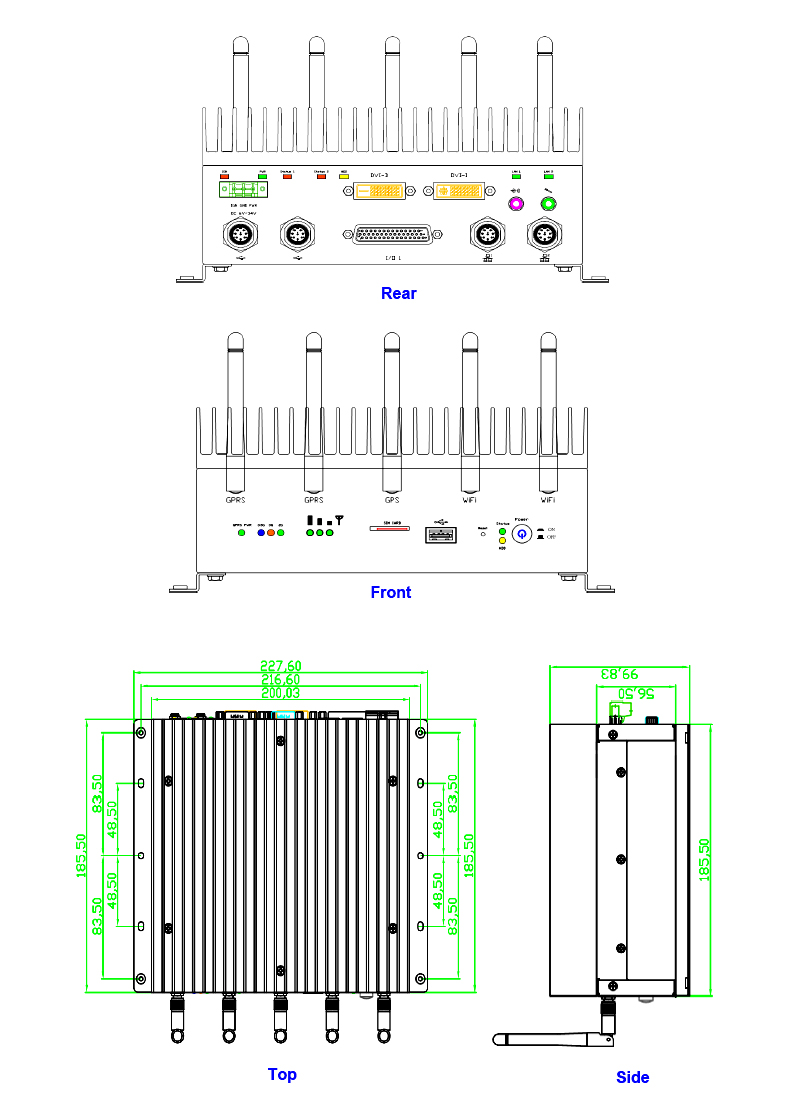

file iconFES7035-DIM.pdf
Dimension
file iconFES7035-UM.pdf
User Manual
  • FES7035
    Fan less embedded computer
    Atom D2550 1.86GHz Dual-Core CPU
    2GB SODIM memory
    250GB hard drive
    Dual DVI video out port
    Support GSM / GPS / HSDPA
    4 COM ports
    wall mount ready
    Steel case with aluminum heat sink
    12VDC power input option for AC adapter
    -20 to 60 degree C working Temp
    Starting at:
    $1,135.00
FES7035
$1,135.00

Construction

Onboard system
  The embedded system is powered by Atom D2550 Dual Core 1.86GHz processor with an extended operating temperature range of -20°C ~ 60°C. The 1.86 GHz D2550 processor and graphic Core 640 Mhz are more than capable of driving HD media, and the dual video ports (DVI-I + DVI-D) support independent video outputs. Two M12 LAN, eight COM ports, four USB 2.0 ports. Wireless connectivity is supported via the PCIe Mini Card slot .
Storage Device
The system comes with a standard 2.5 inch SATA HD.

Expansion Slots
We provide 1 x PCI-104 slot and 2 x mini PCI-E slot  for the expansion.
Power Supply
The fanless industrial PC uses the industry-grade Phoenix type or DC-jack power connector plug, and supports a 6VDC to 34VDC power supply with ATX power function.
Mounting
The integrated mounting brackets make the system easy to mount securely and out of the way for embedded computer applications.
