Industrial computer integrated Atom N2600 1.6GHz CPU into a compact and rugged enclosure with an -20°C ~ 60°C (with SSD) extended working temperature, has VGA output for 1900 x 1200 resolution and 12V DC power input with AT or ATX function. It integrated DIN rail mounting bracket for automation control applications.
Loading...

FES2213

  • Aluminum alloy rugged micro box
  • Fan less embedded system
  • Atom N2600 Dual-Core 1.6GHz Processor
  • Extended working temperature range from -20°C to 60°C
  • VGA display port, support 1920 x 1200 display resolution
  • 2 COM ports and 2 USB ports
  • 1 x half size mini PCI-E expansion slots
  • 12 or 24 VDC power input with AT or ATX function
Availability: In stock
SKU
FES2213
Email
Fan less embedded computer with Atom N2600 Dual-Core 1.6GHz processor, VGA with 1900 x 1200 resolution and 1 half size Mini PCI express expansion slot, has rugged aluminum chassis with DIN-rail mount ready and extended -20 to 60 degree C working temperature.
Construction
Rugged aluminum enclosure
Embedded board
CPU Type: Atom N2600 1.6GHz Dual Core fan less processor
Chip set: NM10 south bridge chipset
Memory: 1 x DDR-III SODIMM socket, Max. 4 GB
Watchdog time: programmable WDT from 1 to 255 seconds
Graphic
Intel graphic Core 400Mhz
Support AVC/H.264, VC!/ WMV9, MPEG2 HW engine and blue-ray
Support HDCP 1.3 and PAVP 1.1C content protection
Support DXVA 2.0, Overlay DO, MS COPP and PVP-OPM
Support OpenGL 3.0 and DirectX 9
Enabiling key ISVs-Core, Cyberlink and ArcSoft
Video input
VGA video input
support 1920x 1200 and 1080P display resolution
Expansion slot
1 x half size mini PCI-Express for wireless 802.11 b/g/n LAN card
Drive bay
1 x 2.5 inch drive bay for SATA hard drive or SSD
1 x mini PCI-Express mSATA
I/O Port (standard)
2 x COM port, 2 for RS-232
2 x USB2.0
1 x RJ-45 Ethermnat ports, 100/1000Base-TX
3 x Audio port: Line-in, Line-out, Mic-in
Front panel control
LED indicator for power and hard drive
Power on/off and system reset buttons
Power supply
DC 12V input, option for DC 24V input
12 VDC/1.7A, 24VDC/0.85A, AT / ATX power type
Power adapter: AC to DC, DC 12V/5A 60W (Option)
Power consumption (with HD): typical 7W, Max 10W
System support
Windows XP, Linux, Windows 7
Mounting
Integrated mounting bracket for Din-rail mount

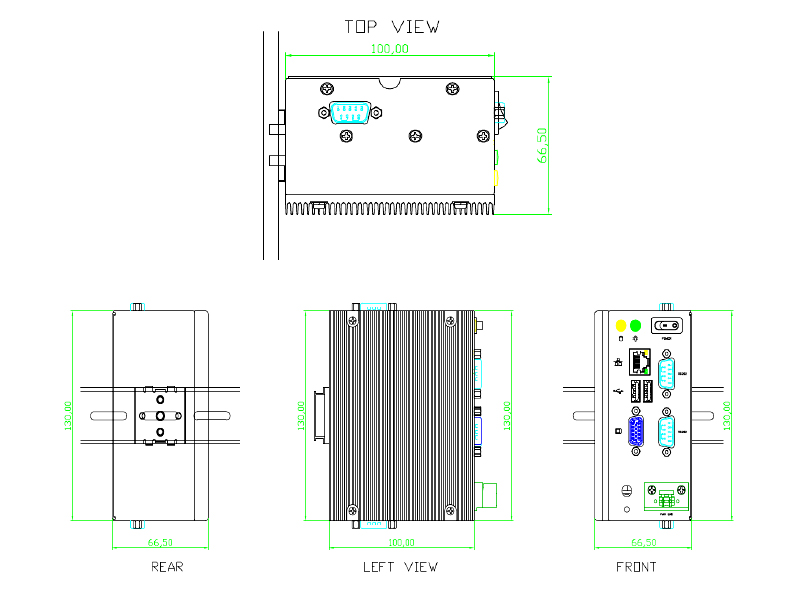

Dimension
2.62"(W) x 5.1"(H) x 3.94"(D)
Weight
3.3lb
Environmental
Temperature
Operation:
-20°C ~ 60°C (SSD)
-20°C ~ 45°C (HDD)
Storage: -20°C to 80°C
Humidity: 10~90%, non-condensing
Certification
CE / FCC Class A

FES 2213
Fanless embedded system, Atom N2600 Dual Core 1.6GHz CPU, up to 4GB DDR-III memory, 2.5 inch HDD drive bay and 2 x COM ports.
1 x half size mini PCI-E expansion slots and Din-rail mount ready.

Price:$ 770.00

Document
Description
Download Link
file iconFES2213-SP.pdf
Spec Sheet
file iconFES2213-UM.pdf
User Manual
  • FES2213
    Fan less embedded computer
    Atom N2600 1.6GHz Dual-Core CPU
    2GB SODIM memory
    250GB hard drive
    VGA video out port
    1 half size mini PCI express expansion slot
    DIN-rail mount ready
    Steel case with aluminum heat sink
    12VDC power input option for AC adapter
    -20 to 60 degree C working Temp
    Starting at:
FES2213

Construction

Onboard system
  The embedded system is powered by Atom N2600 Dual Core 1.6GHz processor with an extended operating temperature range of -20°C ~ 45°C. The 1.6 GHz N2600 processor and graphic Core 400 Mhz are more than capable of driving HD media, and the VGA video port supports video output with 1920 x 1200 resolution. One Gb LAN, two COM ports, two USB 2.0 ports. Wireless connectivity is supported via the PCIe Mini Card slo .
Storage device
The system comes with a standard 2.5 inch SATA HD.

Expansion slots
We provide 1 x half size mini PCI Express slot for the expansion.
Power supply
The fan less industrial PC uses the industry-grade Phoenix type or DC-jack power connector plug and supports a 12VDC or 24VDC power supply with ATX or AT power function.
Mounting
The integrated mounting brackets make the system easy to mount securely and out of the way for embedded computer applications.

References
What is an embedded computer?
An embedded system is a computer system that includes a specific function within a larger computerized system.

Compact Fanless Embedded Computer Supports VGA Display with 1920 x 1200 Resolutions
Housing in a 66.5 x 130 x 100mm rugged aluminum chassis with DIN-rail mounting capability, FES2213 utilizes Atom N2600 Dual-core 1.6 GHz processor; provides diverse I/O and up to 4 GB DDR3 system memory; and supports 2.5 in. SATA HDD, mini PCI-E mSATA and half size mini PCI-E expansion slot. It operates in temperature from -4°F to +113°F, supports a 12V or 24V DC power input and consumes less than 10 W during common usage.
