Industrial monitor integrated 17.3 inch 1920 X 1080 full HD LCD display panel with HD-SDI, HDMI video loop & VGA input in a 1U high low profile 17.36 inch depth rack mount monitor drawer, compliant with MIL-STD-810G. Option for 1000-nit high brightness display, DC power supply and touch screen.

RP30173

RP30173

  • IP54 rated IU high rackmount monitor
  • 17.36” depth monitor drawer
  • 17.3” 1920 x 1080 full HD industrial monitor
  • HD-SDI & HDMI video loop
  • MIL-STD-810G compliance
  • Option for resistive type touch screen monitor
  • Wide range 110~220VAC power input
  • Optional for 9~36V DC power input

Quick Overview

17.3 inch 1920 x 1080 full HD industrial monitor with HD-SDI, HDMI video loop & VGA input. -10°C to 55°C wide working temperature, compliant with MIL-STD-810G. 1U high 17.36 inch depth IP54 rated rack mount monitor drawer.

Material
Anodized coating aluminum steel

LCD Panel
Size: 17.3 inch, wide screen
Resolution: 1920 x 1080
Brightness: 400 nits, option for 1000nits high brightness
Contrast Ratio: 600:1
Viewing Angle: 160° (H) x 140° (V)
Display area (mm): 381.888 (H) x 241.812 (V)
Colors: 16.7M
Pixel Pitch (mm): 0.1989 (H) x 0.1989 (V)
Back Light : LED

On screen control
OSD Input: 5-key OSD buttons
OSD Function: PIP, Contrast, Color, Position,
Auto-adjustment, Factory Settings

LCD Enhancement
Optical bonding

Touch screen monitor (option)
5-wire resistive type touch screen (USB)

EMI Glass

AR EMI tempered glass

Slide Rail
Cold roll steel with Poxylubd lubricant, no bearing applied.
Travel distance: 343mm (12.5”)

Video Loop
1 x HD-SDI Input (BNC connector)
1 x HD-SDI Output (BNC connector)
1 x HDMI Input (D38999 connector)
1 x HDMI Output (D38999 connector)
1 x VGA Input (D38999 connector)

Power supply adapter
1 x 100~200V AC input (D38999 connector)
Option for 9~36V DC input
Power Consumption: 50 Watts (typically)

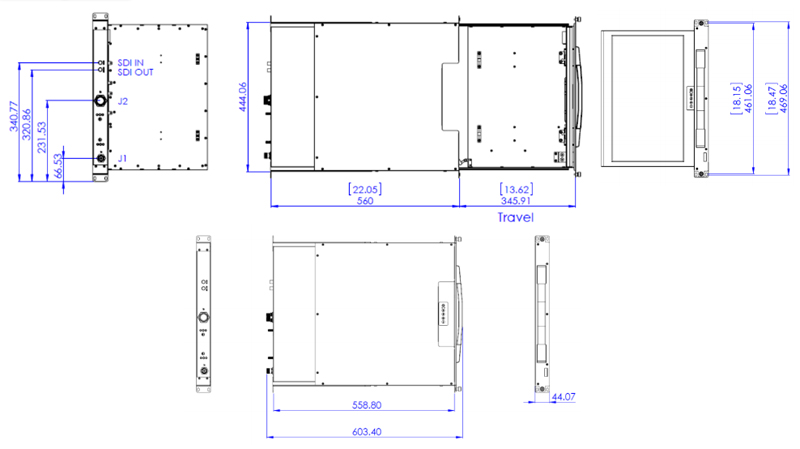

Dimension
21.97” (W) x 17.36” (D) x 1.73” (H)

Weight
17.64lb

IP Grade
IP54

Environmental
Operating Temperature: -10°C to 55°C (14°F to 131°F)
Storage Temperature: -30°C to 80°C (-22°F to 176°F)
Humidity: MIL-STD-810G Method 507.4
Vibration: MIL-STD-810G Method 514.6 (Table 514.6C-VI)
Shock: MIL-STD-810G Method 516.6
EMI: CE102, RE102 Compliance



RP30173:
17.3 inch 1920 x 1080 full HD industrial monitor, 1U high rack mount monitor drawer, IP54 rated anodized coating aluminum steel housing, HD-SDI & HDMI loop, VGA input, 110~220V AC power, wide working temperature, compliant with MIL-STD-810G. Option for 1000-nit high brightness display, DC power input & resistive type touch screen monitor.

Document Description Download Link
file icon RP30173-SP.pdf Spec Sheet
file icon RP30173-UM.pdf User Manual
