Rack mount monitor comes with 24.1 inch 1920 x 1200 high display resolution industrial monitor, VGA video input port, stereo speaker with PC audio input and 10U high and 25.6 inch wide rack mount monitor. Option for Video/TV, SV+AV, SV+AV+TV & touch screen with USB connector.

Skip to the beginning of the images gallery

PM-S0154

APS9550

RMW8241

10U high Rackmount monitor
24.1 inch 1920 x 1200 industrial monitor
Support Full HD with 1080P resolution
Option for touch screen monitor
VGA video input
Option for Video/TV, SV+AV, SV+AV+TV video input
2 x 2W stereo speaker
90~260VAC external power adapter

$1,345.00

Availability: In stock

SKU

RMW8241

24.1 inch 1920 x 1200 LCD panel with VGA video input and stereo speaker, has 10U high and 25.6 inch wide rack mount monitor enclosure, Option for touch screen and S-Video+Audio +TV video input.

Specification

Construction: Heavy-duty steel

LCD panel: Size: 24.1 inch wide screen full HD
Max Resolution: 1920 x 1200
Brightness: 300
Contrast Ratio (typ) : 1000:1
Viewing Angle (H/V): 178° x 178°
Active Area (mm): 518.4 x 324.0
Colors: 16.7 M
Signal Input: VGA
Backlight: LED
MTBF (hrs): 35,000

Video input: VGA video input (std)
Option for video input
Video/TV
SV + AV
SV + AV + TV

Touch screen monitor: Resistive or Capacitive type touch screen, USB port

Sound: 2 x 2W Power

Protection (Option): Protected glass (AR/AG)

Front panel control: power on/off switch
OSD membrance switch

Connectors: 1 x VGA port (15 pin female D-Sub)
1 x PC Audio (stereo headphone jack)
1 x DC power plug

Power adapter: External auto-sensing 90 to 260VAC, 50/ 60Hz power adapter

Mounting: Wall mount, VESA (100x100mm) mount & Rackmount ready

Environmental: Operating: 0°C to 50°C (32°F to 122°F)
Storage: -20°C to 60°C (4°F to 140°F)
Relative humidity: 10~90%, non-condensing

Weight: 13.5lbs

Dimension: 25.6" (W) x 5.6" (D) x 16.9" (H)

Casing Color: Black

Regulatory: FCC, CE

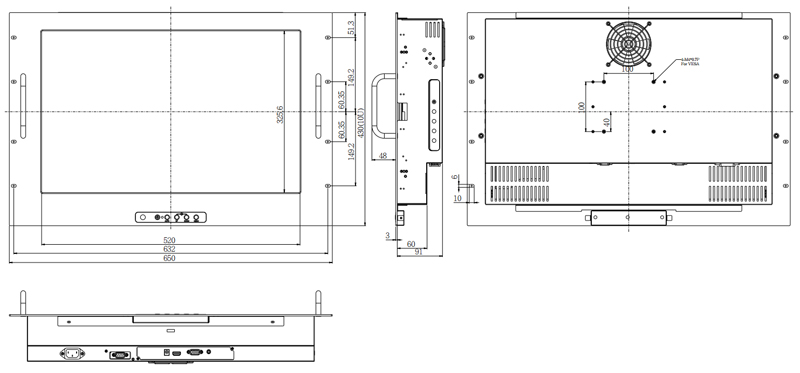

Dimensions

Order Info

RMW8241:
24.1 inch 1920 x 1200 full HD widescreen industrial monitor & 10U high rack mount monitor, black color.
VGA video input, Option for touch screen monitor and Video/TV, SV+AV, SV+AV+TV video input.
Price start from: $1,345.00

Downloads

Document

Description

Download Link

RMW8241-SP.pdf

Spec Sheet

Configure Now

RMW8241

Rack mount monitor
24 inch 1920 x 1200 LCD panel
VGA video input
Option for DVI video input
option for touch screen with USB connector
Built-in 2W stereo speaker and PC audion inpt
110/220 VAC 50 Watt power supply
10U high rack mount monitor

Starting at:
$1,345.00

RMW8241

$1,345.00

LCD monitor

24" 1920 by 1200 wide screen monitor

Video Input

VGA

DVI + $50.00

Power Supply

N/A

110/220VAC 60W water proof power adapter + $165.00

Qty:

LCD Monitor:
The 24.1 inch wide screen industrial monitor supported 1920 x 1200 high display resolution and LED back light LCD panel with VGa video input. The rack mount monitor presented a 24.1-inch diagonal display area LCD with 250nit brightness and 5ms response time. Ultra excellent display quality is supported by a maximum contrast ratio of 1000:1 and a resolution of up to 1920x1200 pixels for the monitor. It provides an 170 x 160 degree viewing angle for an unparalleled viewing ability. The wide screen with a display area of 531.36 x 3298.89mm & will display 16.7M colors (True color). Optional capacitive or resistive touch screen with USB connectorr is available.

Rack housing:
The construction of the rugged monitor is of a heavy-duty steel. It features an all steel construction with a rack mountable aluminum bezel. Rugged monitor comes with a metal ruggedized housing to fit into the standard 19" rack cabinet. The rack mount monitor is designed to meet harsh environmental standards.

Power Supply:
The 24.1-inch LCD monitor comes with an 90/260VAC auto-switch external power adapter.

Mounting:
The rackmount monitor is ready to mount into the 25.6-inch rack mount cabinet . It occupies a 10U high rack mount unit .
