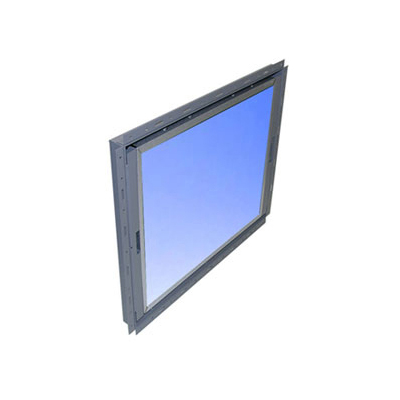

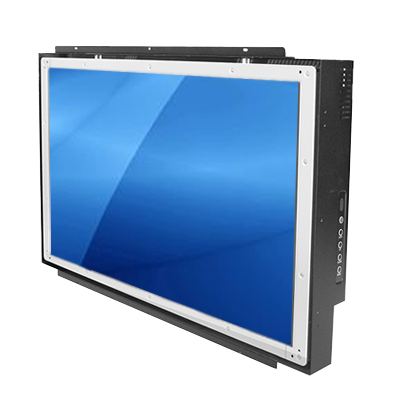

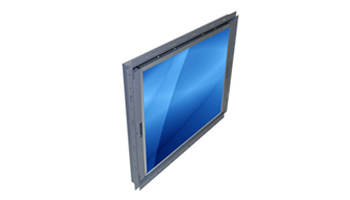

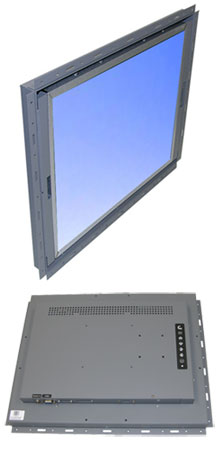

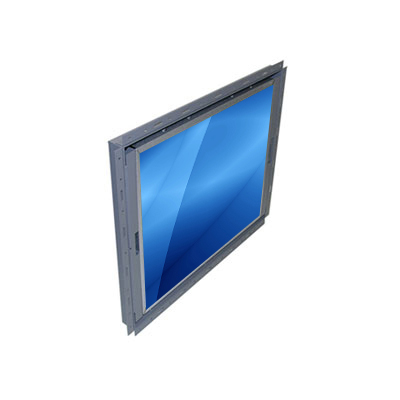

PM6200
20.1" open frame monitor with a 1600 x 1200 CCFL backlight LCD display, VGA + HDMI + DVI video input, AC input with built-in power, and an open frame metal enclosure.
Key Features
- ✓20.1 inch open frame LCD monitor
- ✓Supports 1600 x 1200 display resolution
- ✓300-nits brightness
- ✓VGA + HDMI + DVI input, option for VGA + HDMI + DP input
- ✓Option for AG glass, AR glass, Resistive touch touch
- ✓Option for EMI mesh shielding, UV film, sensor, digital signage
- ✓Wall and VESA (100 x 100mm) mount
- ✓AC input with built-in power
The PM6200 is a 20.1-inch open frame LCD monitor supporting a 1600 x 1200 CCFL backlight LCD monitor, VGA + HDMI + DVI video input, and AC power input with built-in power. This open frame monitor is constructed with a heavy-duty steel enclosure and front mounting holes, making it ideal for industrial factory use, commercial applications, kiosks, POS systems, and custom projects. Options are available for EMI mesh shielding or UV film, AG or AR glass, Resistive touch screen, light or motion sensor, MP-1080P digital signage, external OSD box, and DC input.
| Material | Heavy-duty steel |
| LCD Panel | Size: 20.1 inch Max Resolution: 1600 x 1200 Brightness (cd/m²): 300-nits Contrast Ratio (typ.): 1000:1 Viewing Angle (H/V): 160º x 160º Active Area (mm): 408(H) x 306(V) Pixel Pitch (mm): 0.255(H) x 0.255(V) Response Time: ≤ 8ms Backlight: CCFL Colors: 16.7M MTBF (hrs): 35,000 |
| LCD Enhancements(Option) | Option for EMI Mesh Shielding or UV film Option for AG Glass, AR Glass, or Resistive touch screen |

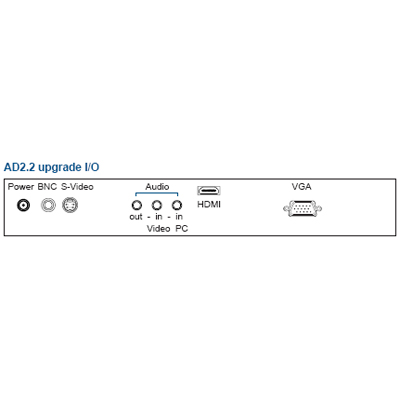

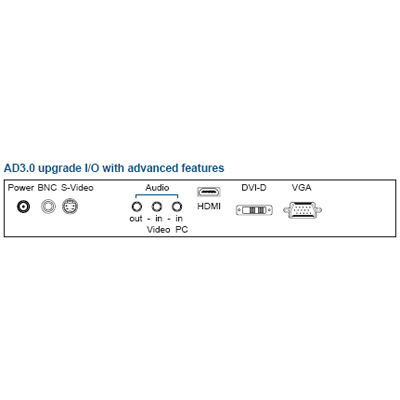

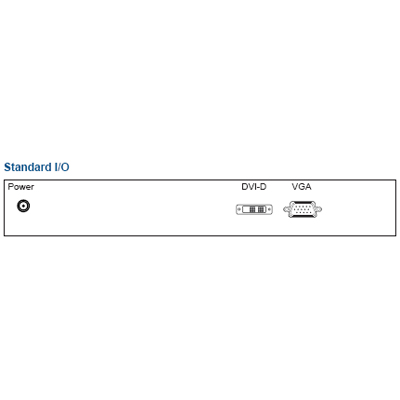

| Video Input | VGA + HDMI + DVI input Option for VGA + HDMI + DP input |

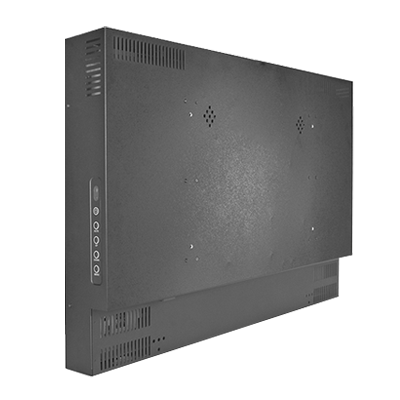

| OSD Buttons | 5 x OSD buttons for Power On/Off, Auto, Up, Down, Menu Option for external OSD box |
| Sensor (Option) | Option for light sensor or motion sensor |
| Digital Signage (Option) | Option for MP-1080P |
| Power Supply | Input: AC-IN with built-in power Operation / Power Saving: 117.5 watt, < 5 watt (Support DPMS) Option for Isolated 9-36V DC-IN or 24V DC-IN |
| Mounting | Wall and VESA (100mm) mount |
| Environmental | Operating Temperature: 0°C to 50°C Storage Temperature: -20°C to 60°C Humidity: 10%~90%, non-condensing |
| Safety | FCC, CE |
| Weight | 19.84 lb / 9 kg |
| Dimension | 18.19"(W) x 15.12"(H) x 2.76"(D) |
