KDR-HD17
17.3" 1920 x 1080 FHD multi-display rackmount console drawer with dual or triple displays, a 104-key keyboard w/ touchpad, VGA + DVI-D video input, and a 2U high rack enclosure.
Key Features
- ✓2U multi-display rackmount display drawer
- ✓Dual or triple 17.3" Full HD industrial LCD panels
- ✓Supports 1920 x 1080 native resolution
- ✓104-key keyboard with touchpad
- ✓VGA + DVI-D video input
- ✓Option for HDMI 1.4/HDCP 1.4 or DP 1.0/HDCP 1.3 (per panel)
- ✓Built-in solid bearing slide rails & dual stereo speaker
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V DC power input
The KDR-HD17 is a 2U multi-display console drawer featuring 17.3" LCD monitors supporting 1920 x 1080 Full HD native resolution, VGA + DVI-D video input, a 104-key keyboard with touchpad, and 100/240VAC power input in a 2U high rack enclosure.
| Material | Heavy-duty steel |
| LCD Panel | Size: 17.3 inch Resolution: 1920 x 1080 Brightness (cd/m²): 300 Contrast Ratio (typ.): 1000:1 Display Area (mm): 381.888H x 214.812V Viewing Angle (H/V): 170° x 170° Response Time (ms): 25 Dot Pitch (mm): 0.1989 Colors: 16.7M, 8-bit Surface Treatment: Anti-Glare, Hard-coasting Surface Hardness: 3H Backlight Type: LED MTBF (hrs): 15,000 |

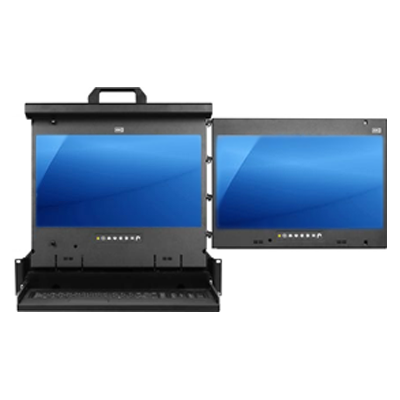

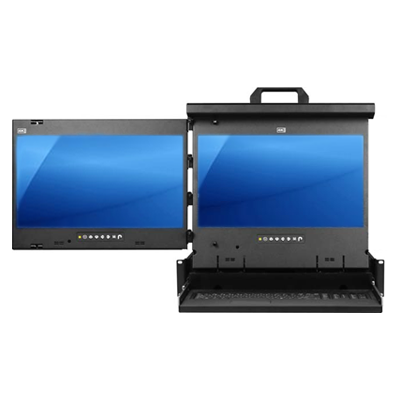

| LCD Mounting Position | KDR-HD17-2L: Dual display (left hinged mount) KDR-HD17-2R: Dual display (right hinged mount) KDR-HD17-3: Triple display |
| KB & MS | 104-key keyboard with touchpad pointing device Option for trackball pointing device |
| Video Input | Standard: VGA + DVI-D video input (per panel) Option: HDMI 1.4/HDCP 1.4 OR DP 1.0/HDCP 1.3 (per panel) |
| Front Panel Control | Power on/off switch OSD (on-screen display) |
| Drawer Design | Built-in solid bearing slide rails Mounting Distance: 21.7~31.1 inch (550~790 mm) |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50/60Hz Consumption Per Panel: Max. 14W, Saving Mode 2W Option for 12V / 24V / 48V DC power input |
| Cables | KDR-HD17-3: 6ft DVI-D cable x 3 + USB cable x 2 KDR-HD17-2L/2R: 6ft DVI-D cable x 2 + USB Cable x 2 |
| Color | Black |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA |
| Weight | Dual Display: 46.2 lb / 21 kg Triple Display: 56.5 lb / 25.7 kg |
| Dimension | Product: 17.4"(W) x 21.7"(D) x 3.5"(H) Packing: 22.8"(W) x 26.9"(D) x 7.8"(H) |
Available Configurations

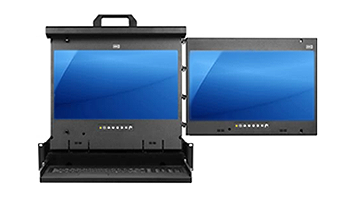

KDR-HD17-2
Dual 17.3" 1920 x 1080 FHD multi-display rack LCD console drawer with VGA + DVI-D video input and a 2U high 21.7" depth rackmount drawer.
- ✓ 2U multi-display rackmount display drawer
- ✓ Dual 17.3" Full HD industrial LCD panels
- ✓ Supports 1920 x 1080 native resolution
- ✓ 104-key keyboard with touchpad
- ✓ VGA + DVI-D video input

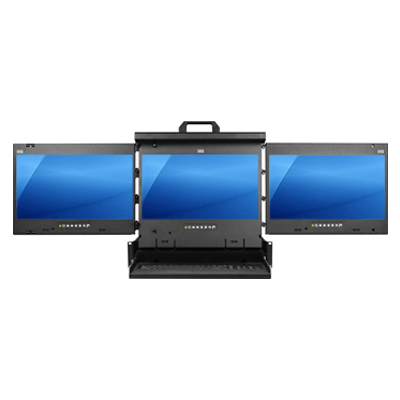

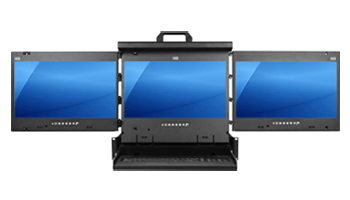

KDR-HD17-3
Multi-display rackmount console drawer with triple 17.3" 1920 x 1080 Full HD LCD panels and VGA + DVI-D video input in a 2U high 21.7" depth rackmount drawer.
- ✓ 2U multi-display rackmount display drawer
- ✓ Triple 17.3" Full HD industrial LCD panels
- ✓ Supports 1920 x 1080 native resolution
- ✓ 104-key keyboard with touchpad
- ✓ VGA + DVI-D video input
