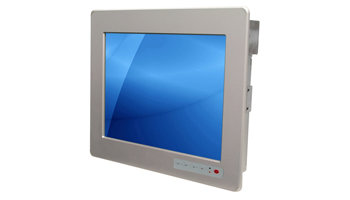

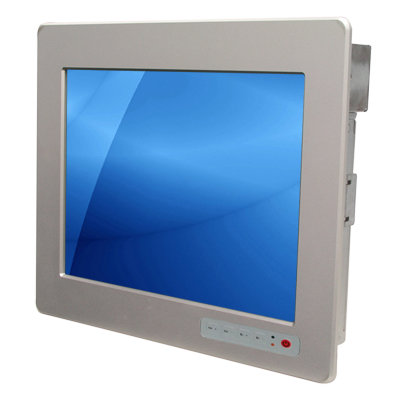

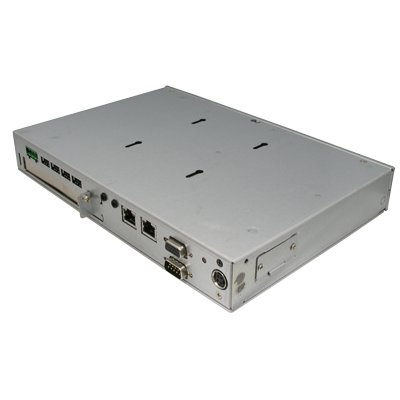

Fan less Panel PC, 12 inch 1024 x 768 touch screen monitor, Atom D2550 fan less embedded computer, 2GB memory, 160GB HD, IP65 rated aluminum front bezel, 12VDC power input with external power adapter & VESA or panel mount ready.
NOTICE! : PRODUCT EOL. PLEASE VISIT PANEL PCS FOR RELATED PRODUCTS.
Rugged Panel PC with IP65 compliant aluminum front bezel and 12 inch 1024 x 768 touch screen monitor, powered by Atom D2550 fan less embedded computer and modular designed for easy upgrade and maintenance for automation control application.
System Mainboard: IB806
CPU: Atom D2550 1M Cache, 1.86GHz dual core processor
RAM: 1033/1066 DDR3, up to 4GB
Drive bays: 1 x 2.5" HDD bay

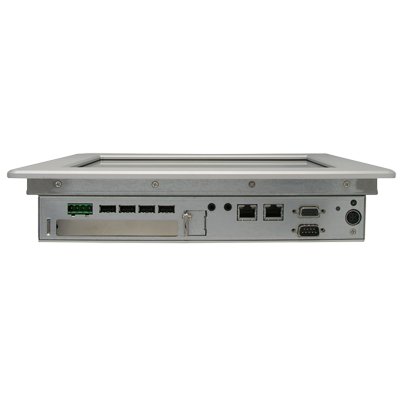

Connectors
COM1 RS-232/422/485
2 x Gigabit RJ-45 LAN
1 x 10/100 RJ-45 LAN
4 x USB 2.0 (USB Host. 1-Type)
1 x 12V DC-in
1 x VGA
1 x Speaker-out microjack
1 x Mic-in microjack
2 x SMA connector
Expansion
1 x PCI expansion slot
Touch screen
Resistive type touch screen monitor
Power supply
+12V DC-in 84W power adapter
IP Rating
Front Panel IP65
Mounting
VESA 100mm x 100mm
Color
Sliver
Environmental
Operating Temperature: 0 to 45 degree C
Storage Temperature: -10 to 60 degrees C
