The RMC5102 is a 5U rackmount GPU workstation designed for industrial, high-end business, and home use. It is equipped with a standard ATX motherboard and features Intel powerful Intel Core or AMD Ryzen processors that deliver the computing power needed to run the most demanding applications and programs. One of the most important features of this 5U rackmount GPU workstation is its support for the latest RTX 40 series graphics card from NVIDIA. The RTX 4090 24GB graphics card delivers unmatched performance, making it the perfect choice for demanding 3D graphics applications, gaming, and virtual reality. The workstation also features advanced cooling capabilities with support for a 360mm liquid cooling radiator, ensuring that the system remains cool and stable even under heavy loads. With a 1000W single ATX power supply, the system can handle high power demands without any issues.
2U Rackmount GPU Workstation with 12th Gen. Alder Lake Intel CPU - RMC2250 Acnodes

RMC2250

RMC3317 3U GPU RTX 4090 WORKSTATION

RMC3317

RMC5102

  • 5U rackmount GPU workstation
  • Standard ATX motherboard
  • Intel Core or AMD Ryzen processors
  • 16GB DDR4 memory (up to 32GB) & 500GB NVMe SSD
  • Designed for RTX 4090 24GB graphics card
  • Supports 1 x 360mm liquid cooling radiator
  • Supports sliding rail mounting holes for quick rail installation
  • Includes 1 x front USB Type-C port & 2 x front USB 3.0 ports
  • 2 x 3.5" internal + 4 x 2.5" internal drive bays
  • 1000W single ATX power supply
In stock
SKU
RMC5102
5U rackmount GPU workstation supporting standard ATX M/B, RTX 4090 24GB graphics cards, 8 x expansion slots, and excellent hardware versatility.
Construction
Heavy duty steel
System
Motherboard: Standard ATX motherboard
Processor:
RMC5102-A: AMD Ryzen processors
RMC5102-B: Intel Core i processors
Memory: 16GB (2 x 8GB) DDR4, up to 128GB
Storage: 500GB NVMe SSD
Drive Bays
2 x 3.5" internal drive bays (compatible with 3 x 2.5")
4 x 2.5" internal drive bays
Expansion Slots
Up to 8 x expansion slots
Expansion Card Size
Length: 455mm (without installing front fans and radiators)
Height w/ expansion slot retainer: 157mm
Height w/o expansion card retainer: 198mm
Graphics Card
Supports RTX 4090 24GB graphics cards
Front Panel Control
1 x USB Type C port
2 x USB 3.0 ports
1 x Power Status LED Indicator
1 x HDD Activity LED Indicator
2 x LAN Activity LED Indicators
Security
Side switch for chassis intrusion security
Cooling Fans
Front: 2 x 180mm and 120mm x 3 or 180mm x 2
Rear I/O: 120mm x 1 or 140mm x 1
Rear Fan Cage: 80mm x 2
Liquid CPU Cooler (Option)
Option for 1 x 360mm liquid cooling radiator
Limitation of CPU Cooler
Height w/ expansion card retainer: 181mm
Height w/o expansion card retainer: 192mm
Power Supply
1000W single ATX power supply
Option for 1200W single ATX P/S or 800W mini redundant P/S
Limitation of PSU
160mm ~ 190mm (Removal of 3.5" drive cage eliminates PSU depth limitation)
Color
Black
Weight
23.37 lb / 10.6 kg

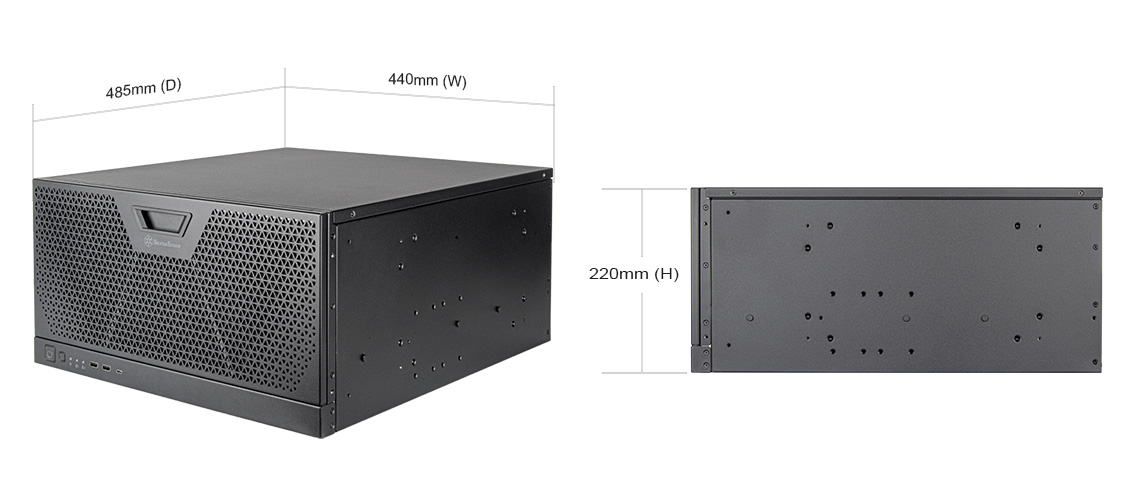

Dimension
Incl. Rear Fan Cage: 17.3”(W) x 8.66”(H) x 19.1”(D)
Excl. Rear Fan Cage: 17.3”(W) x 8.66”(H) x 20.87”(D)
Environmental
Operating Temperature: 0°C to 55°C
Humidity: 5~95%, non-condensing
Operating System
Option for Windows 11 Professional 64-Bit (TPM 2.0 Requited) OS
Compliance
CE, FCC, RoHS

RMC5102-A:
5U rackmount GPU workstation, standard ATX motherboard, AMD Ryzen processors, RTX 4090 24GB GPU , M.2 SSD storage, 1000W single ATX power supply.

RMC5102-B:
5U rackmount GPU workstation, standard ATX motherboard, Intel Core i processors, RTX 4090 24GB GPU, M.2 SSD storage, 1000W single ATX power supply.
