The RMC2820 is a 3U rackmount computer supporting a standard ATX motherboard with the latest Intel processors. The rackmount PC features 8 drive bays (6 x 5.25” open, 1 x 3.5” open, 1 x 3.5” hidden) and 7 x expansion slots in a 3U high 21" depth rackmount chassis. The system features two easy swap rear fans for enhanced cooling and front access dual USB ports. Designed to serve in a wide range of applications, the RMC2820 is fully customizable and offers options for additional storage space, removable drive bay options, add-on cards, graphic cards, and Windows OS.

Skip to the beginning of the images gallery

RMC8351

RMC8353A

RMC2820

3U high rackmount computer
21" depth rackmount chassis
14th/13th/10th Generation Intel processors
Standard ATX motherboard
7 x expansion slots
8GB RAM (Up to 64GB) & 250GB NVMe M.2 SSD
6 x 5.25" external, 1 x 3.5" external, 1 x 3.5" internal drive bays
2 x easy swap rear fans & front access dual USB ports
300W 2U power supply, option for 600W 2U power supply

In stock

SKU

RMC2820

3U rackmount computer with standard ATX M/B, latest Intel processors, 6 x 5.25" & 1 x 3.5" external drive bay, and 7 x expansion slots in a 3U high 21" depth rack chassis.

Specification

Construction: Heavy duty cold rolled steel
EIA-RS310D rackmount standard

Standard ATX M/B: Size: Up to 12” x 10.5” ATX motherboard
Processor:
RMC2820-A – Intel 10th /11th Generation Processor
RMC2820-B – Intel 14th Generation Processor
RMC2820-C – Intel 10th Generation Processor / Long Life Cycle M/B (Q2 2030)
Memory: 4 x DIMM memory sockets (up to 64GB)
On-board LAN, Audio, Video
SATA Controller
USB ports

Drive Bays: 6 x 5.25” external drive bays
1 x 3.5” external drive bay
1 x 3.5” internal drive bay

Expansion Slot: 7 x expansion slots

Front Panel Control: Power ON/OFF button
System Reset button
2 x USB ports

LED Indicator: LED indicators for Power & Drive Activity

Security: Front panel steel door with key lock

Air Filter: Removable and washable air filter

Cooling Fan: 2 x 60x25mm easy-swap fans
Option for 2 x 60x38mm fans

Power Supply: 300W 2U power supply
Option for 600W 2U power supply

Color: Black

Weight: 33 lb / 15 kg

Dimension: 19"(W) x 21"(D) x 5.25"(H)

Environmental: Operating Temperature: 0°C to 50°C (32°F to 122°F)
Humidity: 5~95%, non-condensing

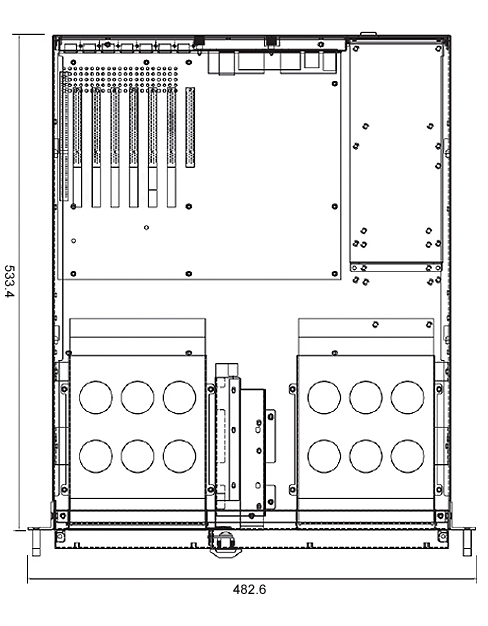

Dimensions

Order Info

RMC2820-A:
3U rackmount computer, Intel 10th/11th Generation processors, standard ATX motherboard, 8GB memory, 7 x expansion slots, 300W 2U power supply, 3U high 21" depth rack chassis, Black color.

RMC2820-B:
3U rackmount computer, Intel 14th Generation processors, standard ATX motherboard, 8GB memory, 7 x expansion slots, 300W 2U power supply, 3U high 21" depth rack chassis, Black color.

RMC2820-C:
3U rackmount computer, Intel 10th Generation processors, long-life cycle industrial ATX motherboard, 8GB memory, 7 x expansion slots, 300W 2U power supply, 3U high 21" depth rack chassis, Black color.

Downloads

Document

Description

Download Link

RMC2820-SP.pdf

Spec Sheet

Configure Now

PRODUCT DESCRIPTION:
The RMC2820 is a robust and versatile industrial computer engineered to excel in demanding industrial environments. With its rugged construction and high-performance components, the RMC2820 is designed to meet the rigorous requirements of various industrial applications, including manufacturing, automation, transportation, and more. Powered by the latest Intel® Core™ processors, the RMC2820 delivers exceptional computing power, enabling seamless multitasking and handling of intensive applications. Whether it's data analysis, machine vision, or real-time monitoring, the RMC2820 ensures smooth and efficient operation, even in the most demanding industrial environments.

Flexibility is key, and the RMC2820 offers a range of expansion options to adapt to specific application requirements. With multiple expansion slots, including PCIe and Mini PCIe, users can easily integrate additional peripherals and expansion cards to enhance functionality and connectivity. Connectivity is made effortless with a wide range of I/O ports, including USB, LAN, HDMI, and COM ports, ensuring seamless integration with various devices and peripherals. The RMC2820 also supports dual display output with high-resolution graphics, providing immersive visual experiences for monitoring and control applications.

Designed for reliability, the RMC2820 undergoes rigorous testing to ensure long-term stability and durability. Its fanless design ensures silent and efficient operation without the need for internal fans, reducing maintenance requirements and ensuring quiet operation in noise-sensitive environments. With its wide operating temperature range of -20°C to 60°C (-4°F to 140°F), the RMC2820 is capable of withstanding extreme temperature variations, making it suitable for deployment in diverse industrial environments. In summary, the Acnodes RMC2820 industrial computer offers exceptional performance, reliability, and versatility, making it the ideal solution for powering industrial computing needs across various industries.
