The RM6210 is a 9U 20.1-inch rackmount LCD monitor designed for use in server rooms and data centers. It features a native resolution of 1600 x 1200 and supports VGA + HDMI video input. The option for DVI-D, Audio, Speaker, or 3G/SD-SDI input provides flexibility for various applications. The RM6210 also comes with an optional resistive 1-pt touch screen with a USB port. This allows users to interact with the display directly, making it ideal for use in industrial control systems, kiosks, and other applications that require touch input. The monitor also features auto-sensing 100 to 240VAC, 50/60Hz power input and has the option for 12V/24V/48V/125V DC power input, making it easy to integrate into a variety of systems.
Loading...
RM6170 7U 17

RM6170

7U 19

RMW7190

RM6210

  • 9U 20.1" rackmount LCD monitor
  • Supports 1600 x 1200 native resolution
  • Front OSD (on-screen display) function
  • VGA + HDMI video input
  • Option for DVI-D, Audio, Speaker, or 3G/HD/SD-SDI input
  • Option for Resistive 1-pt touch screen - USB
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$1,470.00
Availability: In stock
SKU
RM6210
Email
20.1" 1600 x 1200 rackmount LCD monitor with VGA + HDMI video input, front OSD menu control, and 100/240VAC power input in a 9U high rackmount enclosure.
Construction
Heavy-duty steel
LCD Monitor
Size: 20.1 inch
Max Resolution: 1600 x 1200
Brightness (cd/m²): 300
Contrast Ratio (typ.): 800:1
Colors: 16.7M
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 16
Dot Pitch (mm): 0.255
Display Area (mm): 408H x 306V
Surface Treatment: Anti-glare, Hard-coating
Surface Hardness: 3H
Backlight: CCFL
MTBF (hrs): 45,000
Video Input
Standard: VGA + HDMI video input
Option: DVI-D, Audio, Speaker, or 3G/HD/SD-SDI input
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Connector
1 x VGA + 1 DVI-D
Front panel control
Power on/off switch
OSD membrane switch
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption: Max. 45 Watt, Standby 2 Watt
Option for 12V / 24V / 48V / 125V DC power input
Mounting
9U high rackmount monitor for standard 19" wide rackmount cabinet
Casing Color
Black front panel (RAL 9005)
Weight
18.7 lb / 8.5 kg

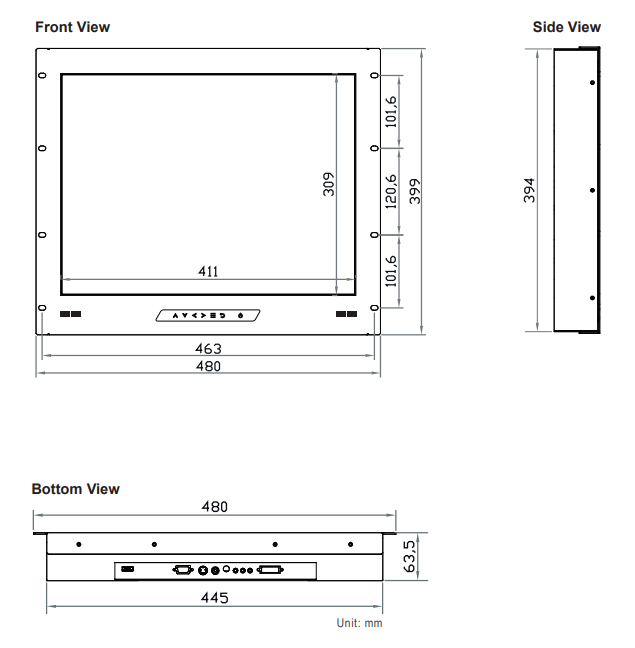

Dimension
Product: 18.9"(W) x 2.5"(D) x 15.7"(H)
Packing: 23"(W) x 4.9"(D) x 20.8"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11 ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA

RM6210:
20.1 inch 1600 x 1200 industrial LCD monitor, VGA + HDMI video input, front OSD functions, 100/240VAC power input, 9U high rackmount enclosure, Black color.

Document
Description
Download Link
file iconRM6210-SP(V1-2).pdf
Spec Sheet
file iconRM6210-UM(V1-2).pdf
User Manual
  • RM6210
    9U 20.1" rackmount LCD monitor
    Supports 1600 x 1200 native resolution
    Front OSD (on-screen display) function
    VGA + HDMI video input
    Option for DVI-D, Audio, Speaker, or 3G/HD/SD-SDI input
    Option for Resistive 1-pt touch screen - USB
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    Starting at:
    $1,470.00
RM6210
$1,470.00

PRODUCT DESCRIPTION
The RM6210 is a high-quality 20.1 inch rackmount LCD monitor designed for use in server rooms, data centers, and other applications where space is at a premium. With its native resolution of 1600 x 1200, this monitor offers crisp and clear images that are ideal for monitoring critical systems and applications. It also features front OSD menu control, allowing you to easily adjust settings. The RM6210 supports both VGA and HDMI video input, with options for DVI-D, Audio, Speaker, or 3G/HD/SD-SDI input as well. This makes it a versatile option for a wide range of applications, from surveillance and security to broadcasting and audio production. Additionally, the monitor comes with an option for a Resistive 1-pt touch screen, which can be connected via USB for added functionality and ease of use. The RM6210 is constructed from heavy-duty steel and features a black front panel with a RAL 9005 finish. It weighs 18.7 pounds and measures 18.9"(W) x 2.5"(D) x 15.7"(H), making it easy to install and use in virtually any standard 19" wide rackmount cabinet. It also offers a wide range of environmental and compliance features, including CE, FCC, RoHS, and TAA compliance, making it a reliable and durable option for your server room or data center needs.
