High brightness sunlight-readable rackmount monitor drawer comes with a 19 inch 1280 x 1024 industrial LCD, 1000-nit high brightness display, VGA + DVI-D video input, 2-position lock for system security, and a 1U high 19.7 inch short-depth rackmount drawer. Option for touch screen, HDMI / BNC / S-Video, Audio, and DC power input.
1U 17

RPH1170

RPH1190

  • 1U high 19.7 inch short depth rackmount drawer
  • 19 inch 1280 x 1024 industrial LCD monitor
  • 1000-nit high brightness display
  • VGA + DVI-D video input
  • Option for BNC, HDMI w/ speaker, or Audio input
  • Option for Resistive or Capacitive type touch screen
  • External 100/240 auto-sensing AC power supply
  • Option for 12V / 24V / 48V / 125V / 250V DC power input
$1,501.00
Availability: In stock
SKU
RPH1190
19" 1280 x 1024 rackmount LCD monitor drawer with a 1000-nit high brightness display, VGA + DVI-D video input, and 1U high 19.7 inch short-depth rackmount drawer.
Material
Heavy-duty steel
LCD Panel
Size: 19 inch
Max Resolution: 1280 x 1024
Brightness (cd/m²): 1000
Contrast Ratio (typ.) : 1000:1
Viewing Angle (H/V): 170° x 160°
Active Area (mm): 376.32H x 270.33V
Colors: 16.7M
Backlight: LED
MTBF (hrs): 30,000
Video Input
VGA + DVI-D video input
Option for BNC, HDMI w/ speaker, or Audio input
Touch Screen (Option)
Resistive or Capacitive type touch screen monitor - USB
Front Panel Controls
Power on/off switch
OSD (On Screen Display) function
On Screen Control
Auto-Adjustment for contrast, balance, H-position, V-position, phase, brightness
Drawer Design
Solid bearing slide rails
Mounting Distance: 20.1~29.1 inch (510~740 mm)
Power Supply
Input: Auto-sensing 100 to 240VAC, 50/60Hz
Consumption: Max. 39 Watt, Standby 2 Watt
Option for 12V / 24V / 48V / 125V / 250V DC power input
Weight
27.5 lb / 12.5 kg

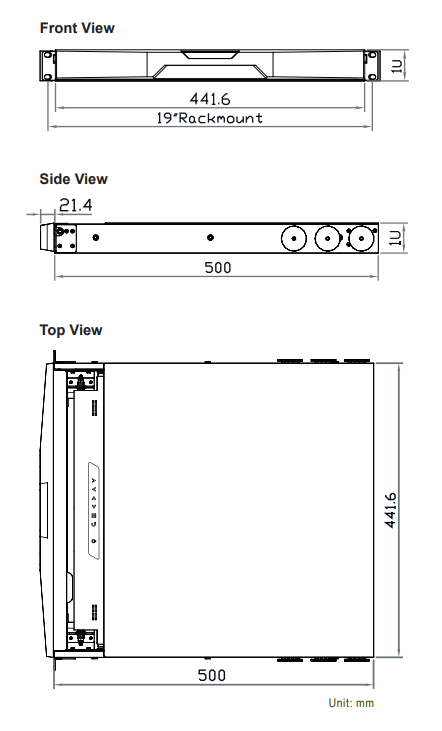

Dimension
17.4" (W) x 19.7" (D) x 1.73" (H)
For video input, touch screen, and DC power option:
Casing depth will increase from 19.7" to 22.4"
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude: 16,000 ft, Operating; 40,0000 ft, Non-operating
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Safety
CE, FCC

RPH1190:
19 inch 1280 x 1024 industrial LCD monitor, 1000-nit high brightness display, VGA + DVI-D video input, 100/240VAC power supply, 1U high 19.7 inch short-depth rackmount enclosure, Black color. Option for Resistive or Capacitive type touch screen, BNC / HDMI / Audio input, and DC power input.

Document
Description
Download Link
file iconRPH1190-SP.pdf
Spec Sheet
file iconRPH1190-UM.pdf
User Manual
