Sunlight readable rackmount monitor drawer with a 17 inch 1280 x 1024 industrial LCD panel, 1000-nit high brightness display, VGA + DVI-D video input, 2-position lock for system security, and a 1U high 19.7 inch short-depth rackmount drawer. Option for HDMI / BNC / Audio / 3G-SDI input, Resistive or Projected Capacitive type touch screen, DC power input.
1U 19

RPH1190

1U 17.3

RPH1173

RPH1170

  • 1U high 19.7 inch short depth rackmount drawer
  • 17 inch 1280 x 1024 industrial LCD monitor
  • 1000-nit high brightness display
  • VGA + DVI-D video input
  • Option for HDMI / BNC / Audio / 3G-SDI input
  • Option Resistive or Projected Capacitive type touch screen
  • External 100/240 auto-sensing AC power input
  • Option for 12V / 24V / 48V / 125V DC power input
Availability: In stock
SKU
RPH1170

17" 1280 x 1024 1000-nit high brightness sunlight-readable rackmount LCD drawer with VGA + DVI-D video input and a 1U high 19.7" short-depth rackmount enclosure.

Material
Heavy-duty steel
LCD Panel
Size: 17 inch
Max Resolution: 1280 x 1024
Brightness (cd/m²): 1000
Contrast Ratio (typ.) : 1000:1
Viewing Angle (H/V): 170° x 160°
Active Area (mm): 337.92H x 270.33V
Colors: 16.7 M
Backlight: LED
MTBF (hrs): 50,000
Video Input
VGA + DVI-D video input
Option for HDMI / BNC / Audio / 3G-SDI input
Touch Screen (Option)
Option for Resistive or Projected Capacitive type touch screen
Front Panel Controls
Power on/off switch
OSD (On Screen Display) function
OSD Control
Auto-Adjustment for contrast, balance, H-position, V-position, phase, brightness
Drawer Design
Solid bearing slide rails
Mounting Distance: 20.1~29.1 inch (510~740 mm)
Power Supply
Input: Auto-sensing 100 to 240VAC, 50/60Hz
Consumption: Max. 30 Watt, Standby 2 Watt
Option for 12V / 24V / 48V / 125V DC power input
Weight
23.1 lb / 10.5 kg

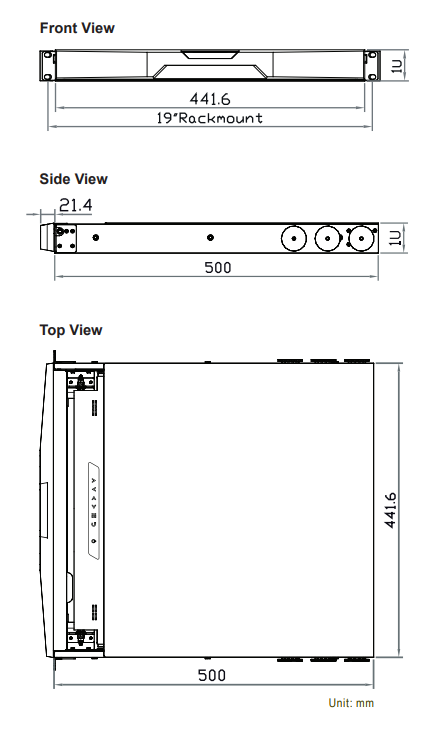

Dimension
17.4"(W) x 19.7"(D) x 1.73"(H)
*Casing depth will increase if video input, touch screen, or DC power option is selected
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude: 16,000 ft, Operating; 40,0000 ft, Non-operating
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Safety
CE, FCC

RPH1170:
17 inch 1280 x 1024 industrial LCD monitor, 1000-nit high brightness display, VGA + DVI-D video input, 100/240VAC power input, 1U high 19.7 inch short-depth rackmount enclosure, Black color. Option for HDMI / BNC / Audio / 3G-SDI input, Resistive or Projected Capacitive type touch screen, and DC power input.
