The RMC8406A is a 4U rackmount computer designed for business applications, networking, and data centers. The rackmount computer supports a micro ATX motherboard with the latest Intel processors. It features 2 x 5.25” external drive bays and 4 x 2.5” internal drive bays in a 4U high 11.9" short-depth rackmount chassis with a steel front door. The RMC8406A is fully customizable and offers options for additional storage space, removable drive bay options, add-on cards, graphic cards, and Windows operating systems.
RMC8406A
- 4U high rackmount computer
- 11.9” short-depth rackmount chassis
- 14th/13th/10th Generation Intel processors
- Micro ATX motherboard
- 4 x expansion slots
- 8GB RAM (Up to 64GB) & 250GB NVMe M.2 SSD
- 2 x 5.25" external & 4 x 2.5" internal drive bays
- Front single door with one thumbscrew
- 400W ATX power supply, option for 500W or 650W ATX P/S
In stock
SKU
RMC8406A
4U rackmount computer with a micro ATX M/B, the latest Intel processors, and 2 x 5.25" external drive bays in a 4U high 11.9" short-depth rack chassis.
- Construction
- Heavy duty cold rolled electroplated steel
- Micro ATX Motherboard
- Size: 9.6” x 9.6” ATX motherboard
Processor:
RMC8406A-A: Intel 10th/11th Generation Processor
RMC8406A-B: Intel 14th/13th Generation Processor
RMC8406A-C: Intel 10th Generation Processor / Long-Life Cycle M/B (Through Q2 2035)
Memory: 4 x DIMM memory sockets (up to 64GB)
On-board LAN, Audio, Video
SATA Controller
USB ports
- Drive Bays
- 2 x 5.25” external drive bays
4 x 2.5” internal drive bays
- Expansion Slot
- 4 x expansion slots
- Front Panel Control
- Power ON/OFF button
System Reset button
2 x USB ports
- LED Indicator
- LED indicators for Power ON/OFF & HDD Activity
- Security
- Single door with one thumbscrew
- Air Filter
- Removable and washable air filter inside front panel
- Cooling Fan
- 2 x 92mm (51CFM each) cooling fan
Option for additional 2 x 60mm (23.5CFM each)
- Power Supply
- 400W ATX power supply
Option for 500W or 650W ATX power supply
- Color
- Black
- Weight
- 40 lb / 18.14 kg

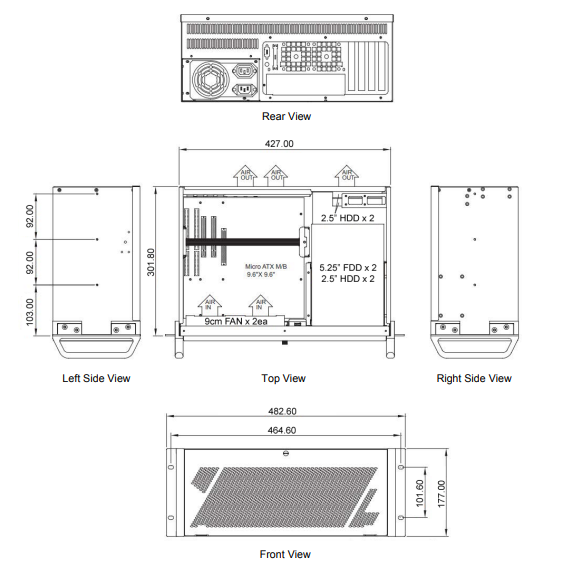

- Dimension
- 19.0"(W) x 7.0"(H) x 11.9"(D
- Environmental
- Operating Temperature: 0°C to 55°C
Humidity: 5~95%, non-condensing
RMC8406A-A:
4U rackmount computer, Intel 10th/11th Generation processors, micro ATX motherboard, 8GB memory, 4 x expansion slots, 400W ATX power supply, 4U high 11.9” depth rack chassis, Black color.
RMC8406A-B:
4U rackmount computer, Intel 14th/13th Generation processors, micro ATX motherboard, 8GB memory, 4 x expansion slots, 400W ATX power supply, 4U high 11.9” depth rack chassis, Black color.
RMC8406A-C:
4U rackmount computer, Intel 10th Generation processors, long-life cycle micro ATX motherboard, 8GB memory, 4 x expansion slots, 400W ATX power supply, 4U high 11.9” depth rack chassis, Black color.
Document
Description
Download Link
RMC8406A-SP.pdfSpec Sheet
