The RMC8405 is a 4U rackmount computer powered by the 9th Generation Intel Core i processors with an industrial-grade single board computer (SBC), PICMG 1.3 13-slot backplane, and two 5.25" external drive bays. The front panel features a single front door with two thumbscrews and a removable and washable air filter. Furthermore, this 4U system comes with a flexible hold-down bar design to protect the plug-in cards from vibration. Utilizing a full-size single-board computer with the 9th generation Intel Core i processor, this 4U rackmount PC delivers high-performing computing powers for your industrial requirements and business environments.
Loading...
4U 16.1

RMC8404

4U 17.8

RMC6440A

RMC8405

  • 4U high rackmount computer
  • 16.1" short-depth steel rackmount chassis
  • 9th generation Intel Core i3 / i5 / i9 processors
  • Single board computer PICMG 1.3
  • 13 x PCI / PCIe / SBC slot backplane
  • 4GB memory (up to 32GB) & SATA hard drive
  • 2 x 5.25" external drive bays
  • Front single door with two thumbscrews
  • 400W ATX power supply, option for 500W or 650W ATX P/S
$1,435.00
Availability: In stock
SKU
RMC8405
Email
4U rack PC with 9th Gen. Intel Core i CPU, single-board computer (SBC) with PICMG 1.3 13-slot backplane, 2 x 5.25" external drive bays, and a 16.1" short-depth rack chassis.
Construction
Heavy-duty cold-rolled steel
Inside: Zinc-plated with bright chromate
Outside: Texture-coated
Standard ATX M/B
Size: Full-size single board computer
Processor: 9th generation Intel Core i processor
Memory: 2 x memory sockets (up to 32GB memory)
Dual 10/100/1000BT Ethernet LAN ports
1 x VGA (onboard) & 1 x DVI (occupies one slot) port
6 x SATA connectors
2 x RS-232, 4 x USB ports
Drive Capacity
2 x 5.25” open drive bays
Backplane
13 Slot Backplane PICMG 1.3
A: PCIe x1 (3), PCIe x16 (1), PCI (8)
B: PCIe x16(1), PCIe x16(2, x1 signal), PCIe x4(5, x1 signal), PCI(4)
Front Panel Controls
Power on/off switch
System reset button
Front Door
Single door with two thumbscrews
Cooling Fan
1 x 90mm (51cfm) ball bearing fan
Air Filter
Removable and washable air filter
Power Supply
400W auto-switch ATX power supply
Option for 500W or 650W ATX power supply
Slide Rail (Option)
Option for 20" to 26" adjustable slide rail
Color
Black
Weight
40 lb / 18.14 kg

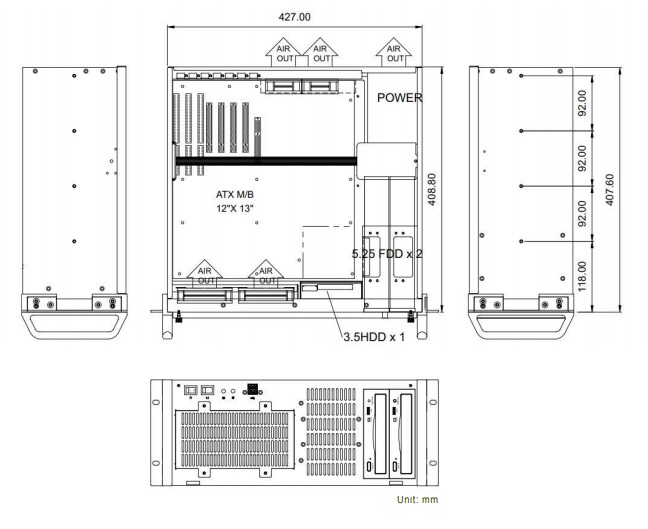

Dimension
19"(W) x 7.0"(H) x 16.1"(D)
Environmental
Operating Temperature: 0°C to 50°C
Humidity: 5% ~ 95%, non-condensing

RMC8405:
4U rackmount computer, 9th Generation Intel Core processors, 13-slot PICMG 1.3 backplane, 4GB memory (up to 32GB), SATA hard drive, 2 x 5.25" open drive bays, 400W auto-switch ATX power supply, 16.1" short-depth rack chassis.

Document
Description
Download Link
file iconRMC8405-SP.pdf
Spec Sheet
  • RMC8405
    4U high rackmount computer
    16.1" short-depth steel rackmount chassis
    9th generation Intel Core i3 / i5 / i9 processors
    Single board computer PICMG 1.3
    13 x PCI / PCIe / SBC slot backplane
    4GB memory (up to 32GB) & SATA hard drive
    2 x 5.25" external drive bays
    Front single door with two thumbscrews
    400W ATX power supply, option for 500W or 650W ATX P/S
    Starting at:
    $1,435.00
RMC8405
$1,435.00

PRODUCT DESCRIPTION
The RMC8405 is a 4U rackmount computer constructed of heavy-duty cold-rolled steel with a zinc-plated interior and textured-coated exterior chassis. The front bezel of the 4U rackmount system includes a power on/off switch, a system reset switch, LED indicators for power and HDD activity, and two front USB connector ports. To maintain the system's internal temperatures, the 4U rackmount computer also comes with one 90mm (51CFM) ball-bearing fan and a removable and washable air filter (inside the front panel). Furthermore, this 4U system comes with a flexible hold-down bar design to protect the plug-in cards from vibration. Utilizing a full-size single-board computer with the 9th generation Intel Core i processor, RMC8405 delivers high-performing computing powers for your industrial requirements and business environments. The 4U rackmount computer integrates a 13-slot PICMG 1.3 backplane supporting PCIe x1 (3), PCIe x16 (1), PCI (8). Option is also available for a backplane supporting: PCIe x16(1), PCIe x16(2, x1 signal), PCIe x4(5, x1 signal), PCI(4). The 4U system supports a standard ATX motherboard (12" x 13") and 9th generation Intel Core i3-9100 3.6GHz CPU with a standard 4GB memory and SATA hard drive. For applications requiring greater processing power, users can select from the optional Core i5-9400 2.9GHz CPU or Core i9-9900K 3.6GHz CPU. RMC8405 also features two 5.25" open drive bays. Option for 1 x 3.5" HD open tray (occupies 1 x 5.25" open bay) or 4 x 2.5" HD / SSD open trays (occupy 1 x 5.25" open bay). The power supply for the system supports a 400W auto-switch ATX power supply. Option for a 500W or 650W ATX power supply. The RMC8405 is a reliable 4U rackmount computer system ideal for a wide range of industries including data centers, networking, data acquisition, industrial control, business applications, and much more.
