The RMC8404 is a 4U rackmount PC designed for data centers, business applications, industrial control, and networking. The rackmount computer supports a standard ATX / EATX motherboard with the latest Intel processors. It features 2 x 5.25" external & 1 x 3.5" internal hard drive bay and two front USB ports in a 4U high 16.1” depth rack chassis. The RMC8404 is fully customizable and offers options for additional storage space, removable drive bay options, add-on cards, graphic cards, and Windows operating systems.
4U Rackmount Computer with Single Board Computer - RMC6446B

RMC6446B

4U 16.1

RMC8405

RMC8404

  • 4U high rackmount computer
  • 16.1" short-depth rackmount chassis
  • 14th/13th/10th Generation Intel processors
  • Standard ATX or EATX motherboard
  • 7 x expansion slots
  • 8GB RAM (Up to 64GB) & 250GB NVMe M2. SSD
  • 2 x 5.25" external & 1 x 3.5" internal drive bay
  • Front single door with two thumbscrews
  • 400W ATX power supply, option for 500W or 650W ATX P/S
In stock
SKU
RMC8404
4U rackmount computer with a standard ATX M/B, latest Intel processors, 2 x 5.25 external drive bays, and 7 x expansion slots in a 4U high 16.1" depth rack chassis.
Construction
Heavy duty cold rolled electroplated steel
Standard ATX / EATX
Motherboard
Size: ATX or EATX motherboard (EATX M/B is available upon request)

Processor:
RMC8404-B: Intel 13th/14th Generation Processors
RMC8404-C: Intel 10th Generation Processor / Long-Life Cycle M/B (Through Q2 2030)
Memory: 4 x DIMM memory sockets (up to 64GB)
On-board LAN, Audio, Video
SATA Controller
USB Ports
Drive Capacity
2 x 5.25” external drive bays
1 x 3.5” internal drive bay
Expansion Slot
7 x expansion slots
Front Panel Control
Power ON/OFF button
System Reset button
2 x USB ports
LED Indicator
LED indicators for Power ON/OFF and HDD Activity
Security
Single door with two thumbscrews
Cooling Fan
2 x 90mm (51cfm) ball bearing fan
Power Supply
400W ATX power supply
Option for 500W or 650W ATX power supply
Color
Black
Weight
32.9 lb / 14.9 kg

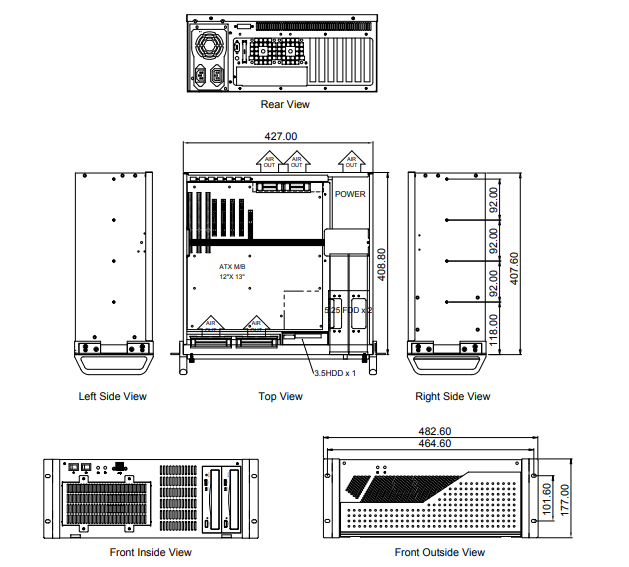

Dimension
19.0"(W) x 7.0"(H) x 16.1"(D)
Environmental
Operating Temperature: 0°C to 55°C
Humidity: 5~95%, non-condensing



RMC8404-B:
4U rackmount computer, Intel 13th/14th Generation processors, standard ATX motherboard, 8GB memory, 7 x expansion slots, 400W ATX power supply, 4U high 16.1” depth rack chassis, Black color.

RMC8404-C:
4U rackmount computer, Intel 10th Generation processors, long-life cycle industrial ATX motherboard, 8GB memory, 7 x expansion slots, 400W ATX power supply, 4U high 16.1” depth rack chassis, Black color.
