RPM-HD17
2U 17.3" multi-display rackmount display drawer with 1920 x 1080, VGA + DVI-D input, built-in solid bearing slide rails, and a 2U high 22" depth rack console drawer.
Key Features
- ✓2U multi-display rackmount display drawer
- ✓Dual or triple 17.3" Full HD industrial LCD panels
- ✓Supports 1920 x 1080 native resolution
- ✓VGA + DVI-D video input (per panel)
- ✓Option for HDMI or 3G-SDI input (per panel)
- ✓Built-in solid bearing slide rails & front OSD buttons
- ✓Built-in dual stereo speaker (per panel)
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V DC power input
The RPM-HD17 is a 2U multi-display drawer featuring 17.3" LCD monitors supporting 1920 x 1080 native resolution, VGA + DVI-D video input, and 100/240VAC power input. The rack monitor drawer has built-in solid bearing slide rails and dual stereo speakers and a 2U short-depth rugged construction for mobility and durability.
| Material | Heavy-duty steel |
| LCD Panel | Size: 17.3 inch Max Resolution: 1920 x 1080 Refresh Rate (Hz): 60 Brightness (cd/m²): 300, option for 1000-nit high brightness Contrast Ratio (typ.): 1000:1 Display Area (mm): 381.888H x 214.812V Viewing Angle (H/V): 170° x 170° Response Time (ms): 25 Dot Pitch (mm): 0.1989 Colors: 16.7M, 8-bit Surface Treatment: Anti-glare, Hard-coating Surface Hardness: 3H Backlight: LED MTBF (hrs): 15,000 |

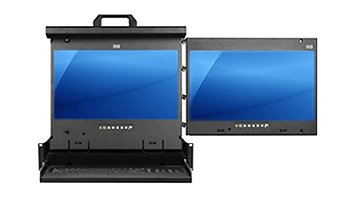

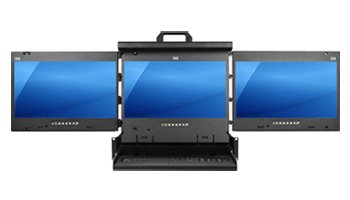

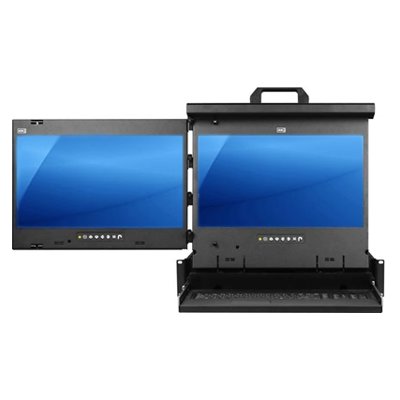

| LCD Mounting Position | RPM-HD17-2L: Dual display (left hinged mount) RPM-HD17-2R: Dual display (right hinged mount) RPM-HD17-3: Triple display |
| Video Input | Standard: VGA + DVI-D video input (per panel) Option: VGA + HDMI or VGA + 3G-SDI input (per panel) |
| Front Panel Control | Power on/off switch OSD (on-screen display) |
| Drawer Design | Built-in solid bearing slide rails Mounting Distance: 21.7~31.1 inch (550~790 mm) |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50/60Hz Consumption Per Panel: Max. 14W, Saving Mode 2W Option for 12V / 24V / 48V DC power input |
| Color | Black |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA |
| Weight | Dual Display: 42.7 lb / 19.4 kg Triple Display: 53 lb / 24.1 kg |
| Dimension | Product: 17.4"(W) x 21.7"(D) x 3.5"(H) Packing: 22.8"(W) x 26.9"(D) x 7.8"(H) |
