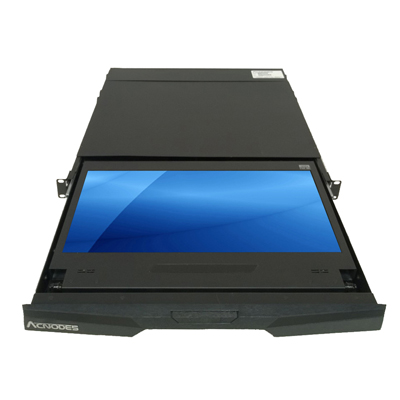

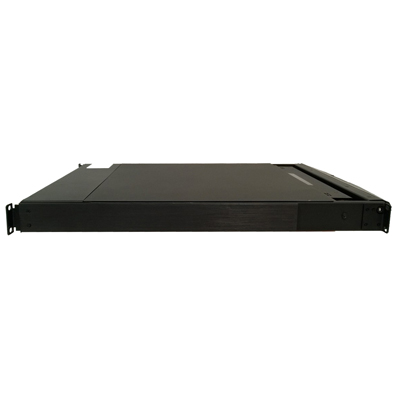

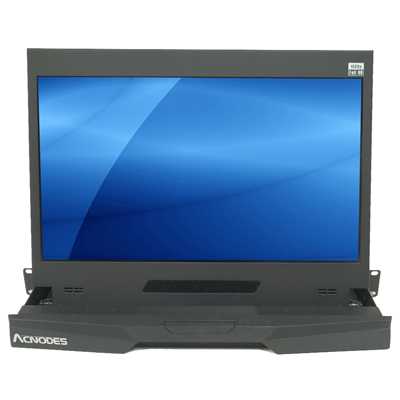

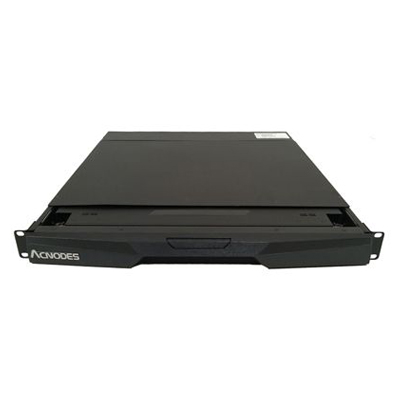

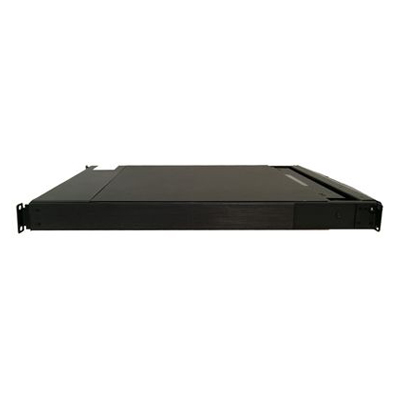

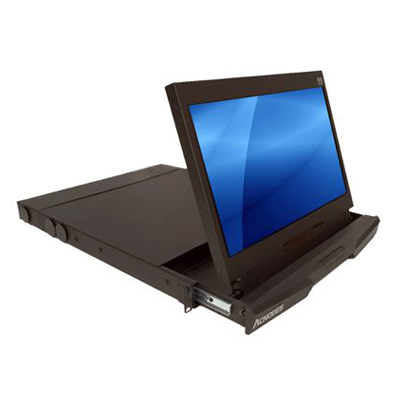

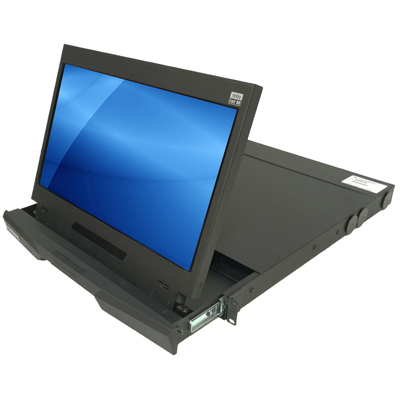

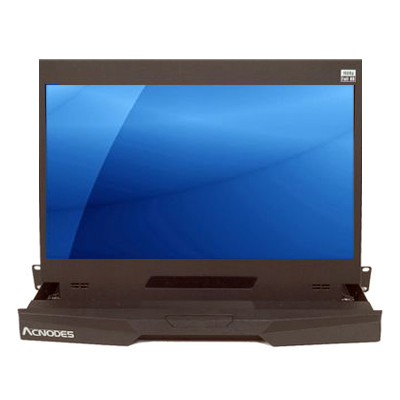

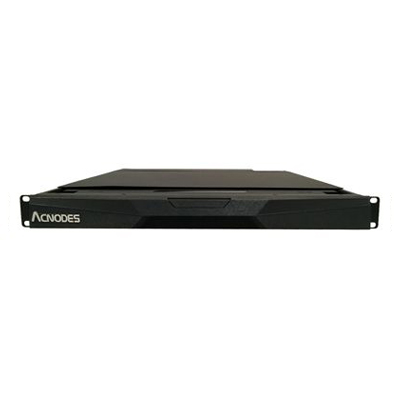

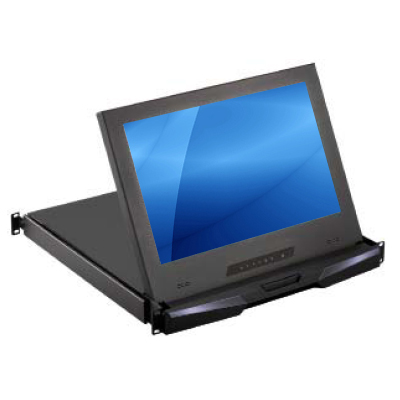

RP3117

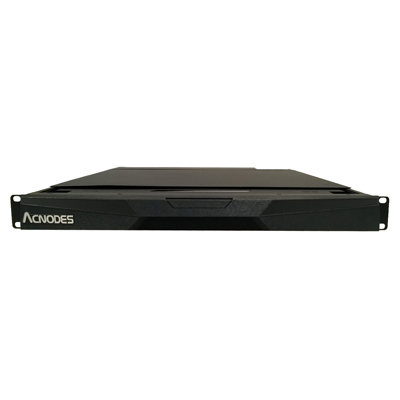

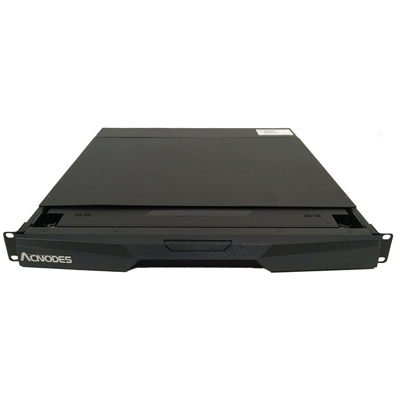

17.3" 1920 x 1080 Full HD industrial LCD monitor with VGA + HDMI video input, 100/240VAC power input, and a 1U high 18.9 inch depth rackmount monitor drawer.
Key Features
- ✓1U 17.3" FHD rackmount LCD monitor drawer
- ✓Supports 1920 x 1080 native resolution
- ✓Front OSD (on-screen display) function
- ✓VGA + HDMI video input
- ✓Option for DVI-D, DP, BNC, Audio, Speaker, or 3G-SDI input
- ✓Option for Resistive or Projected Capacitive touch screen

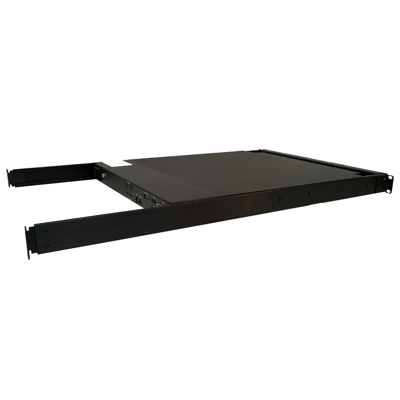

- ✓18.9" (480mm) short-depth drawer design
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input

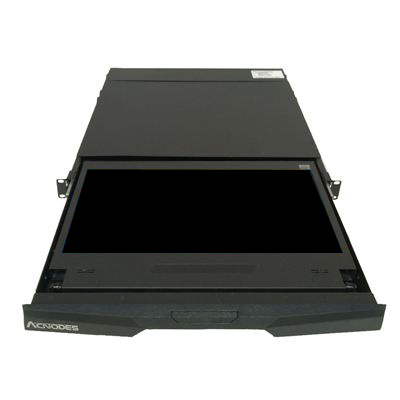

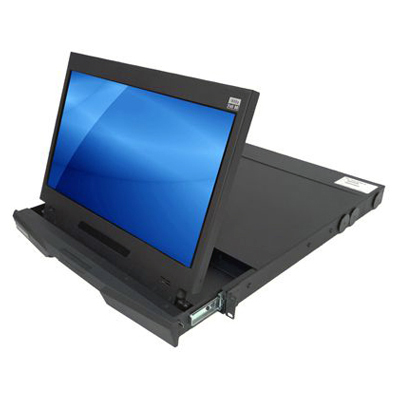

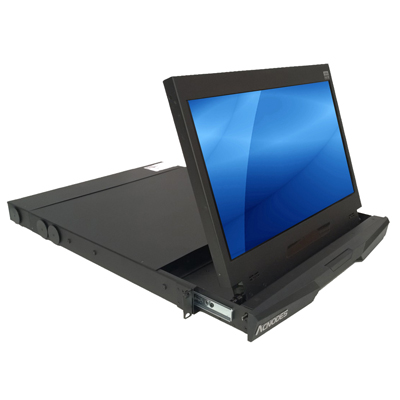

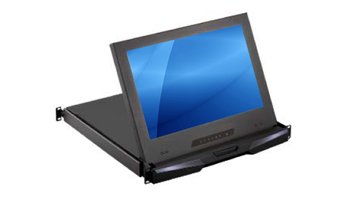

The RP3117 is a 17.3" FHD rackmount LCD monitor drawer supporting 1920 x 1080 native resolution, VGA + HDMI video input, and a 100/240VAC power input in a 1U high 18.9" (480mm) short-depth rack drawer. The monitor drawer features an LED touch on-screen display (OSD), providing users with a convenient way to the device settings. Option for Resistive or Projected Capacitive touch screen, DVI-D / DP / BNC / Audio / Speaker / 3G-SDI input, and DC power input.
| Material | Heavy-duty steel |
| LCD Panel | Size: 17.3 inch Max Resolution: 1920 x 1080 Brightness (cd/m²): 300 Contrast Ratio (typ.): 1000:1 Colors: 16.7 M, 8-bit Viewing Angle (H/V): 178° x 178° Response Time (ms): 25 Dot Pitch (mm): 0.1989 Display Area (mm): 381.888H x 214.812V Surface Treatment: Anti-glare, Hard-coating Surface Hardness: 3H Backlight Type: LED MTBF (hrs): 15,000 |

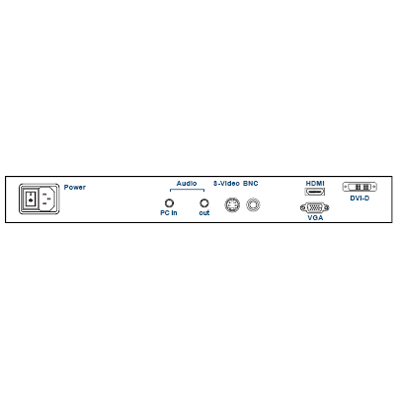

| Video input | Standard: VGA + HDMI video input Option: DVI-D, DP, BNC, Audio, Speaker, or 3G-SDI input |
| Touch screen (option) | Resistive 1-pt touch screen - USB Projected Capacitive 10-pt touch screen - USB |
| Front panel control | Power on/off switch OSD (on screen control) |
| On screen control | Auto-Adjustment for contrast, balance, H-position, V-position, phase, brightness |

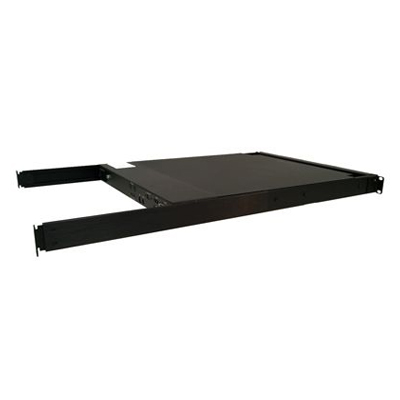

| Mounting Distance | Display Drawer: 19.3 ~ 28.3 inch (490 ~ 720 mm) |
| Power supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max 14W, Standby 2W Option for 12V / 24V / 48V / 125V DC power input |
| Color | Black (RAL 9005) |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA |
| Weight | 24.2 lb / 11 kg |
| Dimension | Product: 17.4"(W) x 18.9"(D) x 1.73"(H) Packing: 23.1"(W) x 29.8"(D) x 4.7"(H) * All dimensions stated are subject to change if options are selected / integrated to base model part codes |
