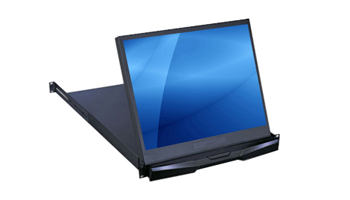

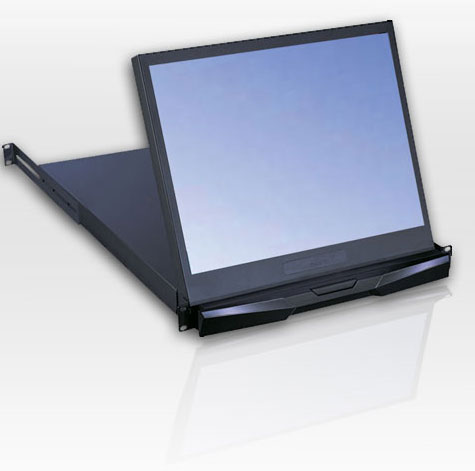

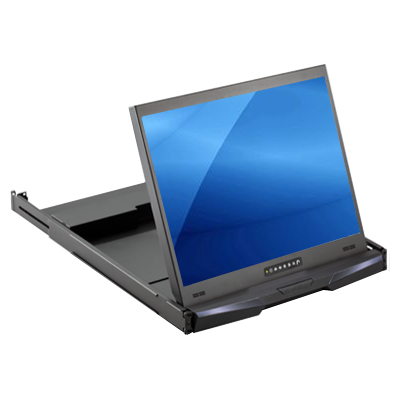

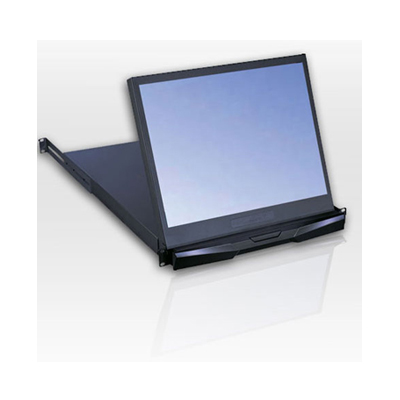

RP1205
20.1" 1600 x 1200 rackmount LCD monitor drawer with VGA + HDMI video input and 100/240VAC power input in a 1U high 25.6" depth monitor drawer.
Key Features
- ✓1U 20.1" rackmount LCD monitor drawer
- ✓Supports 1600 x 1200 native resolution
- ✓Front OSD (on-screen display) function
- ✓VGA + HDMI video input
- ✓Option for DVI-D, BNC, Audio, Speaker, or 3G-SDI input
- ✓Option for Resistive 1-pt touch screen
- ✓25.6" (650mm) depth drawer design
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input
The RP1205 is a 20.1" rackmount LCD monitor drawer supporting 1600 x 1200 native resolution, VGA + HDMI video input, and a 100/240VAC power input in a 1U high 25.6" (650mm) depth rack drawer. The monitor drawer features an LED touch on-screen display (OSD), providing users with a convenient way to the device settings.
| Material | Heavy-duty steel |
| LCD Panel | Size: 20.1 inch Resolution: 1600 x 1200 Brightness (cd/m²): 300 Contrast Ratio: 800:1 Colors: 16.7 M Viewing Angle (H/V): 178° x 178° Response Time (ms): 16 Dot Pitch (mm): 0.255 Display Area (mm): 408H x 306V Surface Treatment: Anti-glare, Hard-coating Surface Hardness: 3H Backlight Type: CCFL MTBF (hrs): 45,000 |
| Touch Screen (Option) | Resistive 1-pt touch screen - USB port |

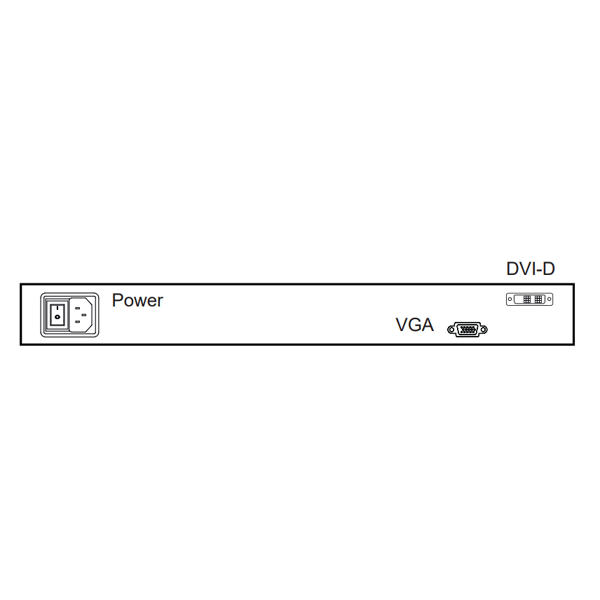

| Video Input | Standard: VGA + HDMI video input Option: DVI-D, BNC, Audio, Speaker, or 3G/HD/SD-SDI input |

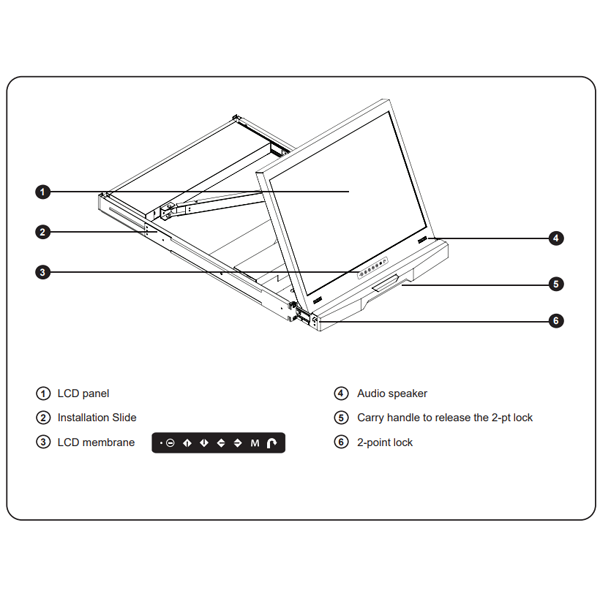

| Front Panel Controls | Power on/off switch OSD (on-screen control) |
| On Screen Control | Auto-Adjustment for contrast, balance, H-position, V-position, phase, brightness |

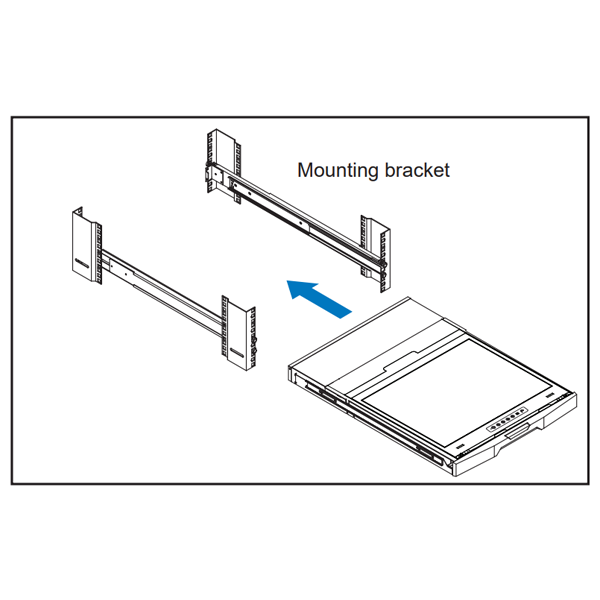

| Mounting Distance | Display Drawer: 26 ~ 35 inch (660 ~ 890 mm) |
| Color | Black (RAL 9005) |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 45W, Standby 2W Option for 12V / 24V / 48V / 125V DC power input |
| Environmental | Operation Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5-90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA |
| Weight | 29.7 lb / 13.5 kg |
| Dimension | Product: 17.3"(W) x 25.6"(D) x 1.73"(H) Packing: 23.4"(W) x 32.1"(D) x 5.5"(H) |
