RP1195
19" 1280 x 1024 industrial LCD monitor with VGA + HDMI video input, 100/240VAC power input, and a 1U high 19.7" short-depth rackmount monitor drawer.
Key Features

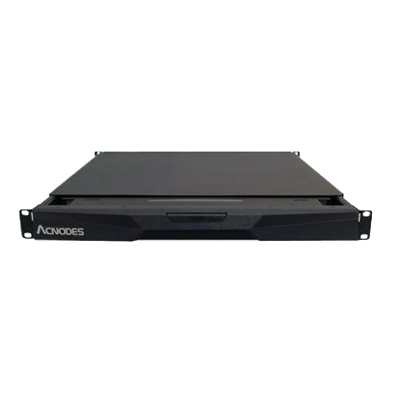

- ✓1U 19" rackmount LCD monitor drawer
- ✓Supports 1280 x 1024 native resolution
- ✓Front OSD (on-screen display) function
- ✓VGA + HDMI video input
- ✓Option for DVI-D, BNC, Audio, Speaker, or 3G-SDI input
- ✓Option for Resistive 1-pt touch screen - USB port

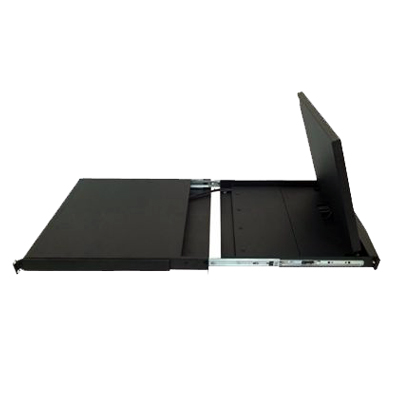

- ✓19.7" (500mm) short-depth drawer design
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input

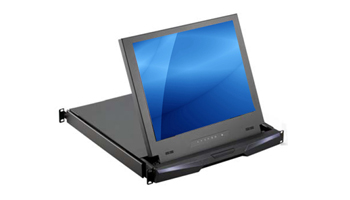

The RP1195 is a 19" rackmount LCD monitor drawer supporting 1280 x 1024 native resolution, VGA + HDMI video input, and a 100/240VAC power input in a 1U high 19.7" (500mm) short-depth rack drawer. The monitor drawer features an LED touch on-screen display (OSD), providing users with a convenient way to the device settings.
| Material | Heavy-duty steel |
| LCD Panel | Size: 19 inch Resolution: 1280 x 1024 Brightness (cd/m²): 250 Contrast Ratio (typ): 1000:1 Colors: 16.7 M Viewing Angle (H/V): 170° x 160° Response Time (ms): 5 Dot Pitch (mm): 0.294 Display Area (mm): 376.32H x 270.33V Surface Treatment: Haze 25%, Hard-coating Surface Hardness: 3H Backlight Type: LED MTBF (hrs): 30,000 |
| Touch Screen (Option) | Resistive 1-point touch screen - USB |

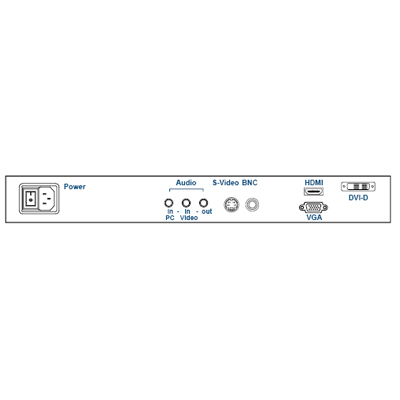

| Video input | Standard: VGA + HDMI video input Option: DVI-D, BNC, S-Video, Audio, Speaker, or 3D-SDI |
| Front Panel Controls | Power on/off switch OSD (On Screen Display) control |
| On Screen Control | Auto-Adjustment for contrast, balance, H-position, V-position, phase, brightness |
| Mounting Distance | Display Drawer: 20.1 ~ 29.1 inch (510 ~ 740 mm) |
| Color | Black (RAL 9005) |
| Power supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max 22W, Standby 2W Option for 12V / 24V / 48V / 125V DC power input |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA |
| Weight | 27.5 lb / 12.5 kg |
| Dimension | Product: 17.4"(W) x 19.7"(D) x 1.73"(H) Packing: 23.1"(W) x 29.3"(D) x 4.7"(H) * All dimensions stated are subject to change if options are selected / integrated to base model part codes |
