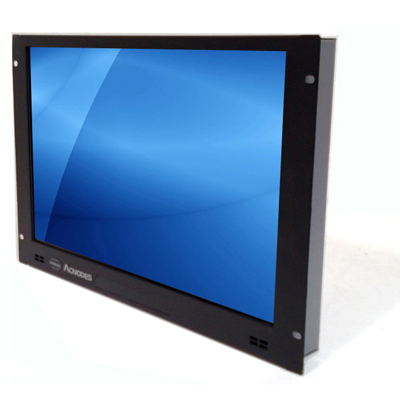

RMW7190
19" 1440 x 900 widescreen LCD monitor with VGA + HDMI video input, OSD membrane switch, and 100/240VAC power input in a 7U high rackmount enclosure.
Key Features
- ✓7U 19" widescreen rackmount LCD monitor
- ✓Supports 1440 x 900 native resolution
- ✓Front OSD (on-screen display) function
- ✓VGA + HDMI video input
- ✓Option for DVI-D, BNC, Audio, Speaker, or 3G-SDI input
- ✓Option for Resistive 1-pt touch screen - USB
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input
The RMW7190 is a high-quality 7U 19" widescreen rackmount LCD monitor designed for professionals who require superior display quality in a variety of settings. With a native resolution of 1440 x 900, this monitor delivers clear and sharp images that are perfect for a wide range of applications. The RMW7190 supports VGA + HDMI video input and offers a range of input options, including DVI-D, BNC, Audio, Speaker, or 3G-SDI input, making it the perfect solution for use in professional broadcast environments. The RMW7190 is a reliable and robust rackmount LCD monitor that offers exceptional display quality, a wide range of input options, and compatibility with different power inputs. It is the perfect choice for professionals across various industries, including broadcast, industrial, military, and medical settings.
| Construction | Heavy-duty steel |
| LCD panel | Size: 19 inch Max Resolution: 1440 x 900 Brightness (cd/m²): 250 Contrast Ratio (typ.) : 1000:1 Colors: 16.7 M Viewing Angle (H/V): 170° x 160° Response Time (ms): 5 Dot Pitch (mm): 0.2835 Display Area (mm): 408.24H x 255.15V Surface Treatment: Anti-glare Surface Hardness: 3H Backlight: LED MTBF (hrs): 30,000 |

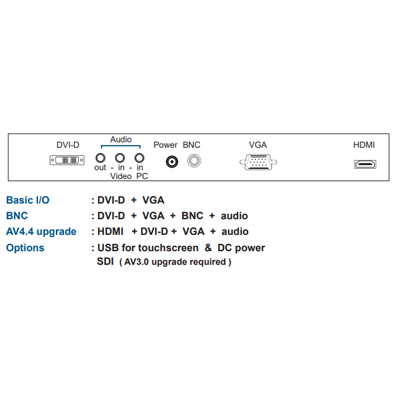

| Video input | Standard: VGA + HDMI video input Option: DVI-D, BNC, Audio, Speaker, or 3G-SDI input |
| Touch screen (Option) | Resistive 1-pt touch screen - USB |
| Connector | 1 x VGA + 1 DVI-D |
| Front panel control | Power on/off switch OSD membrane switch |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50/60Hz Consumption: Max. 20 Watt, Standby 2 Watt Option for 12V / 24V / 48V / 125V DC power input |
| Mounting | 7U high rackmount monitor for a standard 19" wide rackmount cabinet |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11 ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA |
| Weight | 12.8 lb / 5.8 kg |
| Dimension | Product: 18.9"(W) x 2.3"(D) x 12.2"(H) Packing: 20.8"(W) x 4.9"(D) x 17.8"(H) |
