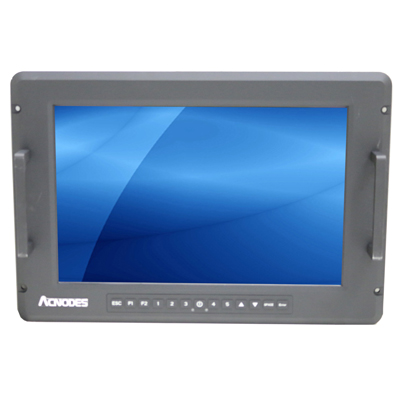

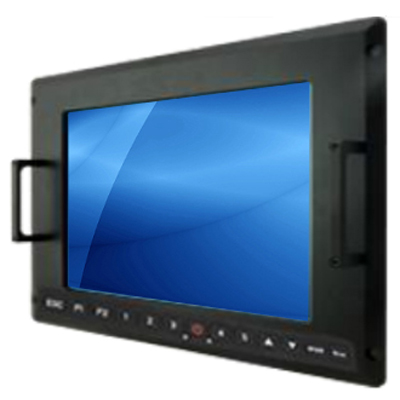

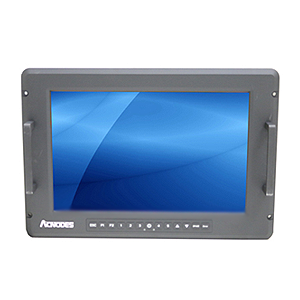

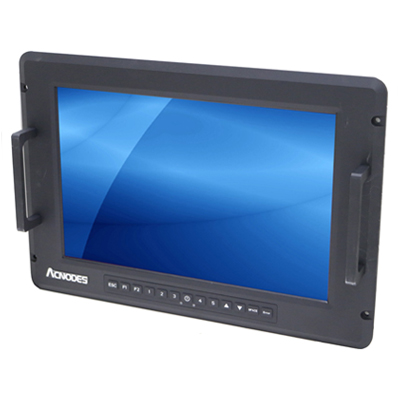

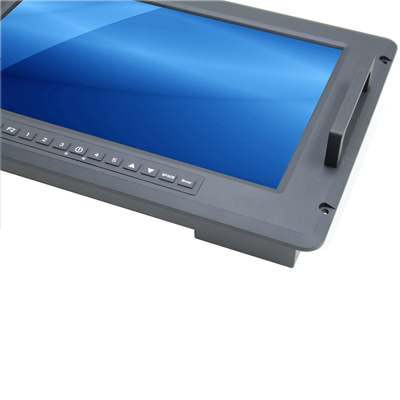

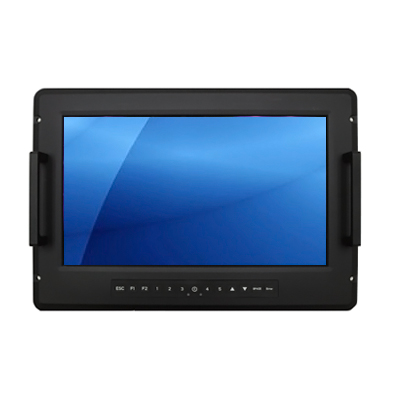

RMW7176
17.3 inch 4K military-grade LCD monitor with VGA + DVI + HDMI video input in an 8U high rackmount enclosure with MIL-STD-810F compliance for vibration & shock.
Key Features
- ✓8U 17.3" rugged military rackmount LCD monitor
- ✓Supports 3840 x 2160 (4K) pixel resolution
- ✓High picture quality with 16.7 million colors
- ✓VGA + DVI + HDMI input, option for DP or BNC input
- ✓AR glass, option for ITO or Resistive / Capacitive touch screen
- ✓Option for dimming light sensor and optical bond
- ✓MIL-STD-810F compliance for vibration and shock
- ✓DC power with external AC power adapter
The RMW7176 is a 17.3" rugged military rackmount LCD monitor supporting 4K (3840 x 2160) resolution and 16.7 million colors, providing superior video performance and high image quality for your applications. This rugged LCD monitor supports VGA + DVI + HDMI input, AR protective glass, and DC power with an external AC power adapter. The RMW7176 is built to withstand harsh environments and is MIL-STD compliant for vibration and shock to ensure its best performance in rugged fields including marine, military, industrial, medical, and oil and gas.
| Material | Heavy-duty steel |
| LCD Panel | Size: 17.3” Resolution: 3840 x 2160 Brightness (cd/m²): 400 Contrast Ratio (typ.) : 1000:1 Viewing Angle (H/V): 178° x 178° Active Area (mm): 381.12H x 214.94V Pixel Pitch (mm): 0.0995H x 0.0995V Colors: 16.7M Backlight: LED |
| LCD Protection / Touch Screen (Option) | AR protective glass (standard) Option for ITO glass with no touch Option for Resistive type touch screen with no AR or ITO glass Option for Capacitive type touch screen with no AR or ITO glass |
| Video Input | VGA + DVI + HDMI input Option for DP, HDMI w/speaker, BNC, or Speaker-Audio input |

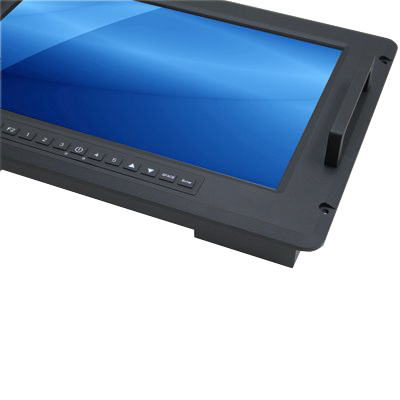

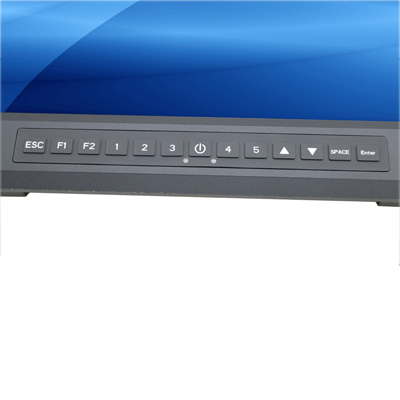

| Front OSD Buttons | OSD Control: 1 x Power, 1 x Enter (Menu), 1 x Space, 1 x Up, 1 x Down for OSD control Keyboard FN Keys: ESC, F1, F2, 1~5 mapping to keyboard (programmable to other keys) |
| Light Sensor (Option) | Dimming light sensor |
| Optical Bonding (Option) | Optical bonding |
| Connectors | 1 x VGA + 1 X DVI + 1 x HDMI 1 x DP (option) 1 x BNC (option) 1 x D38999 power connector w/ AC power adapter |

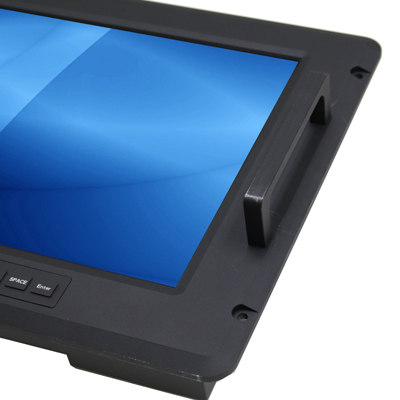

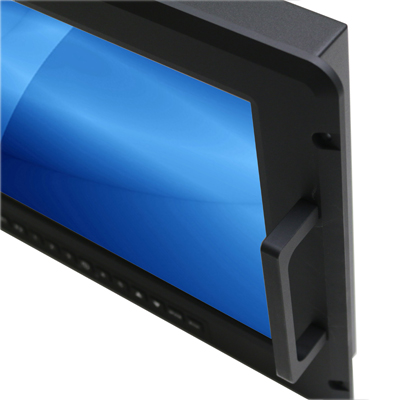

| Handles | Front handles on right and left side |
| Plug & Play | VESA DDC 1/2B |
| Power Supply | DC power with external AC power adapter Power Consumption: 60W (typical) Option for D38999 9 to 36V DC power input or D38999 AC power input Option for MIL-STD-461E power EMI filter |
| Environmental | Operating Temperature: 0°C to 50°C Storage Temperature: -30°C to 70°C Humidity: 10% to 95%, non-condensing Vibration: MIL-STD-810F Method 514.5 Procedure I compliant Shock: MIL-STD-810F Method 516.6 Procedure I compliant |
| Gross Weight | 19.84 lb / 9 kg |
| Dimension | 18.90”(W) x 3.94”(D) x 12.99”(H) |
This product does not have configurable options.
