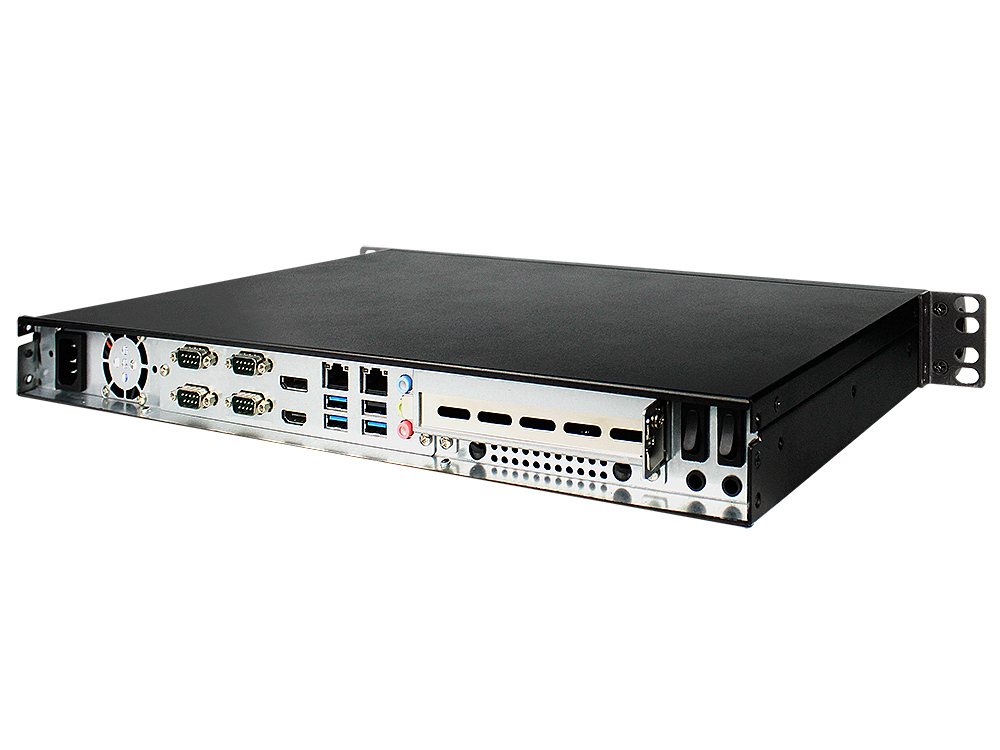

RMC81109
1U rackmount computer with Intel Core i7-10700 CPU, 8GB memory, support for M.2 SSD, multiple I/O ports, and a 250W FLEX power supply in a 9.9" depth rack chassis.
Key Features
- ✓1U high 9.9 inch depth rackmount computer
- ✓Intel Core i7-10700 3.4GHz CPU with H410 chipset
- ✓Supports DDR4 memory (up to 32GB total)
- ✓2 x 2.5-inch SATA storage bays
- ✓Supports M.2 SSD storage
- ✓4 x COM, 2 x GbE LAN, 6 x USB, 1 x DP, 1 x HDMI
- ✓1 x PCI-E x16 Riser Card (full height)
- ✓3 x 4020 7000RPM 8CFM fans
- ✓1U 250W FLEX ATX power supply
The RMC81109 is a 1U rackmount computer powered by the 10th generation Intel Core i7-10700 CPU with the Intel H410. The rackmount PC comes with various rear I/O ports including 4 x serial ports, 1 x DP, 1 x HDMI, 2 x RJ45 GbE LAN, 4 x USB, and 3 x 3.5mm audio jacks. The front I/O ports include 1 x power button, 1 x reset button, 1 x power LED, 1 x HDD LED, and 2 x USB ports. This slim 1U rackmount computer is a highly reliable system designed for various applications such as business, industrial, and security.
| Construction | 1U high 9.9 inch depth chassis |
| Main system | CPU: Intel Core i7-10700 Chipset: H410 Chipset Memory: 8GB DDR4 memory, up to 32GB Audio: Realtek ALC888S HD Audio Codec LAN: 1 x Intel I219-V PHY Gigabit LAN & 1 x Intel I211-AT PCI-E Gigabit LAN |
| Storage | 2 x SATA3 Connectors 1 x M.2 (PCIe 3.0 x2 NVMe & SATA, M-key, 2242/2280) |
| Front I/O | 1 x Power Button 1 x Reset Button 1 x Power LED 1 x HDD LED 2 x USB 2.0 ports |

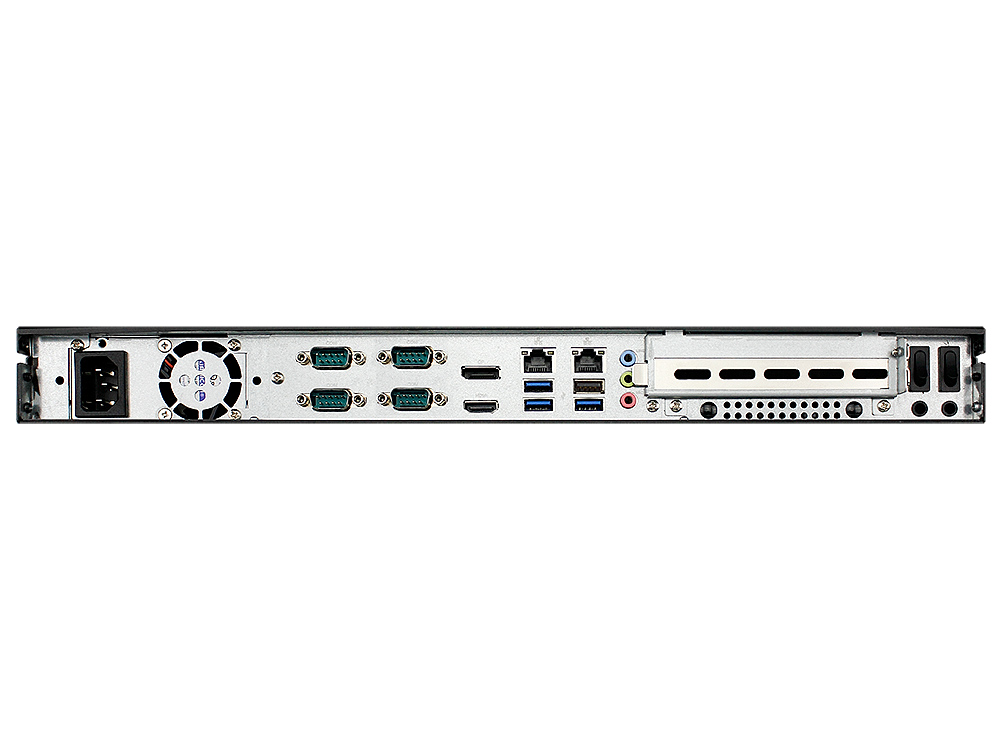

| Rear I/O | 1 x AC-in Plug 4 x Serial Ports (3 x RS232, 1 x RS232/422/485) 1 x DP 1.2 1 x HDMI 1.4 2 x RJ45 Gigabit LAN 3 x USB 3.2 Gen 1 1 x USB 2.0 3 x 3.5mm Audio Jack 1 x Power Switch 1 x Reset Switch 1 x Power LED 1 x HDD LED |
| Expansion Slot | 1 x PCI-E x16 Riser Card (Full-height, Single slot PCI-E x16 card) |
| Cooling Fan | 3 x 40x40x20mm 7000RPM 8CFM fans |
| Power Supply | 1U 250W Flex ATX power supply |
| Environmental | Operating Temperature: 0°C to 50°C Non-operating Temperature: -10° to 70°C |
| Compliance | CE, FCC, RoHS |
| Weight | TBD |
| Dimension | 16.93"(W) x 1.73"(H) x 9.9"(D) |
