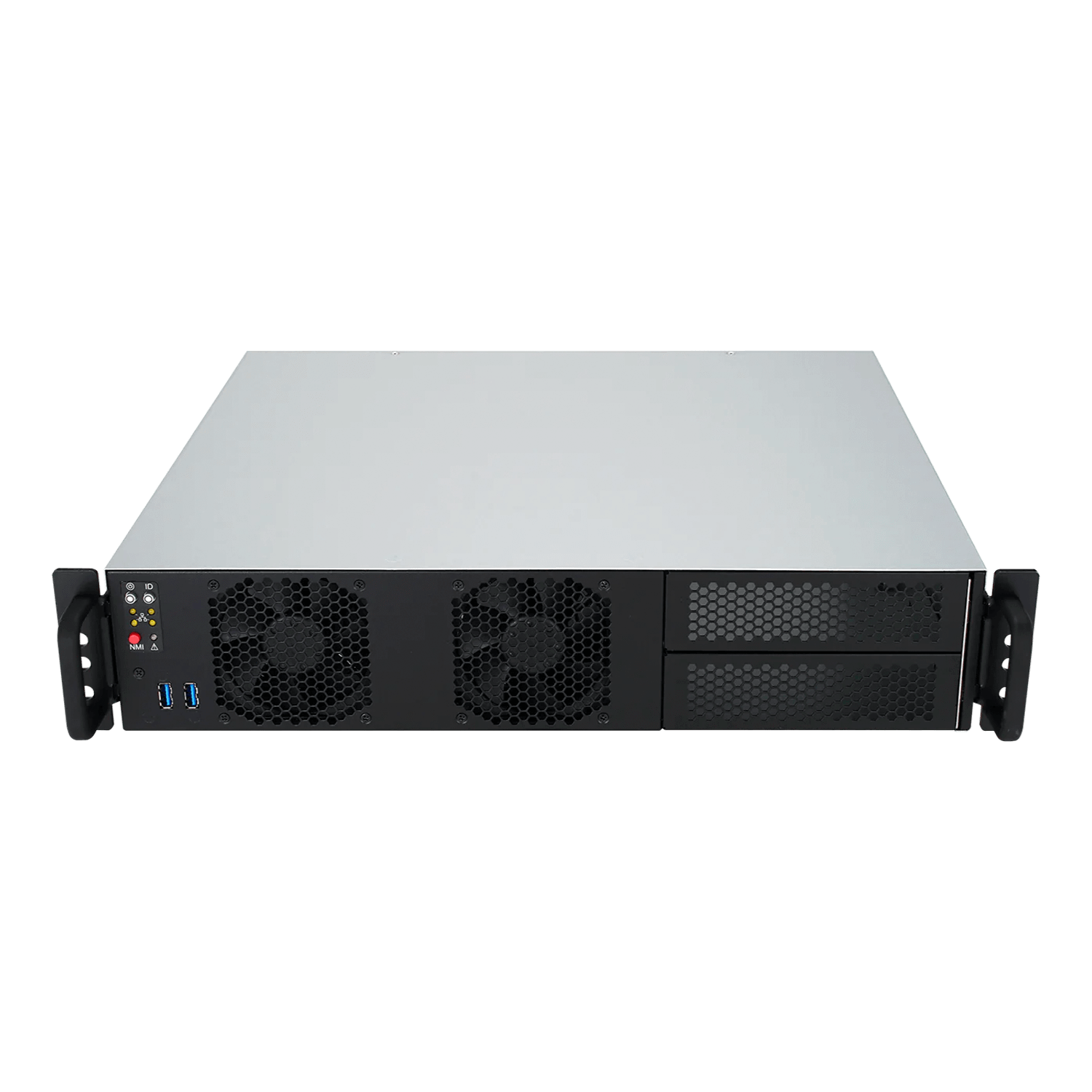

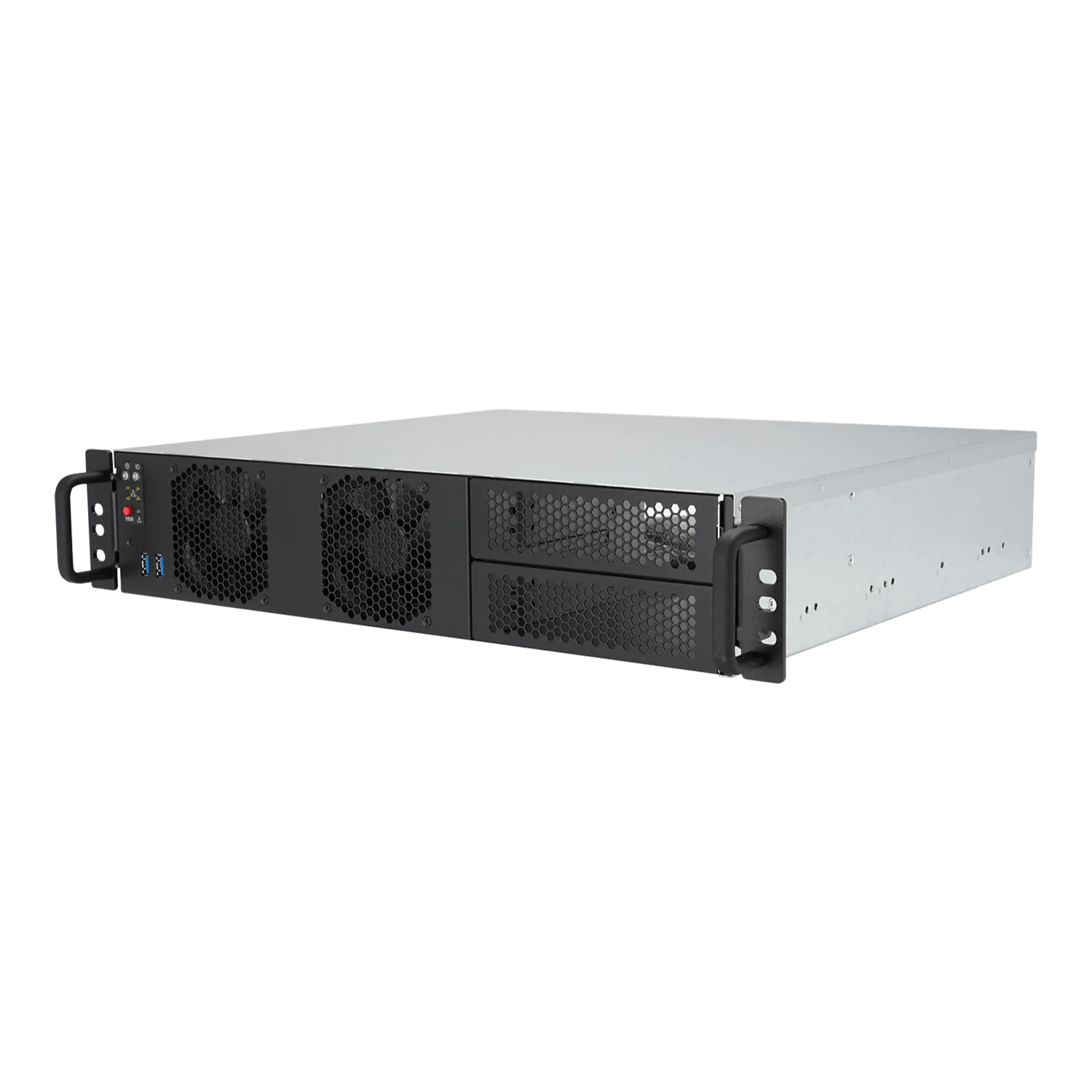

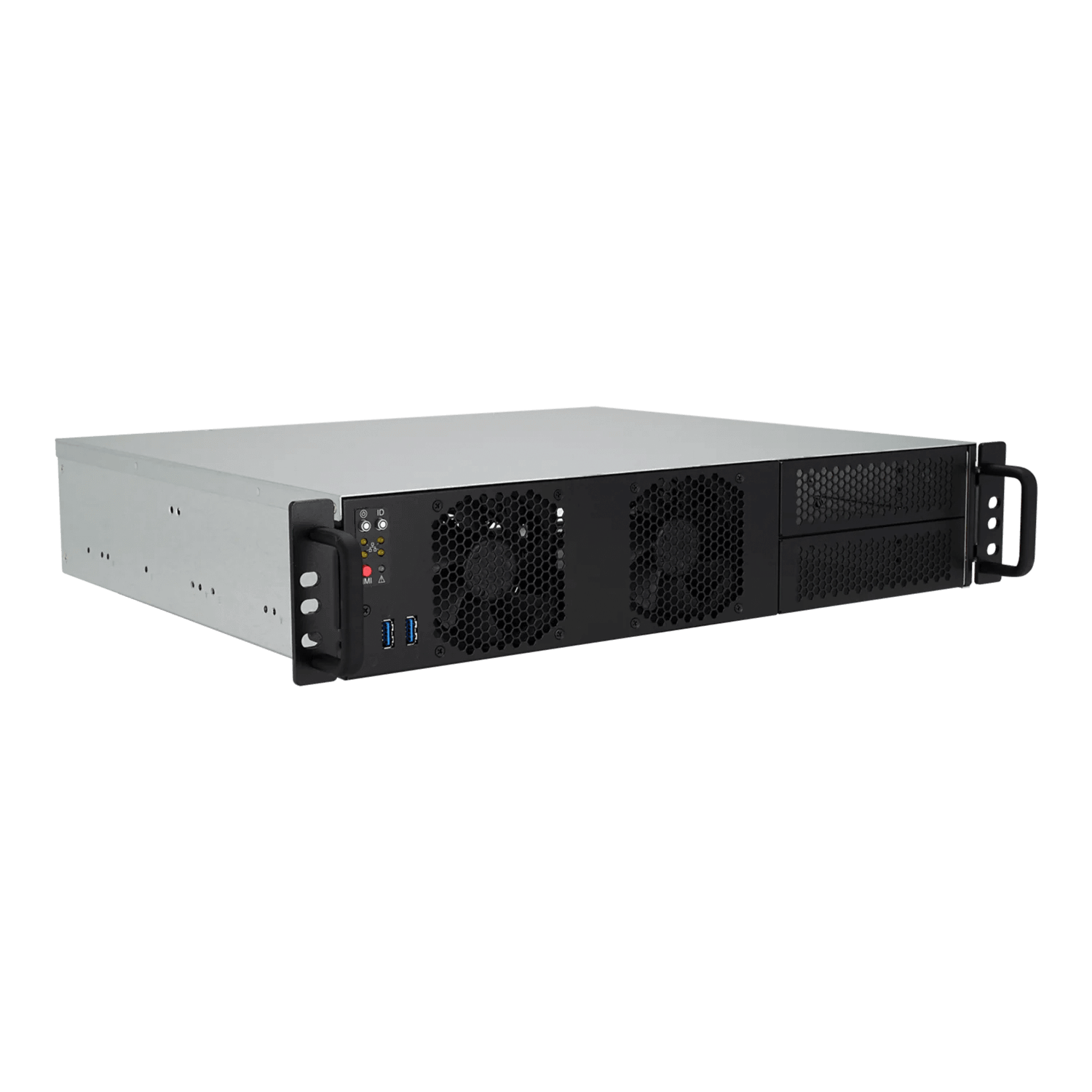

RMC5265
2U high rackmount computer with the latest Intel Core Ultra / AMD Ryzen processors in a 16.8 inch short depth rackmount chassis, standard micro ATX M/B, 4 x low profile PCIe expansion slots, 16GB RAM (Up to 64GB), 250GB NVMe M.2 SSD, 2 x 5.25" external & 4 x 2.5" internal drive bays, 1 x 5.25 external & 1 x 3.5" hidden drive bays, front cooling fans, front access USB ports, and a 500W auto-switch ATX power supply.
Key Features
- ✓2U high rackmount computer
- ✓16.8 inch short depth rackmount chassis
- ✓Intel Core i / Core Ultra / AMD Ryzen processors
- ✓Standard micro ATX Motherboard
- ✓4 x low profile PCIe expansion slots
- ✓16GB RAM (Up to 64GB) & 500GB NVMe M.2 SSD
- ✓2 x 5.25" external & 4 x 2.5" internal drive bays

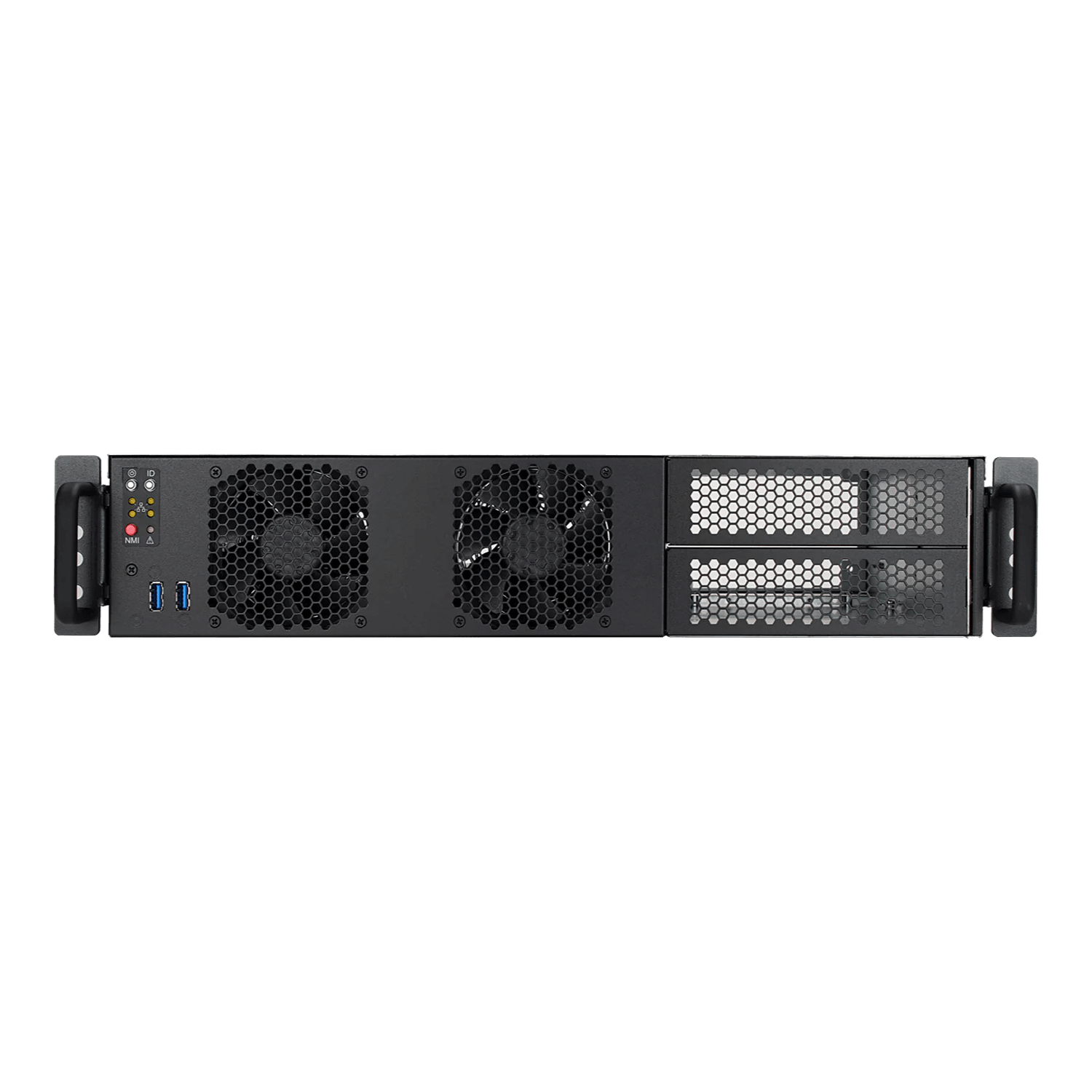

- ✓Front cooling fans and front access USB ports
- ✓500W auto-switch ATX power supply
The RMC5265 is a 2U high rackmount computer with a 16.8-inch short-depth rackmount chassis featuring the latest Intel Core Ultra / AMD Ryzen processors and standard micro ATX motherboards. The system supports 4 x low-profile PCIe expansion slots, 16GB RAM (Up to 64GB), 250GB NVMe M.2 SSD, 2 x 5.25" external & 4 x 2.5" internal drive bays, front cooling fans, front access USB ports, and a 500W auto-switch ATX power supply.
| Construction | Heavy-duty steel cold-rolled steel |
| Standard micro ATX M/B | Size: Standard micro ATX Motherboard RMC5265-B: Intel Core Ultra Processors RMC5265-C: AMD Ryzen processors Memory: 16GB RAM (up to 64GB) On-board Video, LAN, Audio SATA hard drive USB ports |
| CPU | Intel Core Ultra / AMD Ryzen process |
| Drive Capacity | 2 x 5.25” external drive bays 4 x 2.5” internal drive bays |
| Expansion Slot | 4 x low profile PCIe slots available |
| Front Panel Controls | Power on/off switch System reset button 2 x USB ports |
| System Indicator | LED indicators for System Fail and LAN activity |
| Cooling Fan | 2 x front cooling fans |
| Power Supply | 500W auto-switch ATX power supply |
| Environmental | Operating Temperature: 0°C to 45°C (32°F to 113°F) Relative Humidity: 5% to 95%, non-condensing |
| Weight | 25 lbs |
| Dimension | 19"(W) x 3.5"(H) x 16.8"(D) |
