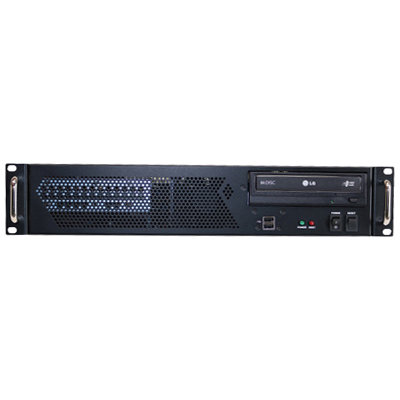

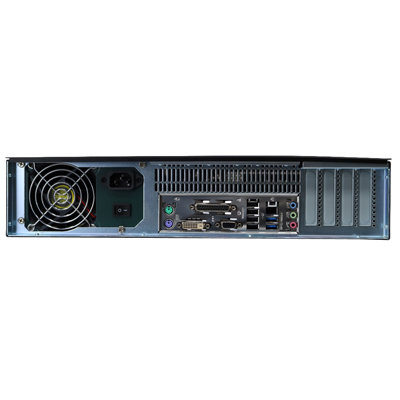

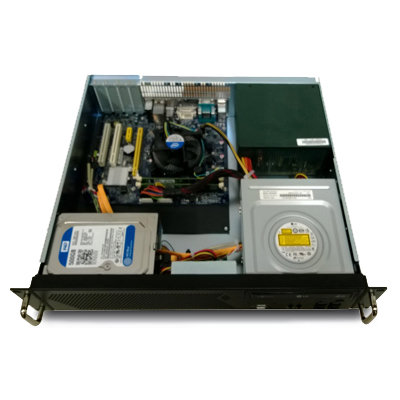

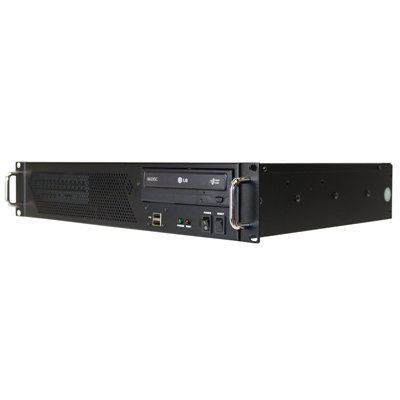

RMC5255
2U high rackmount computers with the Intel Core Ultra / AMD Ryzen processors, standard micro ATX motherboard, 1 x 5.25" external, and 2 x 3.5" internal drive bay in a 2U high 15.1" depth rack chassis.
Key Features
- ✓2U high rackmount computer
- ✓15.1 inch short depth rackmount chassis
- ✓Intel Core Ultra / AMD Ryzen processors
- ✓Standard micro ATX motherboard
- ✓4 x low profile PCIe expansion slots
- ✓16GB RAM (Up to 64GB) & 250GB NVMe M.2 SSD
- ✓1 x 5.25" external & 2 x 3.5" internal drive bays
- ✓Front power ON/OFF switch, LED indicators, 2 x USB ports
- ✓500W auto-switch ATX power supply
The RMC5255 is a 2U high rackmount computer powered by Intel Core Ultra/AMD Ryzen processors and a standard micro ATX motherboard. The system features 4 x low profile PCIe expansion slots, 16GB memory, 250GB NVMe M.2 SSD, 1 x 5.25" and 2 x 3.5" hidden drive bay in a 2U high 15.1" short-depth rack chassis with a 500W auto-switch ATX power supply.
| Construction | Heavy-duty steel cold-rolled steel |
| Standard micro ATX M/B | Size: Standard micro ATX motherboard RMC5255-B: Intel Core Ultra processors RMC5255-C: AMD Ryzen processors Memory: 4 x DIMM memory sockets (up to 64GB) On-board Video, LAN, Audio SATA hard drive USB ports |
| Drive Capacity | 1 x 5.25" external drive bay 1 x 3.5" internal drive bay |
| Expansion Slot | 4 x low profile PCIe slots available |
| Front Panel Controls | Power on/off switch System reset button 2 x USB 2.0 ports |
| LED Indicators | LED Indicators for Power & HDD Activity |
| Power Supply | 500W auto-switch ATX power supply |
| Environmental | Operating Temperature: 0°C to 45°C (32°F to 113°F) Relative Humidity: 5% to 95%, non-condensing |
| Weight | 20 lb / 9.07 kg |
| Dimension | 19"(W) x 3.5"(H) x 15.1"(D) |
