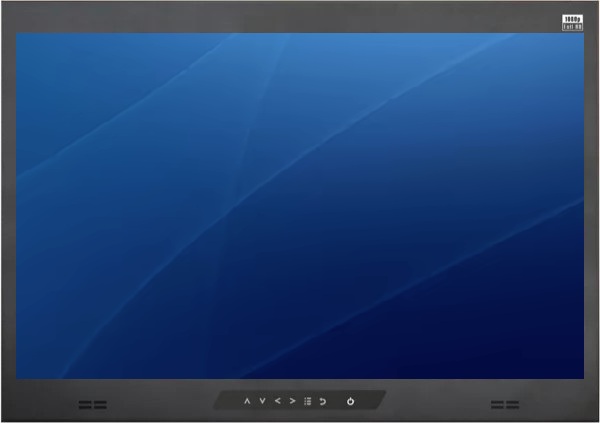

RM6821
21.5" 1920 x 1080 Full HD rackmount LCD monitor supporting a 1000-nits high brightness display and VGA + HDMI video input in an 8U high rackmount monitor enclosure.
Key Features
- ✓8U 21.5" high brightness rack LCD monitor
- ✓1000-nits high brightness display
- ✓Supports 1920 x 1080 FHD native resolution
- ✓Front OSD (on-screen display) function
- ✓VGA + HDMI video input
- ✓Option for DVI-D, DP, BNC, Audio, Speaker, or 3G-SDI input
- ✓Option for Resistive or Projected Capacitive touch screen
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input
The RM6821 is a 21.5" high brightness rack LCD monitor designed for outdoor applications or environments with high ambient lighting. The LCD panel supports 1920 x 1080 Full HD resolution, 1000-nits high brightness, 5000:1 contrast ratio, and 16.7 million colors. The monitor features VGA + HDMI video input, easy access to front OSD functions, and an 8U high rack enclosure designed for standard 19" wide rack cabinets. Options are available for touch screen technology, additional video input modules, and DC power input.
| Construction | Heavy-duty steel |
| LCD Panel | Size: 21.5 inch Native Resolution: 1920 x 1080 Brightness (cd/m²): 1000 Contrast Ratio (typ.): 5000:1 Colors: 16.7 M Viewing Angle (H/V): 178° x 178° Response Time (ms): 16 Dot Pitch (mm): 0.248 Display Area (mm): 476.64H x 268.11V Surface Treatment: Anti-glare Surface Hardness: 3H Backlight Type: LED MTBF (hrs): 50,000 |
| Video input | Standard: VGA + HDMI video input Option: DVI-D, DP, BNC, Audio, Speaker, or 3G-SDI input |
| Touch screen (Option) | Resistive 1-pt touch screen - USB port Projected Capacitive 10-pt touch screen - USB port |
| Front panel control | Power on/off switch OSD membrane switch |
| Connector | 1 x VGA + 1 x DVI-D |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 32W, Standby 2W Option for 12V / 24V / 48V / 125V DC power input |
| Mounting | 8U high rackmount for a standard 19" wide rackmount cabinet VESA (100 x 100mm) mounting holes |
| Casing Color | Black front panel (RAL 9005) |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11 ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA |
| Weight | 19.4 lb / 8.8 kg |
| Dimension | Product: 19.8"(W) x 2.5"(D) x 13.9"(H) Packing: 21.9"(W) x 23.0"(D) x 5.4"(H) |
