RM6380
20.1 inch 1600 x 1200 LCD panel with VGA + DVI-D video input, ITO glass protection, and MIL-STD-810G / 461E compliance in a 9U high rackmount enclosure.
Key Features
- ✓9U 20.1" rugged military rackmount LCD monitor
- ✓Supports 1600 x 1200 pixel resolution
- ✓300-nit brightness, option for 1000-nit high brightness
- ✓VGA + DVI video input, option for DP, HDMI, or BNC input
- ✓ITO glass, option for Resistive or Capacitive type touch screen
- ✓Option for dimming light sensor and optical bond
- ✓MIL-STD-810G environmental & MIL-STD-461E EMC compliant
- ✓Extended working temperature range from -15°C to 55°C

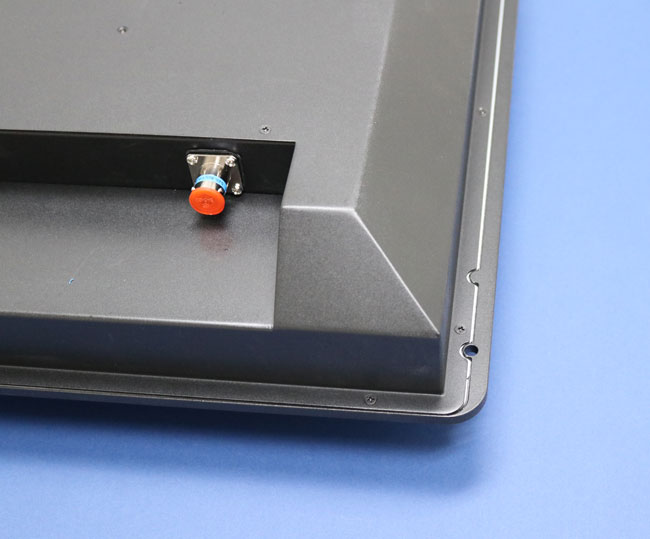

- ✓AC power input with D38999 MIL-type connector
The RM6380 is a 20.1" rugged military rackmount LCD featuring 1600 x 1200 resolution, 300-nit brightness, VGA + DVI video input, and a 9U high rackmount enclosure. The enclosure is designed to comply with MIL-STD-810G environmental and MIL-STD-461E EMC testing standards. The display comes with a metal ruggedized housing designed to fit into a standard 19" rack cabinet. Optional upgrades include touch screen technology, 1000-nits high brightness display, dimmer light sensor, optical bonding, additional video inputs, -20°C to 60°C wide working temperature range, and D38999 power input.
| Material | Heavy-duty steel |
| LCD Panel | Size: 20.1 inch Resolution: 1600 x 1200 Brightness (cd/m²): 300, option for 1000-nit Contrast Ratio (typ.): 1000:1 Active Area: 408.0 H x 306.0 V Pixel Pitch (mm): 0.255 H x 0.255 V Viewing Angle (H/V): 176° x 176° Color: 16.7M, 8 bits Scan Frequencies: Horizontal 31.5 ~ 80.0KHz Vertical 65 ~ 75Hz |
| LCD Protection / Touch Screen (Option) | ITO glass for EMI protection (standard) Option for 5-wire Resistive type touch screen with no ITO glass Option for Capacitive type touch screen with no ITO glass |
| Video Input | VGA + DVI input Option for DP, HDMI, HDMI w/ speaker, BNC, or Speaker-Audio input |
| Front Panel Controls | On-screen display (OSD) buttons LED indicators for signal input |
| Light Sensor (Option) | Dimming light sensor |
| Optical Bonding (Option) | Optical Bonding |

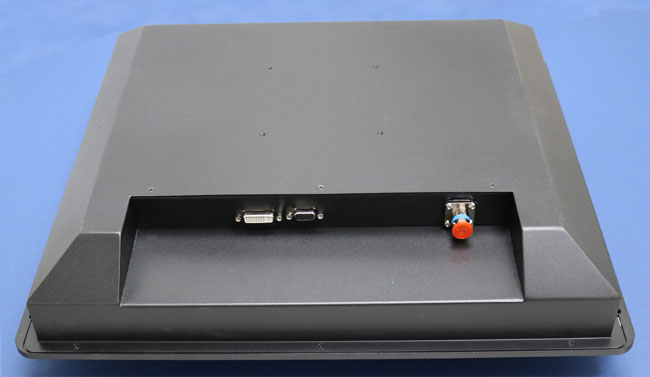

| Connectors | 1 x VGA + 1 x DVI 1 x DP (option) 1 x HDMI (option) 1 x BNC (option) 1 x 3-pin D38999 power connector |
| Power Supply | AC power input with D38999 MIL-type connector Option for D38999 9~36V DC power input or D38999 AC power input |
| Environmental | Operating Temperature: -15°C to 55°C Storage Temperature: -30°C to 70°C Humidity: 10 to 95%, non-condensing Shock: MIL-STD 810G Method 516.6 compliant Vibration: MIL-STD-810G Method 514.6C-3 Procedure I compliant Humidity: MIL-STD-810G, Method 507.5-7 compliant EMC: MIL-STD-461E, CE102, RE102 compliant Option for -20°C to 60°C wide range working temperature |
| Gross Weight | 24.25 lb / 11 kg |
| Dimension | 19"(W) x 15.71"(H) x 3.35”(D) |
