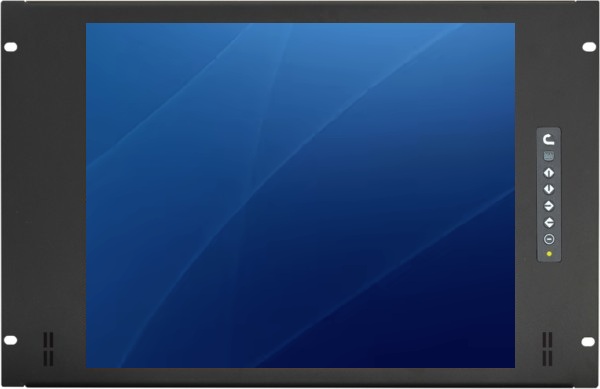

RM6193
19 inch 1280 x 1024 1000-nits high brightness rackmount LCD monitor with VGA + DVI-D video input and 100/240VAC power input in an 8U high rackmount enclosure.
Key Features
- ✓8U 19" high brightness rack LCD monitor
- ✓1000-nits high brightness display
- ✓Supports 1280 x 1024 native resolution
- ✓Front OSD (on-screen display) function
- ✓VGA + DVI-D video input
- ✓Option for HDMI, BNC, MCS, Audio, Speaker, or 3G-SDI
- ✓Option for Resistive or Projected Capacitive touch screen
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input
The RM6193 is a 19" high brightness rack LCD monitor designed for outdoor applications or environments with high ambient lighting. The LCD panel supports 1280 x 1024 native resolution, 1000-nits high brightness, 1000:1 contrast ratio, and 16.7 million colors. The monitor features VGA + DVI-D video input, easy access to front OSD functions, and an 8U high rack enclosure designed for standard 19" wide rack cabinets. Options are available for touch screen technology, additional video input modules, and DC power input.
| Construction | Heavy-duty steel |
| LCD panel | Size: 19 inch Native Resolution: 1280 x 1024 Brightness (cd/m²): 1000 Contrast Ratio (typ) : 1000:1 Colors: 16.7 M Viewing Angle (H/V): 170° x 160° Response Time (ms): 5 Dot Pitch (mm): 0.294 Display Area (mm): 376.32H x 270.33V MTBF (hrs): 30,000 Surface Treatment: Haze 25%, Hard-coating Surface Hardness: 3H Backlight Type: LED |
| Video Input | Standard: VGA + DVI-D video input Option: HDMI, BNC, MCS, Audio, Speaker, or 3G-SDI input |
| Touch Screen (Option) | Resistive 1-pt touch screen - USB port Projected Capacitive 1-pt / 10-pt touch screen - USB port * Dimension will be changed to 9U after integration |
| Front panel control | Power on/off switch OSD membrane switch |
| Connector | 1 x VGA + 1 DVI-D |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50/60Hz Power Consumption: Max. 39 Watt, Standby 2 Watt Option for 12V / 24V / 48 / 125V DC power input |
| Mounting | 8U high rackmount for a standard 19" wide rackmount cabinet |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11 ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA |
| Weight | 12.5 lb / 5.7 kg |
| Dimension | Product: 18.9"(W) x 2.1"(D) x 14"(H) Packing: 21.2"(W) x 5.1"(D) x 20.8"(H) |
