RK1250B

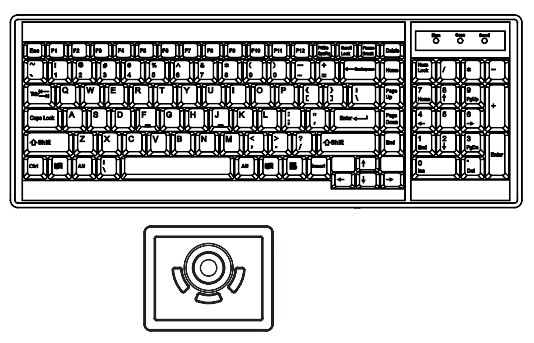

Rackmount keyboard drawer with a 104-key keyboard, 19mm trackball, and 17-key numeric keypad in a 1U high 15.7-inch short-depth rackmount drawer.
Key Features
- ✓1U rackmount keyboard drawer
- ✓104-key keyboard with trackball (USB port)
- ✓Option for SUN keyboard layout
- ✓17-key numeric keypad
- ✓One man installation design
- ✓Molded front panel with two-point lock
- ✓Adjustable rear mounting L-bracket
- ✓15.75" (400mm) short-depth rackmount design
Rackmount keyboard drawer with a 104-key keyboard with a trackball pointing device and 17-key numeric keypad in a 1U high 15.7" short-depth rackmount drawer. The 1U keyboard drawer features an adjustable rear mounting bracket and front mounting holes that allow you to easily mount the drawer into a standard 19" rackmount cabinet or server rack. Option for SUN keyboard layout.
| Construction | Sealed aluminum chassis Metal with the positive pole processing |
| Keyboard | Keys: 104-key keyboard Keyboard indicator: Num lock, Caps lock, Scroll lock Keypad: 17-key numeric keypad Interface: USB Interface Key Force: 55 ± 5g Traveling Distance: 3 ± 0.3mm Switch Life: > 10 million life cycle time Supporting layout: English (Standard) Option for English (UK), Germany, France, Spain, Italy, Japan, Korea |
| Keyboard Layout (Option) | Option for SUN keyboard layout |
| Trackball | 19mm trackball plug 3 house keys |
| Drawer | L-Bracket: 1 x pair of L-bracket with fastener screws included Keyboard Mounting Distance: 16.1 ~ 25.2 inch (410 ~ 640 mm) |
| Cable | Attached 6ft USB cable x 2 |
| Color | Black |
| Environmental | Operating Temperature: 0°C to 65°C Storage Temperature: -20°C to 60°C Humidity (Operating / Non-Operating): 20~90% / 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA Compliant |
| Weight | 18.9 lb / 8.6 kg |
| Dimension | 17.4"(W) x 15.7"(D) x 1.73"(H) |
